Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
Specifications
Brand Name :
BEST
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD14000-28000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
New
Tile type :
Colored Glaze Steel
Use :
roof and wall or any
Warranty :
PLC(imported Brand)
Description

Professional Galvanized Steel Floor Decking Sheet Metal Forming Equipment High Speed 10-15m/min

Main Machinery Components of Floor Decking Sheets Production Line

NO Name Quantity
1. Manual /Hydraulic Decoiler 1 set
2. Feeding and Embossing Device 1 set
3. Main Metal Rollforming Machine 1 set
4. Hydraulic Cutting Device 1 set
5. Electric PLC Control System 1 set
6. Runout Tables 1 set

Technical Specifications

1 Raw Material
1). Material Thickness: 0.8-1.2mm
2). Material Type: Galvanised Steel Coils
3). Material Width: 1200mm
4). Length Cutting Tolerance: ±2mm
2 Main Cold Roll Forming Machine
1). Machine basement: 350H steel welding structure
2). Guiding device: side sliding type
3). Structure: wall panel, thickness 18mm
4). Number of stations: 35 stations
5). Main shaft material: 45# steel, O.D.: 90mm, quenching and tempering treatment
6). Roller material: high grade 45# steel coated with chrome, quenching 58-62℃
7). Way of drive: by chains
8). Forming speed: 10-15m/min
9). Main motor power: 11KW x 2
10). Power supply: 380V/3Phase/50HZ or designed according buyer’s requirement
3 Hydraulic Cutter
1). Material of blade and mould: Cr12 mould steel with quenched treatment 60-62℃.
2). Cutting system: adopt advanced hydraulic cutting system
3). Cutting type: rolling action stop, then cutting.
4 Electric Control System
1). Screen display: Mitsubishi or Siemens touching screen;
2). PLC: Mitsubishi or Siemens;
3). Measure the length automatically;
4). Count the quantity automatically;
5). Length and quantity is controlled by computer, the machine will cut automatically according to the measured length.
6). It is easy to adjust the error of length by modification of one parameter.
5 Runout Tables
We are suppying 2 pcs of runout tables for free and auto stacker is also optional for sale.

Terms of Sales

Qutation Type FOB, CFR, CIF, C&F
Payment Method 30% paid by T/T as deposit; 70% paid by T/T before the shipment
Delivery Time 70 working days
Warranty One year from complete production line and 10 years for rollers
Spare Parts Supply Free loaded toagether with the machine

Technical Specifications

Coil Material Thickness 0.8-1.2mm
Coil width 1200mm
Yield Strength 235-350Mpa
Material Galvanized Steel Rolls, GI
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 508mm
O.D Max.1200mm
Coil weight Max. 5-10 Ton
Type Manual or Electric Hydraulic
Feeding Device Pinch feeding 1 set
Rollforming System Roll Forming Line Stations 15 sets
Straighten Device 1 set
Roller material No. 45 steel coated with chrome
Diameter of rolling shaft 85mm
Rolling shaft material High grade 45# steel
Drive type Chains transmission
Forming speed around 15m/min
Main power 11KW x 2
Automatic Cutting Cutting type Hydraulic Cutting
Cutting blades material Cr12Mov steel, HRC58-62
Length Measuring Automatic length measuring by encoder & PLC
Cutting Tolerance +/-2mm
Electric control box PLC Mitsubishi or Siemens
Frequency Inverter Mitsubishi or Siemens
Touch screen Mitsubishi or Siemens
Operation type Touching screen & Button
Hydraulic Station Hydraulic motor power 2.2KW
Function Supply power for auto cutter
Runout Tables Table type Unpowered (auto stacker available)
Function Support the finished floor decking panels

Technical Details

uncoiler
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min Loading capacity 5T
Inner diameter 470-530mm
Steel coil width

914, 1000, 1220, 1250 mm.

According to your actual drawing.
Working speed

0-15m/min

adjustable

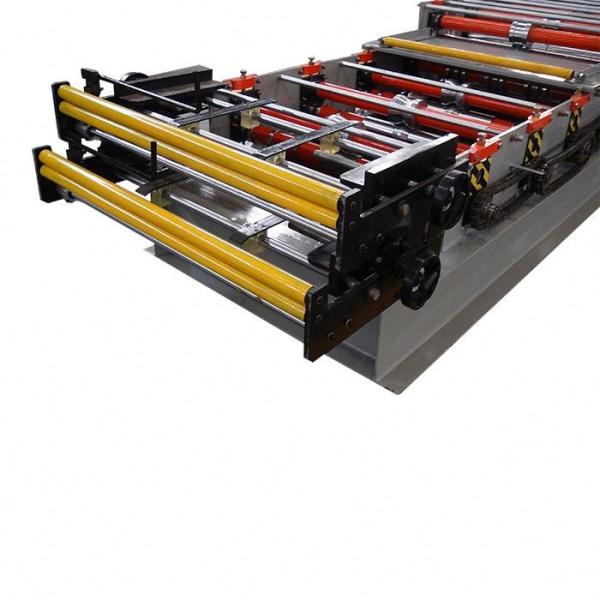

feeding table
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min It is used to control the width and position of the steel sheet

The sheet is guided into the machine with the correct position

to make sure the panel is neat and parallel.

mainframe
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min

Material

350 H steel

Feature

more table, no shaking

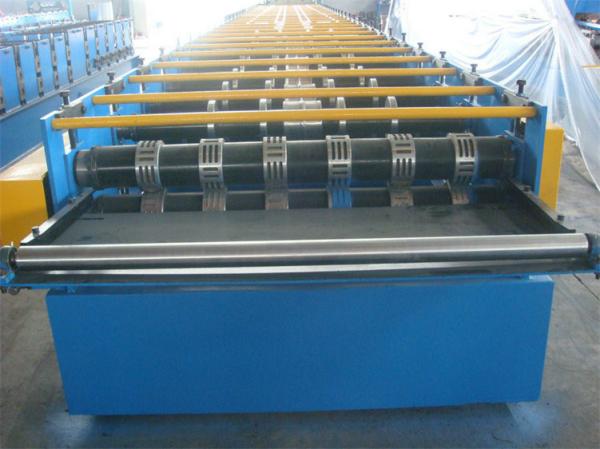

forming rollers

Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min

Material

High grade 45# steel.

Roller stations

11-16 stations.

According to your actual drawing

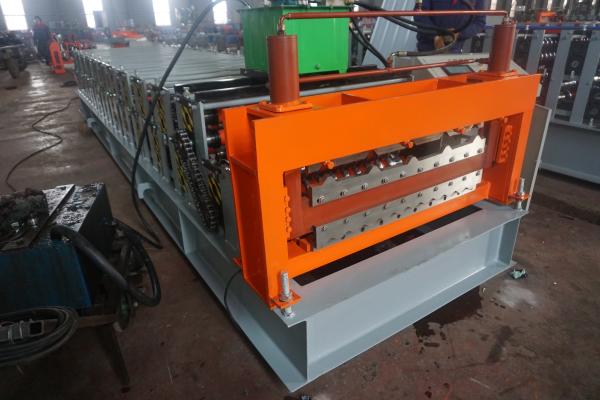

cutting system

Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min

Material of blade

Cr12MOV

much better than normal Cr12 material

Hydraulic power

3 KW

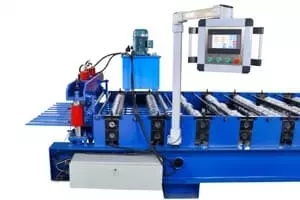

control cabinet
Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min

Suitable power

380V, 50Hz, 3phase

or according to your need.

Feature

The whole process is automatically controlled by the computer.

In this way, you can ensure accuracy and easy work.

Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min

Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min

Professional Galvanized Steel Floor Deck Roll Forming Machine High Speed 10-15m / Min
