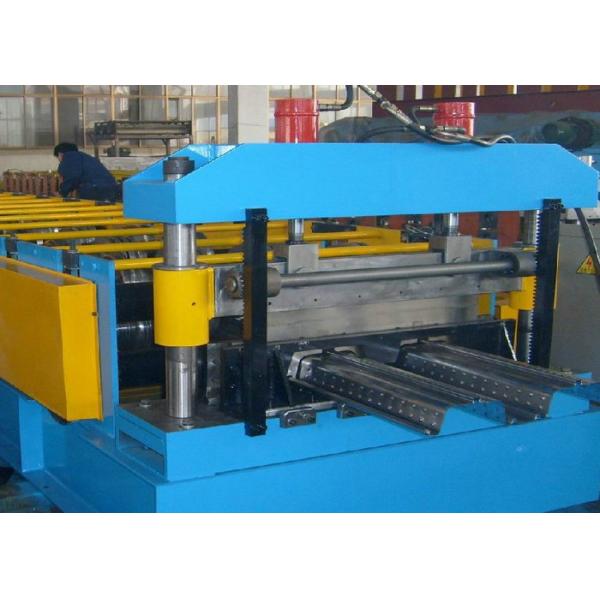

Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
Specifications
Brand Name :
CHBEST
Model Number :
XY51-342-1025
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Price :
$22500-$33800/set
Supply Ability :
10 sets/month
Delivery Time :
40-50 days
Packaging Details :
plastic film for naked machine
Product name :
Auto Cutting 1025 Decking Floor Sheet Roll Forming Machine PLC Control System
Machine dimention :
11.5mx1.4mx1.4m
Machine power :
7.5kw
Driven system :
Chain or gear box
Control system :
PLC
Cutting type :
Hydraulic
Warranty :
2 years
Description

Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump

Working flow

Decoiler----feeding----roll forming----pressing----cut to length----output table

Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Decoiler

(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 5000 kg

roll forming

Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.6-1.5mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming
Forming stations 20-38 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ90mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 22kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type

bearing sliding type
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type

Manual

Auto(option)
Length 1.5m-2m 6m or 12m

PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump

Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump

Packing & Loading Photo

Auto Cutting 1025 Floor Deck Roll Forming Machine 7.5kw Power Hydraulic Pump
