Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Hydraulic Cutting Galvanized 1310mm Glazed Tile Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
XY1310
Certification :
CE/BV/SGS
Place of Origin :
China Hebei
MOQ :
1 set
Price :
USD+7000+SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets/month
Delivery Time :
20-30 days
Packaging Details :
plastic film for naked machine
Product name :
Hydraulic Cutting Galvanized Material Metal 1310mm Glazed Tile Forming Machine
Color :
Blue or as your requirement
Machine dimention :
6.5mx1.4mx1.4m
Machine power :
3kw+4kw
Warranty :
2 years
Control system :
PLC
Description

Hydraulic Cutting Galvanized Material Metal 1310mm Glazed Tile Forming Machine

Decoiler

Type Manual type(standard)
Width 1250mm
Capacity Max 5 tons
Inner diameter φ508-610mm
Outer diameter φ1500mm

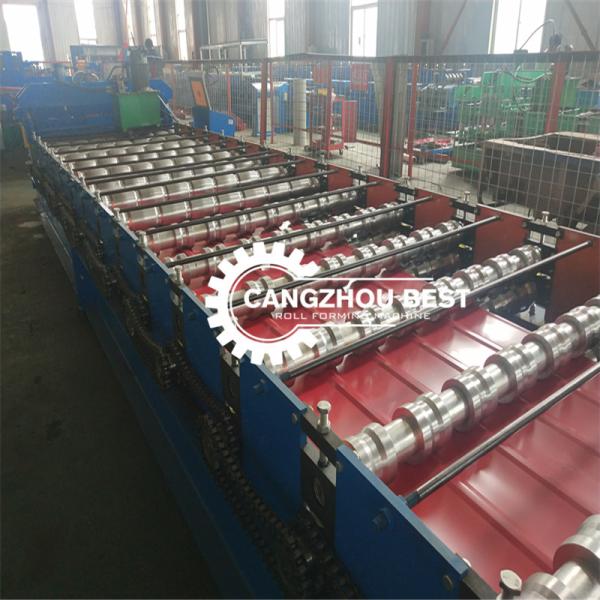

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming

Forming stations 13-22 stations(according to the profiles)

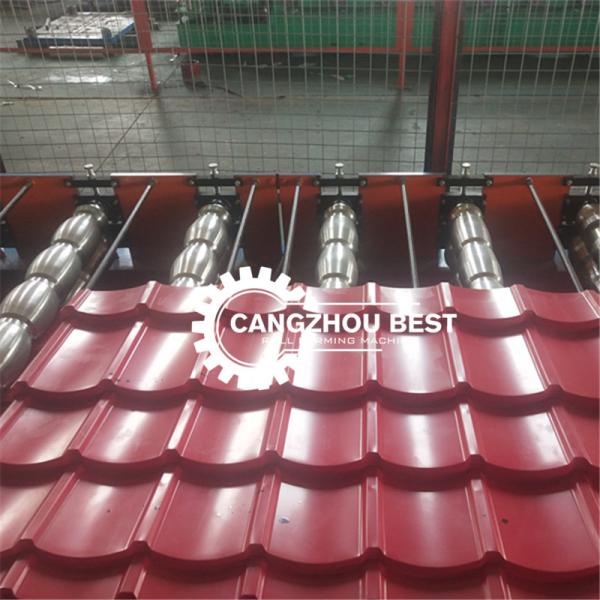

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Pressing and cutting device

Type

bearing sliding type
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type

Manual


Auto(option)
Length 1.5m-2m 6m or 12m

Hydraulic Pump

Oil type: 46# hydraulic oil
Pump brand: China brand

Output Table

No power type
Length: 2m

Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.

After-sales service

Technical Support

Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

Spare Parts

Promptly providing spare parts and wearing parts.

Upgrade

Improve technology and upgrade of equipments.
