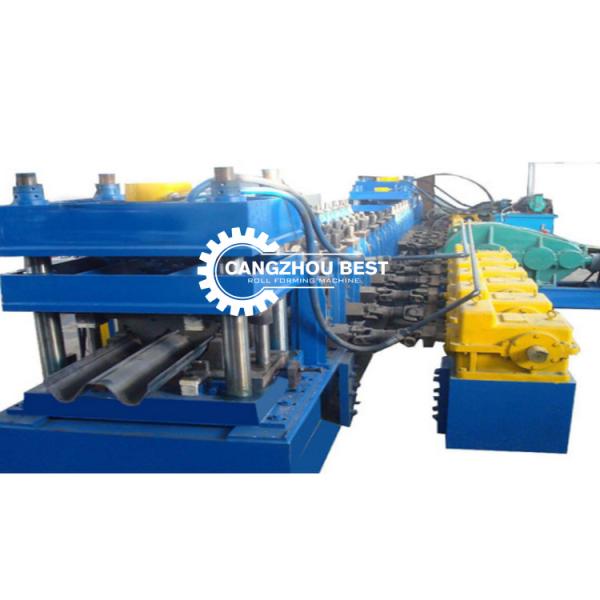

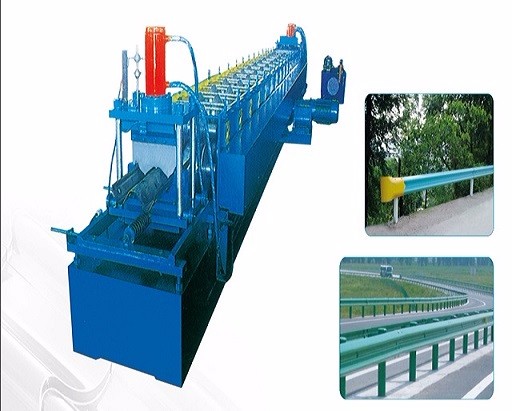

PPGI 483mm 2.5mm Highway Guardrail Making Machine
PPGI 483mm 2.5mm Highway Guardrail Making Machine
PPGI 483mm 2.5mm Highway Guardrail Making Machine
PPGI 483mm 2.5mm Highway Guardrail Making Machine
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$30000---60000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
2 Years
Weight :
15 T
Condition :
New
Color :
Customers Requirement
Use :
Highway guardrail steel sheet
Description
Product Description
Suitable Material:
PPGI,PPGL,PI
Coil Width:
483mm or your need
Coil Thickness:
2.5-4mm
Profile Size:
customized
Color:
blue,grey,or your need
PPGI 483mm 2.5mm Highway Guardrail Making Machine
Machine Component

5T Manual Decoiler

Dimensions: 1500*1000*800
Width: 1000mm
Inner Diameter: 450-508mm
Capacity: 5T


We also have Hydraulic type for 5T to 10 T .

Feeding Device

Width: 800 mm Adjustable


It helps to keep products neat, parallel and everything is uniformity. Please refer to the equipment instruction to know the function of locate angle iron.

Roll Former

Roller Station: 18 rows
Roller/Shaft Material: No.45 steel, roller surface polishing , with heat treatment
Shaft diameter :90mm
Motor Power: 30KW
Capacity: 8-12m/min
Volume:16.5*0.8*1.3m
Voltage: 380V 50Hz 3Phase , or customized

Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Power: 11kw

Hydraulic oil: 46#

PLC control System

PLC Brand : Delta or Customized
Language: English,Spanish,Russian, Chinese
Control panel: Button or Touch Sreen

HMI : Easy to operate

Hydraulic Cutting

Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 11KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece

Output Table


Size: 3*1*0.8m
Quantity: 2 sets



We also have Auto stacker for automatic production line .

Packing & Delivery
Packing List
Size
16.5*0.8*1.4m
Width
about 7 tons
Packing details
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.

PPGI 483mm 2.5mm Highway Guardrail Making Machine
