Working Flow:

Decoiler→Flating→Feeding & punching→Forming→Cut to length→Colletion(finish goods)

Main Of Machine Parts:

1. Manual Uncoiler:
Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity: 5T

2. Automatic Steel Highway Guardrail Roll Forming Machine Feeding Table:
Put the raw material through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

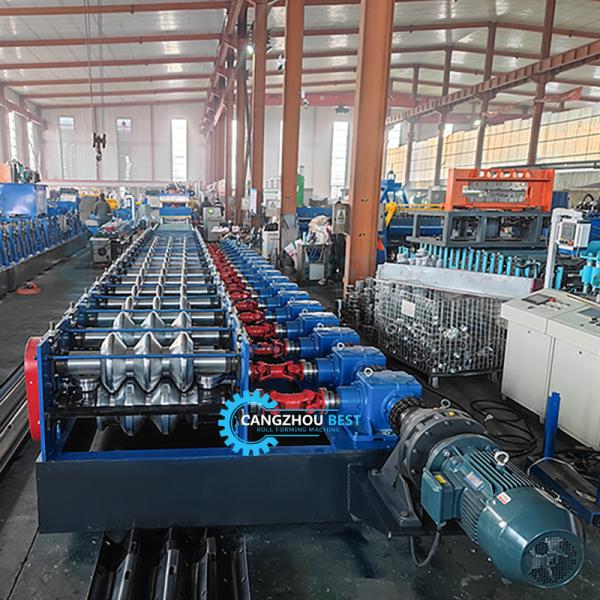

3. Automatic Steel Highway Guardrail Roll Forming Machine Main Roll Forming Machine:
Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped

Main motor power: 37kw

Station: adopt cast iron HT50
Decelerating motor: BWD14-43-37KW, made in Shanghai or Changzhou
Drive: gimbal driving,120*500

Main shaft dia: ￠100mm material: 45﹟forge steel
Roller material: GCR15 quenched 58°-62°,chromed
Roll station:15stations
Roller thickness: 2-3mm
Timing by transducer:5m--20m/min(not including punching)
Transducer: Panasonic made in Japan. 380V 50HZ
Computer: PLC
Computer operating panel: touching screen

4. Automatic Steel Highway Guardrail Roll Forming Machine Hydraulic System:
Hydraulic oil:40#.

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

5. Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

Our service:

We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $100/days.
