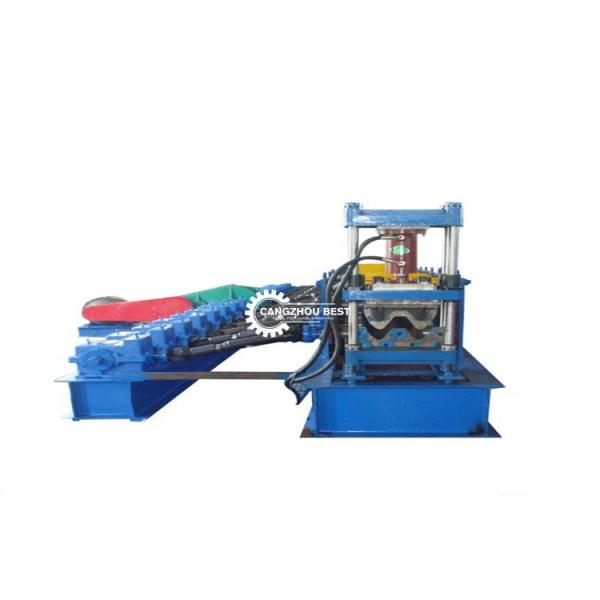

6mm Gear Box Driven 2&3 Waves Saftey Highway Guardrail Roll Forming Machine

Profile drawing for reference:

Machine details:

Decoiler Steel coil width ( Max ): from 1000 mm to 1250 mm; Internal diameter of coil: variable, from 480 mm to 530 mm Maximal out diameter: 2000mm Maximum coil weight: 5000 Kgs;
Punching using hydraulic punching oil cylinder dia: DIA 140mm working pressure: 20mpa mould material: Cr12 quenched 58°-62° hydraulic power: 7.5kw size: 1.5m long*1.1m wide*1.2m high
Forming section main motor power: 30kw Decelerating motor: BWD14-43-37kw, made in Shanghai or Changzhou drive: gearbox driving with shafts The thickness of the sheet: 2-3 mm main shaft dia: DIA 100mm material: number 45 forge steel roller material: GCR15 quenched 58°-62°,chromed roll station:17 stations, guide pillar type. Timing by transducer:5m--20m/min(not including punching) Transducer: Yaskawa made in Japan. 380V 50HZ
Cutting Cutting: hydraulic cut knife material: Cr12,quenched 58°-62° oil cylinder dia: 150mm working pressure: 30mpa working journey: 80mm
Hydraulic 1. Hydraulic station power: 11kw 2. Hydraulic pressure: 12-20Mpa
Control carbinet (1) Voltage, Frequency, Phase: 380V, 50Hz, 3Phase( It depends on the buyer’s requirement.) (2) Automatic length measurement: (3) Automatic quantity measurement (4) Computer used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved (5) Length inaccuracy can be amended easily. (6) Control panel: Button-type switch and touch screen (7) Unit of length: millimeter (switched on the control panel) (8) Language: Chinese and English
Run out table Jointed by 60mm*40mm tube size: 1.5mlong*0.8mwide*0.6-1mhigh Quantity: 2 units

Features:

1. This production line can be automatically run by inputting some data (like products length and batches) to the PLC control system.
2. Very strong base frame is configured to avoid vibration.
3. All the rollers have been processed by CNC lathe and polished on the surface to guarantee the accuracy.
4. The rollers have gone through hardened treatment to guarantee long lifespan.
5. We can also design the crash barrier roll forming machine according to customer’s requirement.

FAQ:

Q1. What's your delivery time?
A1: Depending on the type of machine, duration of 20 days to 60 days from the date of order.

Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications,using top brand components.

Q4. What will you do if the machine is broken?
A4: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes,please tell me the destination port or address.we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

Inquiry me get more details and video!
