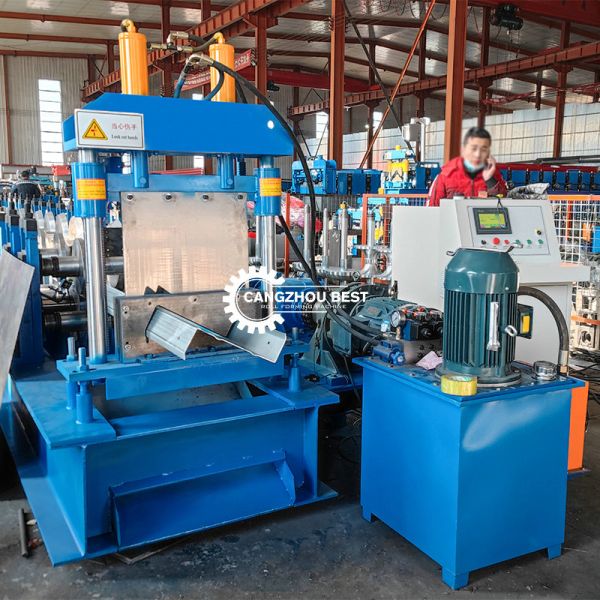

Galvanized Steel Quick Change Size Z Purlin Roll Forming Machine/Cold Roll Forming Machine

Working Flow

Decoiler -----guiding -------leveling -------roll forming

-----Punching---------cut to length---------output table

Machine Component

Decoiler

Leveling Device

Thickness: 1-3 mm
Rollers for Leveling: 5 rollers

Roll Forming Machine

Material Thickness: Galvanized steel 1-3.0mm

Rollers: 15Groups
Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 11kw
Rolling Speed: 8-10 m / min

Driven type: 1.5＂Chain

Material for shaft: #45 steel after treatment

Diameter of shaft: 70mm

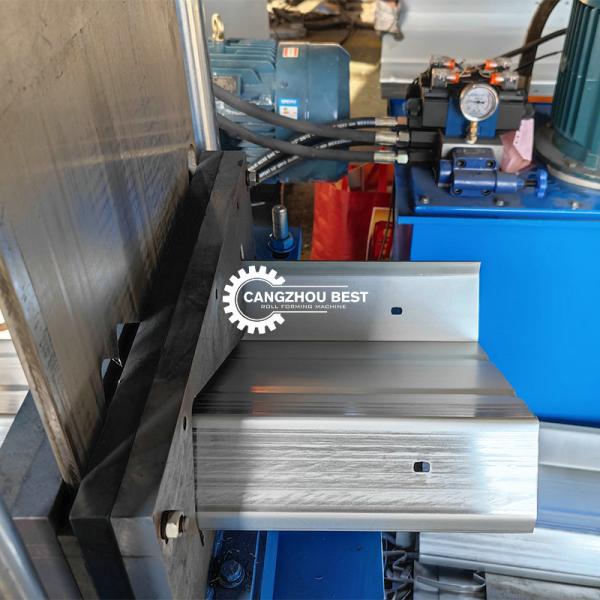

Punching And Cutting Device

Type: hydraulic cutting
Power:3kw
Material for Cut-Off Modular:Cr12 steel after treatment

Material for punching die: Cr12 steel

PLC Control System

Hydraulic Pump

Output Table

No power type
Length: 2m

Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Other Machine

roof sheet machine, roof tile machine, c z purlin machine, double layer machine, highway guardrail machine, cable tray machine, water tube machine, ridge cap machine, water gutter machine, light steel keel machine, decking sheet machine, roller shutter door machine and so on.
