Steel Profile Channel C Shape Metal Roll Forming Machine Hydraulic Cutting

Main parts in detailes

(1) Manual Uncoiler

Max.Capacity: 5T

(2) Pre- Cutting Device& Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material: GCr12 with quenched treatment 60-62°C

(3) Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW

(4) Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Parameter

Our service:

1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take video for the customer and customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and pay salary everyday.

Featares:

a. The tile froming must use the high number pulse input function, the high number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure accuracy.

b. The testing part of the tile forming machine includes: a pulse encoder for detecting the length of the colored steel tile, a press-type upper and lower stroke switch, a cutter upper and lower stroke switch, a press-type upper and lower operation button, a cutter upper and lower stroke button, an emergency stop switch , hydraulic start and stop switch and so on.

c. The implementation part of the forming machine has the inverter drive motor, the hydraulic station motor, the two hydraulic solenoid valves of the pressure type, and the two hydraulic solenoid valves of the cutter.

d, PLC with 14 inputs / 10 relay output, just meet the input and output requirements. With the text screen, you can complete parameter settings, alarm display, help information, production data display, and more.

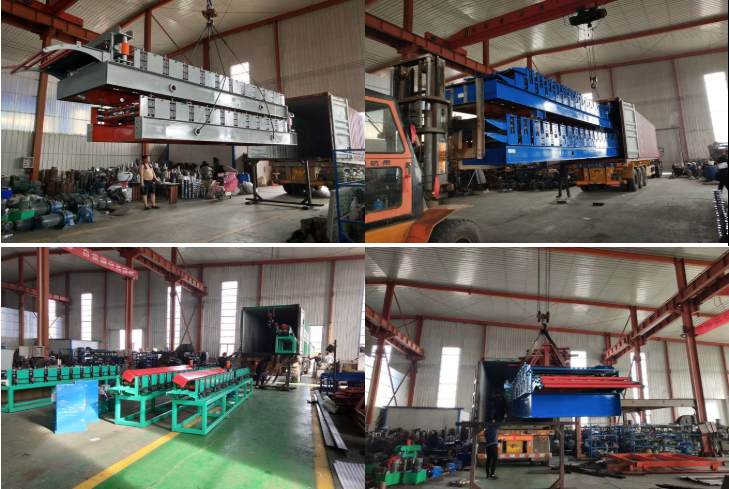

Packing and Loading:

1. One 40ft container for loading one set machine with manual decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in plastic tooling box;

4. All Components Fixed by steel wire with Container.
