Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Cold Rolled U Profile 2.2KW Channel Steel Sheet Making Machine
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD8000---15000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Color :
Customized
Weight :
Around 6 Tons
Working Type :
Automatic
Feature :
Strong Structure
Description

Cold Rolled U Profile Channel Sheet Manufacturing Machine with Automatic Cutting Equipment

Main Components List

No. Items Quantity
1 Coil Decoiler 1 set
2 Roll Former Machine Direction Guilder 1 set
Rolling System 1 set
Post-cutting Device 1 set
3 Supporting Tables for Finished U Shape Channel 2 sets
4 Hydraulic Station for Cutting Device 1 set
5 PLC Control Cabinet 1 set
6 Tools Box with Spare Parts 1 set

Technical Specifications of U Profiled Channel Making Machine

1) Decoiler
Decoiler type: manual or automatic (optional)
Capacity of decoiler: 3 tons
Inner diameter:508mm
Outer diameter:1200mm
2) Direction Guilding and Leveling Device
It used to feed and flatten the material before rollforming.
Structure of leveling device: 3 rollers on top and 4 rollers on bottom
3) Roll Forming System
Main motor power: 5.5KW
Forming speed: around 15m/min
Material of roller: No.45 steel coated with chrome, HRC55-60°
Roller Stations: 13 groups
Material of main rolling shaft: High grade No.45 steel after quenching treatment
Diameter of main shaft: ø72mm
Transmission system: chain
4) Hydraulic & Cutting
Cutting type: Hydraulic powered
Cutting material: Cr12 mould steel with quenching treatment
Hydraulic motor power: 2.2KW
5) Automatic Control System
Type: PLC frequency control system with touching screen
PLC Brand: Mitsubishi original from Japan
Encoder Brand: Omron
Length Error: ±2mm

Other Sales Terms

Packing Standard Packing for shipping: Equipment without packaging, but provide necessary transportation protection and rain proof measures.
Warranty two years
After-sale service

1. we will provide training and site installation guidance in the earlier stage until you can correctly operate and install our products.

2. The installation technicians (normally 2 people) shall install and debug the equipment. The purchaser should pay the round-trip ticket fees, accommodation and vise expense.

3. During the debugging period (from the day leave to the day back to China) the purchaser should pay the technician USD50 per day.

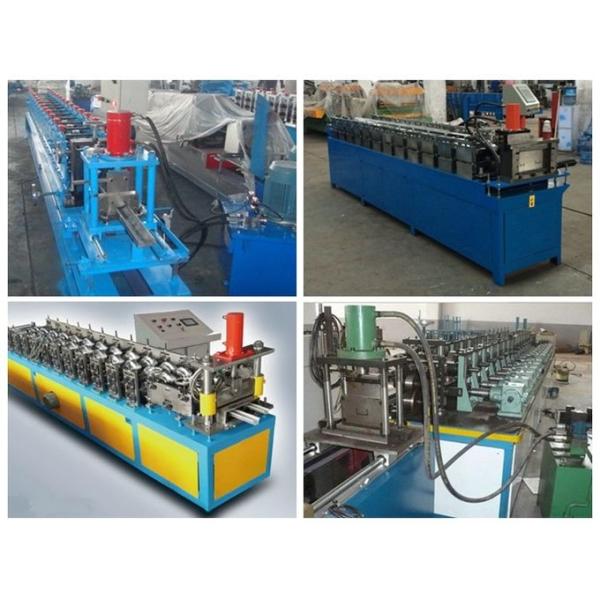

More Machinery Pictures for Reference
