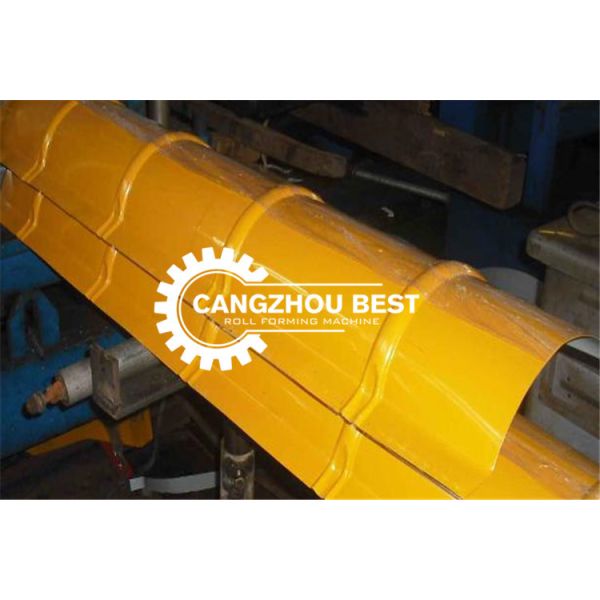

Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Specifications
Brand Name :
CHBEST
Model Number :
CHBEST-250
Certification :
CE/ISO
Place of Origin :
China, Hebei
MOQ :
1set
Price :
FOB
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Delivery Time :
35days
Packaging Details :
Standard
Name :
Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V
Color :
As your require
Material :
PPGI/GI
Warranty :
2 year
Power :
3kw
Shaft Material :
45# steel
Description

Metal Galvanized Color Steel Profile Ridge Cap Roll Forming Machine 380V

Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Hydraulic Pump 1set
PLC Control System 1set
Output Table 1set

Decoiler

Inner Diameter

 450-550mm

Out Diameter

 1200mm
Capacity 3000kgs
Type Hydraulic Or Manual

Roll Forming Machine

Rolled Material: PPGI and GI
Material Thickness: 0.4-0.5mm
Rollers: 12steps

Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃

Frame panel thickness: 14mm

Bottom frame: 35# H-section steel
Motor Power: 3 kw
Rolling Speed: 8-10 m / min

Driven type: 1.0＂Chain

Diameter of shaft: 70mm

Material for shaft: High grade No.45 steel after treatment Hardness for Heat Treatment: HRC55 – 60℃


Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Deta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand

Output Table

No power type
Length: 2m

Packing Detall

1

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2 Rollers were painted with oil and packed with plastic film.
3

Electrics devices be packed with wooden box.for Standard export packing.
4

All Components Fixed by steel wire with Container.

Motor Power 3Kw+3Kw Operating Voltage 380V
Production speed 8 - 10 m / min
transfer method Chain drive
Machine forming shaft

A total of 10 rows of large shaft:

250H steel, vertical plate 12mm
Adjust the set Using 45 # steel seamless steel pipe finishing
Wheel material 45 # steel hard chrome plated
Shaft material 45 # steel shaft diameter: 65mm solid shaft
Forming part Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast.
Numerical control system

PLC panel,

KEL-320 displa
counter The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP
Cut 3Kw pumping station, shear pressure type equipment
Pressure plate thickness 0.3—0.8mm
Random attachments

The use of a manual,

a gift rack
warranty period 12 months

Our Service

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you operation manual book and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

a. One year guarantee for whole machine.

b. 24 hours technical support by email or calling

c. If there is any problem found of the machine, we will repair it for free in one year.

Other Product

Roof sheet machine, c z purlin machine,roller shutter door machine, double layer machine, roof tile machine, ceiling drywall machine, cable tray machine,ridge cap machine, water tube machine, water gutter machine, decking sheet machine, sandwich panel machine, highway guardrail machine and so on.
