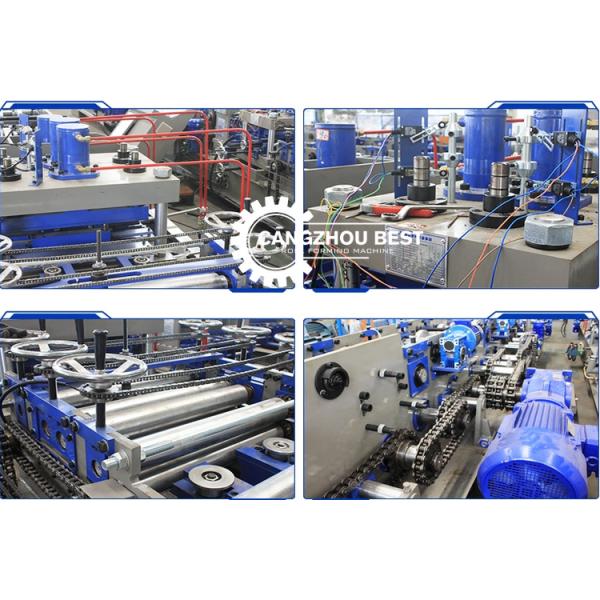

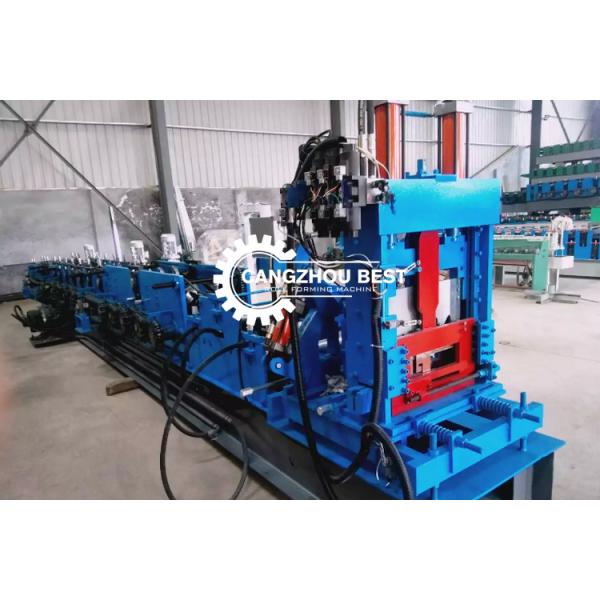

C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
C Z Channel Shaped Steel Roof Purlin Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD35000--40000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Type :
Steel Frame & Purlin Machine
Warranty :
Tile Forming Machine
After-sales service provided :
Engineers available to service machinery overseas
Production capacity :
10-25 m/min
Use :
C&Z
Description

2020 New Type C Z Channel Shaped Steel Roof Purlin Roll Forming Machinery

Technical compents

1)Decoiler

De-coiler Type:Hydraulicauto de-coiler

Weight capacity: Max 3.0T

2) Guiding

Guiding device is used to guide and fasten the raw material raw material into roll forming station steadily.

3) Rolling Forming System

Speed of forming: 35m/min

Roller stands : 15rolling stands.

4) Shaft & Frame

Shafts of rollers are tooled by grinding machine for two times to ensure the precisionof final product.

5) Bearing

NTN brand from Japan.


6)Machine Frame

The frame of machine are designed as square tube shape and thickness of frame is 30mm in order to make sure the machine is capable to bear all accessories of this machine.

7) Flare control rollers

Flare device is made of two group rollers with manual adjusting device.

8)Changing sizes: Full-automatic

Machine is able to change purlin size within 1 minutes.

9)Hydraulic Punching

All punching dies are made from Cr12. Driven by hydraulic station.Holes locations are able to set by PC panel.

Suitable to process Glazed Steel Coil
Width of the coil 300mm
Rollers 13rows
Dimensions About 9*1.9*1.3m
Power 20kw
Thickness of the plate 1.5-3mm
Productivity 5--10m/min
Diameter of the roller φ80mm
Weight About 7T
Voltage 380V 50Hz
Uncoiler one setUnpowered rack
Feeding platform one set
Rolling material

Gcr15

Rolling galvanization thickness

 0.05 mm
Shearing machine one set
Material of the cutting blade Cr12
Hydraulic system one set
PLC one set
Processing precision Processing precision

C Z Channel Shaped Steel Roof Purlin Roll Forming MachineC Z Channel Shaped Steel Roof Purlin Roll Forming Machine
