1. Touch screen control equipment, easy to use

2. The surface finish of the production profile is good. The galvanized plate does

not hurt the zinc, the color coat does not drop the paint, and the shape can

be highly matched the design drawing at 1:1.

3. Mechanical equipment are sturdy and durable, less failure, and low

maintenance costs.

4. Low waste rate of profile production, Save production cost.

This equipment is used for producing door frame, window rail support, storage rack, drawer slider, light steel keel, pipe,highway guardrail and so on.

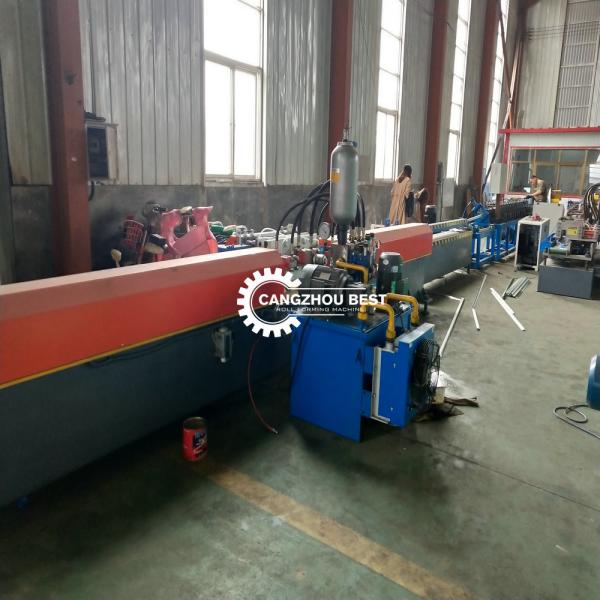

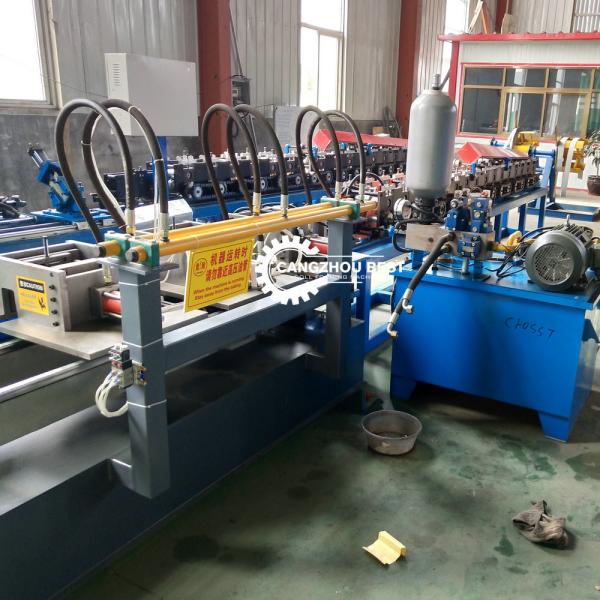

The whole production line consists of a material-putting rack, forming main machine and hydraulic set-length punching-cutting machine. Its shearing involves no waste,not producing shearing waste and saving the cost of material,with high production efficiency.

1).Material coil inner diameter: 450mm-550mm

2).Max coil width:300mm

3).Carrying capacity: 1.5T

1)Shaft material:high grade No.45 steel after treatment

2)Out diameter is 50 mm

3)Roller material: Cr12 polished and coated with chrome HRC55-60°

4)Forming speed:30m/min

5)Main motor power:5.5 kw

6)Roller station:10-12stations

7)Voltage:380v,50Hz,3 phase

8)Main frame structure: memorial arch structure

9)Control device:automatic cumputer control ,by PLC,operate easily

10)Cutting device: hydraulic tracking cutting(you can also request to add a servomotor,

the production speed can be reached 40-60m/min)

11)Transmission: gear drive

1). material of blade: Cr12 mould steel with quenched treatment 55-60°C

2). cutting system: adopt advanced hydraulic drive, after forming automatic

cut, no distort, no wasting , high safe factor.(main motor stop cutting)

Type: PLC Frequency Control System with touch screen

Length Error: ±2mm

(about the electrical apparatus element ,customers also can specify the brand)

It is simple and used to load finished product.

Length:6m

• Max width 300mm
• Inner diameter -460-510mm
• Max loading capacity 1000kg
• Manual operating type manual expansion to tighten the coil
• Break down drive whole line stop while decoiler idle

• Forming Station 16 nos
• Forming Rollers material Cr12
• Forming Rollers hard treatment HRC 58-60
• Shaft of roller Diameter 40mm
• Shaft material 40Cr,heat treatment, refine grinded
• Machine frame: steel welding
• Main sidewall thickness 25mm
• Machine driven by universal joints via gearbox
• Roll forming motor 5.5kw with frequency inverter controller
• Gearbox RV worm gearbox

• Hydraulic pump stand 1 set
• Hydraulic Components taiwanese
• Hydraulic System discharging protection with wind cooler
• Edge cutting 2 sets both ends
• Middle joint hole punching 23sets/152.4mm
• Fire testing hole 2 sets both ends
• Mould standard SKD-11 Steel Japanese
• Mould frame&plate S45C
• Mould pin SKH-9 steel Japanese
• All mould treatment By slow-feeding Nc wire cutting

• Driven machinical Auto Head
• Operation Full automatic along with forming machine

• Frequency converter Silin ,Taiwanese
• PLC Fatek ,Taiwanese
• Touch screen weinview Taiwanese
• Profile length cutting forming machine stops then cut
• Operational controller: touch screen knob switch emg

Brake down and so on

(6)Power supplier 380V 50Hz 3phase
