PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine
Specifications
Brand Name :
CHBEST
Model Number :
CHBEST-810
Certification :
CE/ISO
Place of Origin :
China.Hebei
MOQ :
1set
Price :
USD+8000+SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
15sets/month
Delivery Time :
35days
Packaging Details :
Standard
Name :
Chain Driven Electric 3KW Power Metal Roofing Sheet Roof Roll Forming Machine Production Line
Material :
PPGI/GI
Color :
As your require
Shaft Material :
45# steel
Conreol System :
PLC
Warranty :
2 year
Description

Chain Driven Electric 3KW Power Metal Roofing Sheet Roof Roll Forming Machine Production Line

Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Control System 1set
Hydraulic Pump 1set
Output Table 1set

Decoiler

5T manual decoiler

Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.

Power: None;

Power of the open and closure of segments: Mechanical;

Power of rotation of segment: Pull by forming system;

Number of segment: 4pcs;

Range of segment expansion: 460 ~ 520mm;

Height of center of the mandrel: 0.65m;

Feeding speed: depend on the roll forming machine speed;

Main Parameter

Name Model/Name Quantity Technical Description
1. Decoiler system Arm type automatic decoiler (With ultrasonice control) 1set Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.
2. Main forming system Pre-shearing device 1set

1.Roller material:No.45 steel with surface hard chrome painted.

2. Roller shaft material: No.45

3. Roller inner supporting structure type: guide column

4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear

5.Cutting blade material Cr12 quenched treatment

6.Punching die material adopts No.45 steel with nitride treatment.
Feeding guide device 1set
Film covering device 1set

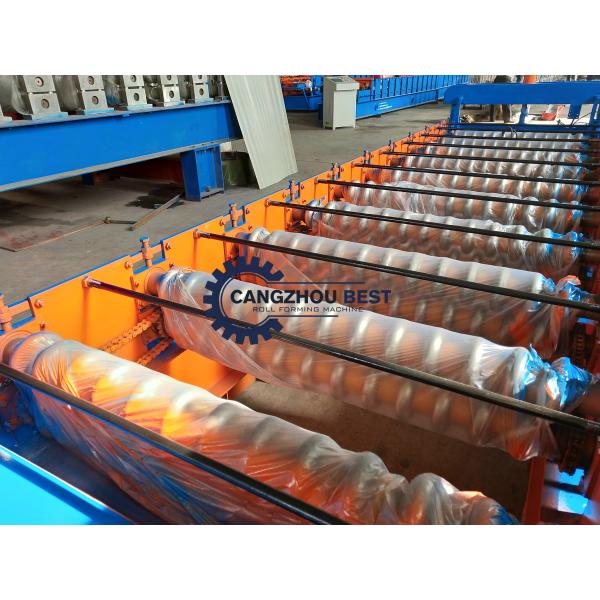

Roll forming system 1set
Pressing system 2set

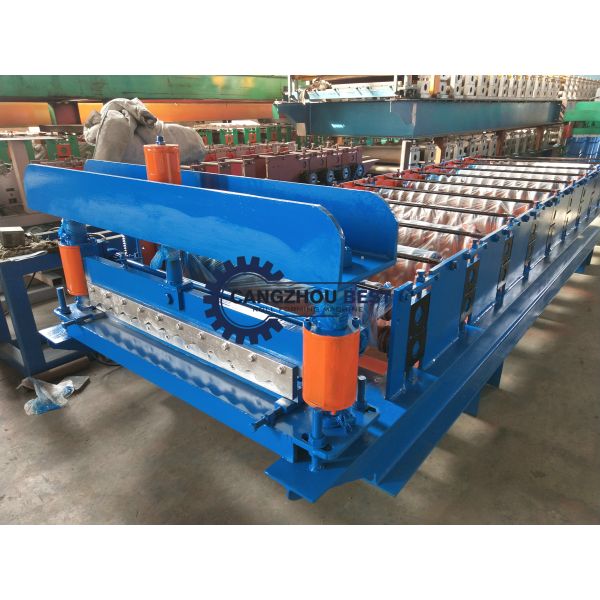

Post-cutting device 1set
Complete safety cover 1set
3. Output system Support table 2set For supporting the finished plate
4. Hydraulic system 1set Separated hydraulic station for the main machine and decoiler.
5. Electric control system 1set

1. PLC Control, encoder automatic cutting in length

2. Operation stage: Touch screen+ button

3. AC frequency for adjusting the speed

Hydraulic System:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

Output Table

No power type
Length: 2m

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

PPGI Chain Driven Electric 3KW Roofing Sheet Roll Forming Machine

Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.

3. electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.
