Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD6000--10000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Voltage :
380V 50Hz 3phases
Condition :
New
Color :
As for your respect
Control system :
PLC System
Thickness :
0.3-0.7mm
Shaft material :
High Grade No.45 Forged
Description

Professional Roof Ridge Cap Tile Making Machine Wth CE Certificate

roof ridge cap tile making machine

1. New type of cylindrical tile molding machine whit high forming speed, large output, and reliable performance. Using PLC (Mitsubishi technology) automatic control, hydraulic pneumatic, the speed of production can up to 6-9 pieces/ min, in a high yield, cost-effective priorities.

2. A new type of cylindrical molding machine, the underside of slid platform is made of semi-circular guide rail, compared with the square guide rail more stable and more wear-resistant. Main oil cylinder and four-cylinder overall orientation, not only to improve the stability of the equipment, but also to extend the life of the mold.

3.Through the filter press type molding, product with beautiful structure, variety kinds, high density, strong strength, accurate size to meet the needs of various types of buildings are concrete products of quality products.

4. A multi-purpose machine, by replacing the mold, can produce various types main tile and matching tiles.

Technical Detail

A Sheet Specifications

1
Coil Type
PPGI GI
2
Width
500mm
3
Thickness
0.3-0.8mm
4
Yield stress
Q235
5
Effective
312mm

B Components Details

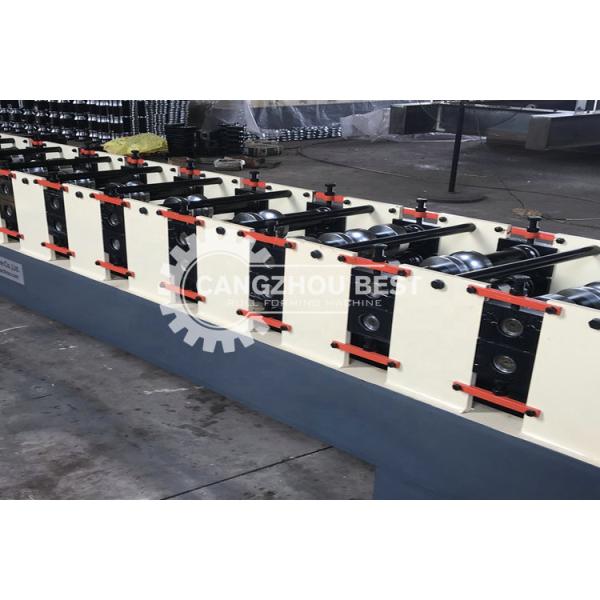

Roller Material
High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame
350#steel.More stable and no shaking
Middle Plate
16mm. We use thicker plates to ensure stability of our products.
Forming Steps
15, according to the drawing.
Shaft Material
Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning,
high rigidity, hard to deform.
Cutting Blade Material
Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power
380V, 50 Hz, 3 phase or according to your need.
Screen
7 inch touch screen, easy to operate.
PLC
Delta DVP 14ES
well-adapted to various conditions, such as moisture,
electromagnetic disturbance.
Frequency Converter
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
Length
Measurement Device
Omron, made in Japan.
It features with high accuracy and stability.

Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate

Professional Roof Ridge Cap Roll Forming Machine Wth CE Certificate
