W Beam Steel 3.5mm Crash Barrier Roll Forming Machine
W Beam Steel 3.5mm Crash Barrier Roll Forming Machine
W Beam Steel 3.5mm Crash Barrier Roll Forming Machine
W Beam Steel 3.5mm Crash Barrier Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$30000---60000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Weight :
15 T
Voltage :
380V.50HZ.3Phase
Condition :
New
Product name :
HIghway guardrail forming machine
Description

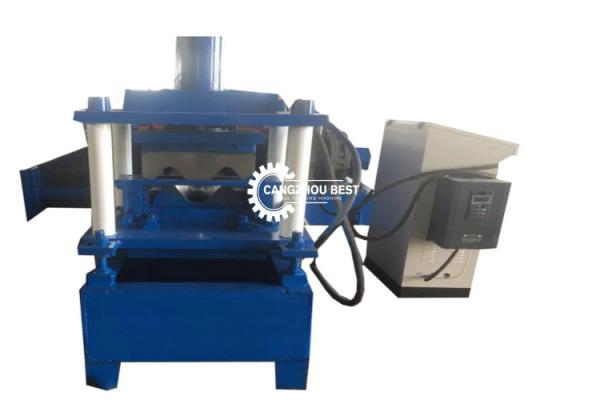

1.Photoes Of Machine

W Beam Steel Crash Barrier Board Making Roll Forming Machine for Highway Road

Panel profiles:

2. Parameters of guardrail machine :

1 Model No. Two waves highway roll forming machine
2 Max coil thickness 3.5mm
3 Coli material Steel or other
4 The bearing capacity of manual decoiler 5 tons
5 shaft material 45#steel
6 Out diameter 100mm
7 numbers of forming steps 20 stations
8 transmission Differential gear transmission
9 Forming speed 10-15m/min
9 main motor power 45kw
10 voltage 380V50HZ Three-phase or you need
11 dimension 20.5*1.2*1.5m
12 cutting Hydraulic cutting
13 Cutting power 13.5kw
14 blade material Cr12 steel with quenched treated 60-62°c
15 control system PLC(Delta)
16 length tolerance ±2mm
17 spare parts

easy emaged parts:conk 2pcs,

fuse-link 4pcs

rubber mat: 1 pcs

bolt spanner: 1 pcs
18

The whole line including: Hydraulic decoiler, roll forming machine, cutting part

PLC control system, run-out table.

3. Components of W Beam Steel Crash Barrier Board Making Roll Forming Machine for Highway Road :

No. Name Unit Qty
1 decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1

4. The main components of highway guardrail Crash Barrier roll forming machine:



(1) Double head Hydraulic Decoiler

(2) Roll-Forming M/C:
Steps: 17 steps Roller Material: CR15
Voltage: 3phase/80V/50-60Hz. Line speed: 10-12m/min;
Rolling chromium thickness: 0.05 mm

(3)Punching device

(4) Cutting Mechanism

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment: One set of cutting tool, one hydraulic tank, one cutter machine.
Stop to cut, Post cut cutting length tolerance: ± 2mm
Cutting tool material: VR12MOV quenching HRC58-62

(6)Computer control cabinet:

It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: Automatic and manual one.

(7)Fully auto curving machine for crash barrier/highway guardrail:


5. Working Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting

→Products receiving

Certifications

Our Services

A. One-Years product warranty.

B. Training and installation available.

C. The technical support for the whole life.
