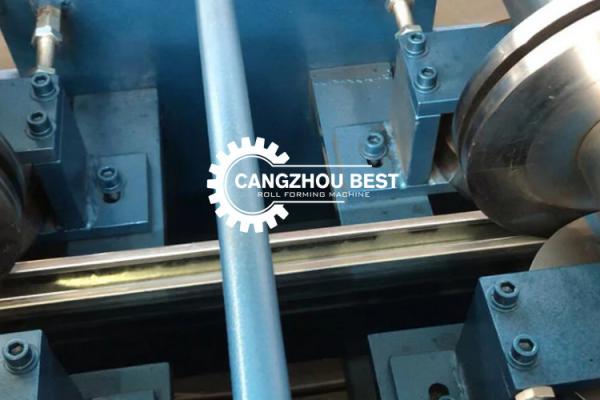

1.6mm PLC Metal Stud And Track Roll Forming Machine
1.6mm PLC Metal Stud And Track Roll Forming Machine
1.6mm PLC Metal Stud And Track Roll Forming Machine
1.6mm PLC Metal Stud And Track Roll Forming Machine
Specifications
Brand Name :
BEST
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$20000---30000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Condition :
New
Type :
Tile Forming Machine
Tile Type :
Colored Glaze Steel
Voltage :
380V 50Hz 3phases
Warranty :
1 Year
Description

Main Features

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.


—————— working flow ——————

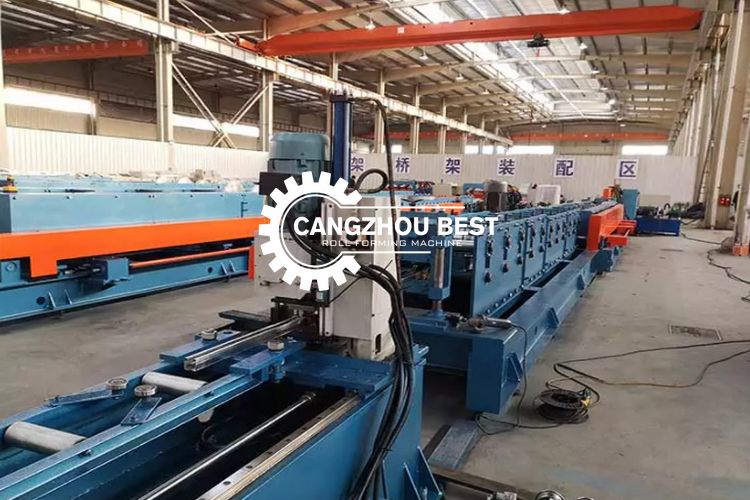

Light gauge steel stud and track roll forming machine production line

3.Fully Automatic Control System with PLC.


4.Easy operation: Key in the length and quantity on the control panel.


5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.


6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.


7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine.

1.Processing Material PPGI,GI
2.Processing Thickness(mm) 0.5-1.6mm
3.Material of Rollers 45# steel, with hard chrome coated
4.Diameter of Shaft 40mm
5.Production Speed 0-25m/min
6.Roller Driven Gear Transmission
7.Cutting Model Hydraulic Profile Cutting
8.Length Measurement Encoder
9.Control Style PLC
10.Operation Model Button + Touch Screen

Technical parameter of product line:

1. Applied plank stuff: color armor plate

2. Applied slab thickness: 0.3-1.0mm

3. Charge in width: 1000mm

4. Line speed: 0-14m/min

5. Rolling rows: 16rows

6. Rolling diameter: 70mm

7. Dimensions: 8.5m*1.5m*1.6m

8. Weight: 5t

9. Power: 4kw+3kw

Equipment parts

1. Steel strip supporting frame

2. Feeding platform

3. Automatic shearing system

4. Hydraulic system

5. Steel strip unfolding system

6. Computer control system (imported computer)

7. High-precision automatic counter

Coil Material Type Galvanized Steel Sheet
Thick 0.4-0.6mm
Uncoiler (manual/automatic) Weight Capacity 3T
Inner Diameter 460-520mm
Outside Diameter 1400mm
Coil width Max 600mm
Feeding and Pinch rollers one pair, up and down
straightening device Straightening rollers up three, down four
Diameter of rollers 75mm
Roll Former Frame type single station
Forming Roller stand about 14 Groups
Shaft material High grade 45# steel,
Heated and quenched HRC55-60°
Shaft diameter 50mm
Roller material GCr15
Drive Type By gear
Forming Speed 40-45m/Min
Motor 5.5KW reducer with
requency control

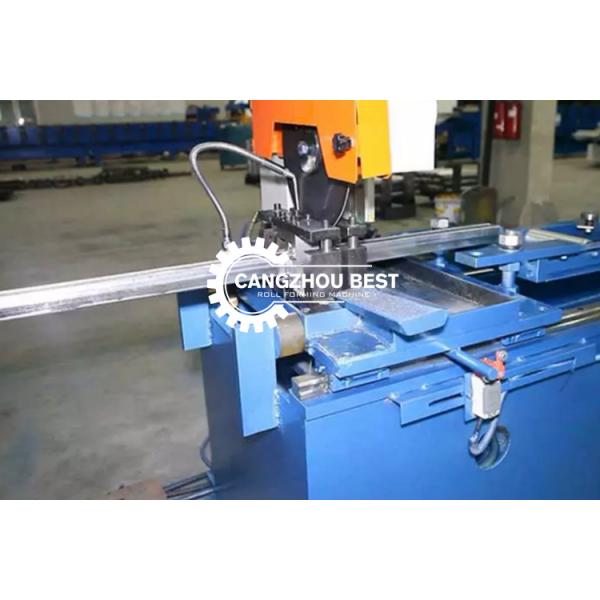

Cutting Type After-cutting, hydraulic
Hydraulic cutter Material of mould Cr12
With quenching treatment55-60°
Cutting tolerance 10M+/- 2.0 mm
Feature no distort, no wasting , high safe
factor.(main motor stop cutting)
PLC cabinet PLC XINJIE
Length Controller Encoder
Operation Touch Screen
Transducer Delta
Hydraulic station Hydraulic station power 4 KW*2
Hydraulic pressure 15 Mpa
Runout Table Non-power type 2 pcs
