Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Specifications
Brand Name :
CHBEST
Model Number :
YX-500
Certification :
CE, BV, SGS
Place of Origin :
Hebei,China
MOQ :
1set
Price :
USD6500-25500/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
20GP/40GP container
Name :
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
Production Capacity :
8-12m/min
Voltage :
380v or Customized
Station quantity :
6-12 groups
Steel Thickness :
0.2-0.8mm
Color :
As your request
Customized :
Yes
Tolerance :
+- 0.5 mm
Description

Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet

1. Advantage of stand seam roofing

Water-proof !!!

strong yield strength !!!

Anti-heavy weather !!!

Environment situation is more and more severe recent years. Roofings face more challenge,

such as it will leak in rainy days and be destory by strong wind.

To solve these problems, stand seam roofingie is popular and welcomed by many customers.

2. Details:

1) Decoiler

Inner-diameter 480-530mm
Max.diameter 1500mm
Capability 5 tons

2) Forming

Main motor power

3 KW

Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase, ( According to customer’s require )
Roll station 12 stations
Roller material SAE1045, hardness and chrome plated surface
Shaft diameter 70 mm
Machine roll forming speed 12-15 m/min
Transmission by chain

3) Pre-cutting

Hydraulic power Hydraulic power
Hydraulic working pressure 10-12 Mpa
Cutting after forming Cut the sheet after roll forming to required length
Material of blade Cr12 with heat treatment 58-60°2 sets cutter
Length measuring Automatic encoder length measuring, brand: Omron

4) Hydraulic station

Hydraulic power 5.5kW
Working pressure 12Mpa adjustable
Hydraulic oil 46 # hydraulic oil

5) Control carbinet

Operating system language English and Chinese
PLC brand PLC brand
Touch screen Taiwan Weinview

6) Output table

Length 2m
No power

3. Packing and Loading:

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded in one 20’ container.

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

4. Our advantage:

a. We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.

b. Customers’design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

c. Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

d. Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service

e. Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.

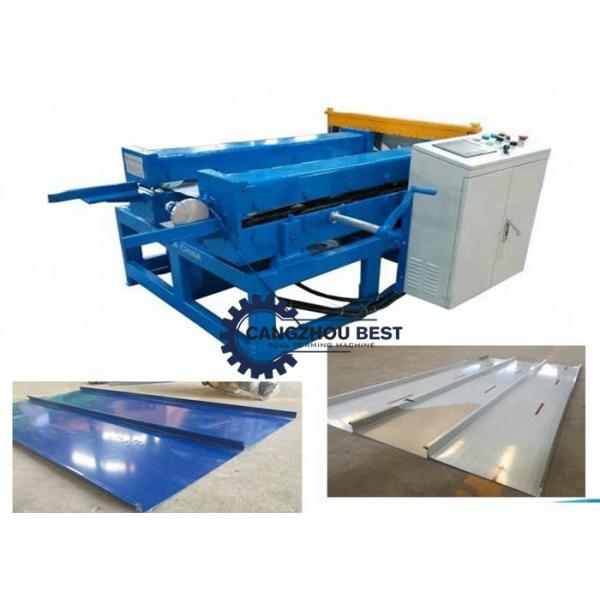

5. Machine photos:
Portable Movable Snap Lock Roofing Roll Forming Machine For Standing Seam Sheet
