Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Specifications
Brand Name :
CHBEST
Model Number :
YX-70
Certification :
CE,BV,SGS
Place of Origin :
China
MOQ :
1 set
Price :
USD9500-USD25500/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets/month
Delivery Time :
5-60days
Packaging Details :
20GP/40GP container
Name :
Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
Brand :
CHBEST
Yield strength :
235-400Mpa
Color :
Choose
Motor brand :
China Famous Brand
Roller material :
Cr12 Steel Quenched
Condition :
New
Raw material :
Galvanized
Thickness :
0.3-1.0mm
Side wall thickness :
20mm
Description

Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes

1. Machine Profile:
Steel roller shutter door roll forming machine consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system and control system. The roller shutter slat which made by this machine has neat external appearance, even ripples, high utilization and strong strength.

2. Machine parameters:

If you have specific requirements, that's no problem,We can meet all your needs.

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness:Max 1.2mm

(3) Feeding width:as design

(4) Main motor power: 4kw

(5) Hydraulic pump power: 4kw

(6) Shaft diameter: 55mm

(7) Forming steps: 13steps

(8) Roller material: 40Gr

(9) Main frame: Square tube welding

(10) Medium plate thickness: 16mm

(11) Control system: PLC computer control with touch screen

(12) Power supply: 380V, 3 Phase, 50Hz or according to customer’s request

(13) Speed: about 8-12m/min

(14) Cutting Material:Cr12

(15)Shearing precision:±1mm

(16)Machine size:4200*800*1200mm

(17)Transmission way:1 inch chain drive

3. Components of production line

No. Name Unit Qty
1 Main forming machine set 1
2 PLC control system set 1
3 Hydraulic pump station set 1
4 Cutting system set 1
5 Electric motor set 1
6 Manual decoiler set 1
7 Some spare parts

4. Our Key Strength

1. Four technicans on the roll forming machine filed over 20 years.

2. 60 expericend workers for machine assemble and make them qualified.
3. Three engineer who know English for foreign installment and debugging.
4. 20 professional sales person for longlife customer's service.
5. More than 30 sets of grinders, milling machines and various high-precision CNC machines for raw material treatment and good machine design.
6. Highly-experienced assembly operators which underline our strong production capability helps for high-class machine together.

5. Our service:

1. We have professional team to make different kinds of roll forming machines for our customers,
from designing, processing,assembling, debugging, delivery.
2. we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion and salary per day in your country.
3. You can send your men to our factory. we will teach them how to operate the machine without training charges.
4. Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
5. Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.
If there is any problems happened to the machine, we will provide solution at once.

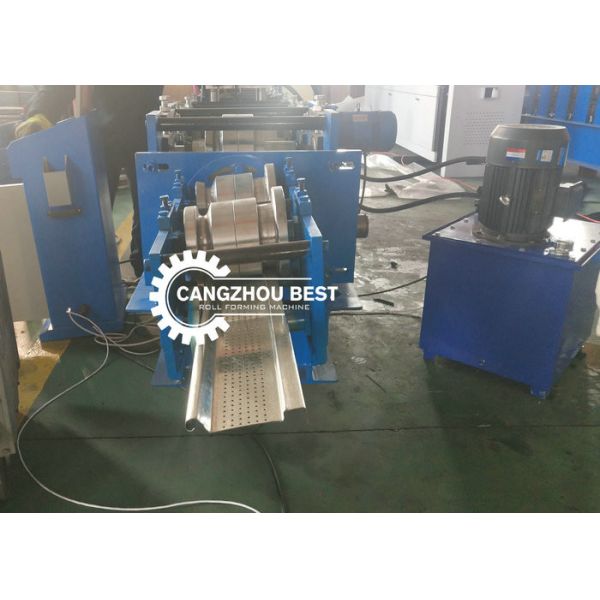

6. Photos:

Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes

Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes

Steel Roller Shutter Door Roll Forming Machine Security Door Machine With Holes
