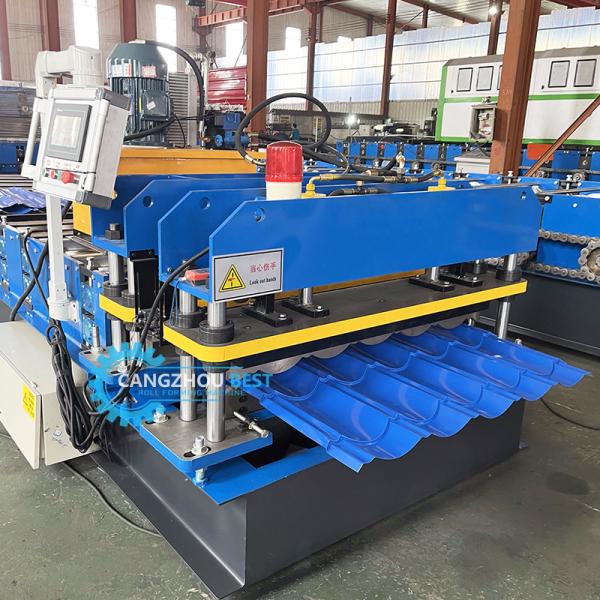

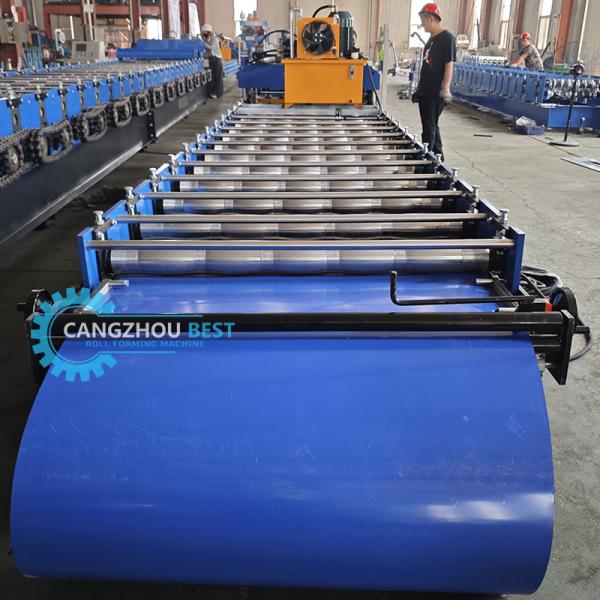

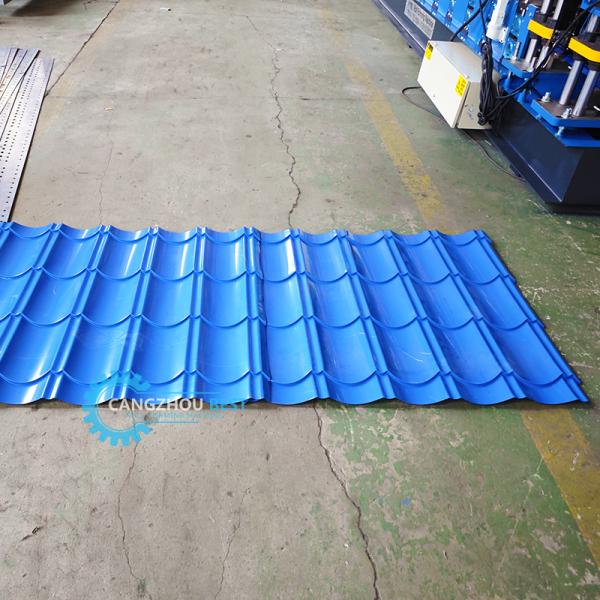

Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction
Specifications
Brand Name :
BEST
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$8000---10000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
30 work days
Model Number :
YX1035
Tile type :
Colored Glaze Steel
Voltage :
380V 50Hz 3phases
Condition :
New
Weight :
6T roof sheet roll forming machine
6T roof sheet roll forming machine :
Roof/wall
After-sales service provided :
Engineers available to service machinery overseas
Description
Product Paramenters
Suitable material
PPGI GI AL
Coil Width
914/925/1000/1200/1220/1250mm as custom
Thickness
0.3-0.8mm as custom
Power
380V 50Hz 3Phase as custom
Main motor
5.5KW Siemens
Hydraulic motor
5.5KW Siemens
Speed
4-6m/min
Forming stations
11rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
70mm
Chain
1.2 inch
Screem HMI
Delta , Touch Screen
PLC
Delta , Siemens
Processing precision
Within 1mm
Size
7.6m×1.5m×1.2m
Weight
4.5T

Main technical parameter:

1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs


2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 13roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 11mm

(7) Bottom frame: 35# H-section steel
(8) Motor Power: 5.5kw

(9)Driven type:1.0’’Chain
(10)Speed: about 4m/min


3. PRESSING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand:5.5kW

(5) Press tool material: Cr 12 steel after heat-treated

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)

5. HYDRAULIC PUMP STATION

(1) Motor power: 5.5 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

(4)Cooling fan

6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m
