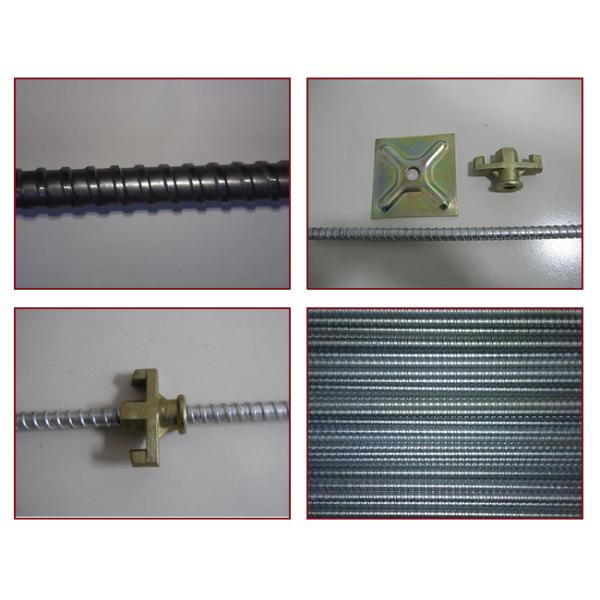

Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Self Finish Q235 17mm Wall Tie Rod For Formwork
Specifications
Brand Name :
WST
Model Number :
TR001
Place of Origin :
China
Price :
Price Negotiation
Payment Terms :
L/C,T/T,Western Union,Alibaba trade assurance
MOQ :
1 piece
Certification :
CMA ISO
Supply Ability :
800meters/day
Delivery Time :
20-30days
Packaging Details :
by woven film , 10pcs per bundle
Material :
Q235 or 45# Steel
Craft :
Cool rolled
Surface treatment :
natural, electro galvanized,HDG
Color :
natural, white galvanized, colorful galvanized color
Diameter :
15/17mm
Screw pitch :
6.35mm
Description

Scaffolding Formwork System #45 Steel 15/17mm Cross Wall Tie Rod

◆Product Overview

WST formwork system tie rods are made of Q235 steel or 45# steel and with self finish , galvanized finish or HDG finish. they are relatively strong in construction and used in industrial as well as housing sectors. With accurate dimension and high tensile strength, our tie rods have been exported to more than 33 countries. All formwork tie rod accessories also available in our factory.

◆Product Parameter

Tie rod types 17mm Tie Rod
Pics Self Finish Q235 17mm Wall Tie Rod For Formwork
Material 45# steel
Diameter 15/17mm
Pitch 10/6.35mm
Length 0-6m
Weight 1.5kg
Finish Natural , Electric galvanized
Color Original self color, Silver,Golden
Craft Cold rolled
Strength 140-150KN
Other name Tie Rod 16MM,Formwork tie bar,Formwork waterstop tie rod

◆Product Advantage

1. Various size and finish:Match all your needs

2. Various material: Q235 steel, 45# steel and PSB830 hot rolled steel are all available

3. High Stength: from 4.5ton to 20tons, we could supply test report for checking

4. One stop purchase : we could produce full set of formwork tie rod accessories

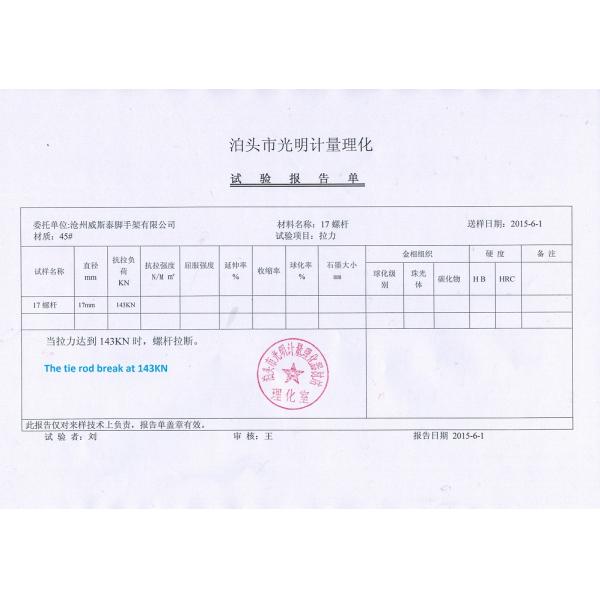

◆Product Test

Tested Product: #45 Steel 15/17mm Tie Rod

Test Institute:Product Quality Supervision And Inspection Institute

Test Result:The formwork tie rod breaks at 143KN,the formwork tie nut keep well

Self Finish Q235 17mm Wall Tie Rod For Formwork

Self Finish Q235 17mm Wall Tie Rod For Formwork
