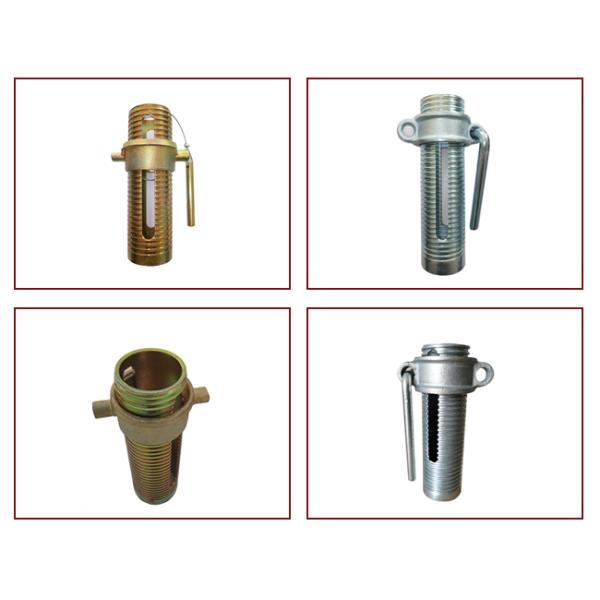

Galvanized 60MM steel prop sleeve for scaffolding Prop Jack
Galvanized 60MM steel prop sleeve for scaffolding Prop Jack
Galvanized 60MM steel prop sleeve for scaffolding Prop Jack
Galvanized 60MM steel prop sleeve for scaffolding Prop Jack
Specifications
Brand Name :
WST
Model Number :
SP026
Certification :
CMA ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Price Negotiation
Payment Terms :
L/C, T/T, Western Union, Alibaba trade assurance
Supply Ability :
10000 pieces/day
Delivery Time :
20-30days
Packaging Details :
packded in pallet of in bulk
Material :
Q235 Steel
Size :
60*2.5/3*200/210mm
Color :
self color/galvanized
Length :
200/210/220
Grove :
150*14mm
Thickness :
2.5/3.0/3.5mm
Description

Scaffolding Prop Jacks Construction Jacks Scaffolding Prop Sleeve Steel Prop

◆Product Overview

WST Scaffolding Prop Sleeve System including prop sleeve, prop nut and prop chain. They are usually used to adjust the height of the steel shore prop, and the prop sleeve items usually match outside pipes of OD60mm and inner pipes of OD48mm. Customized size of prop sleeve and customeized shape of prop nut are both avaliable.

We have gained immense expertise in this business of manufacturing, supplying and exporting Prop Sleeve.

Our procurement agents source fine quality material to manufacture these sleeves in accordance with the international quality standards.

BTW, Prop plates are also prouced in our factory.

◆Product Parameter

Material: Q235 Steel

Finish:Original , Painted, Electro Galvanized,HDG

Color:Original Self Color, Silver or golden color

Craft: Rolling thread or CNC thread

Strength:40KN

Application: Connect the inner pipe and outer pipe of steel props
Diameter 60mm Thickness 2.5/3/3.5mm Length 150-400mm
Size and Weight
Thickness2.5mm Weight Thickness3.0mm Weight Thickness3.5mm Weight
Height 200mm 0.58kg Length 200mm 0.72kg Length 200mm 0.78kg
Length 210mm 0.62kg Length 210mm 0.76kg Length 210mm 0.83kg
Length 220mm 0.65kg Length 220mm 0.80kg Length 220mm 0.888kg
Length 230mm 0.68kg Length 230mm 0.83kg Length 230mm 0.93kg
Length 240mm 0.71kg Length 240mm 0.86kg Length 240mm 0.98kg
Length 250mm 0.74kg Length 250mm 0.90kg Length 250mm 1.02kg

Remark:

1. For items 3.5MM thick or thicker , CNC craft is ok, for items less than 3.5MM,threading machine is ok

2.OD76MM prop sleeve is also available,it’s with CNC thread,4MM or 5MM thick

◆Product Advantage

A.Good Capacity:Q235 steel raw material, Up to 6 tons

B.Various types: various shape and size, match all your needs

C.Exported to many countries: such as Korea,Thailand,Philippine,Bangladesh etc.

D.Thread: Both machine thread and rolled thread are available

Galvanized 60MM steel prop sleeve for scaffolding Prop Jack
