Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized
Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized
Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized
Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized
Specifications
Brand Name :
WST
Model Number :
CP014
Certification :
CMA ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Price negotiation
Payment Terms :
L/C, T/T, Western Union, Alibaba trade assurance
Supply Ability :
20 ton/day
Delivery Time :
20-30days
Packaging Details :
Ton bag or steel pallet or customized
Product name :
Q235 Steel Cuplock Scaffold System Used Hot Dip Galvanized Cuplock Scaffolding Parts
Material :
Q235 steel
Surface treatment :
Hot dip galvanized
Thickness :
3.0-3.5 mm
Diameter :
48.3-48.6mm
Color :
As customers requirment
Length :
0.5m -3.0m
Packing :
In bundles with steel strip
Item :
Cuplock Scaffolding Parts
Technique :
CO2 Arc Welding Scoffolding
Description

Q235 Steel Cuplock Scaffold System Used Hot Dip Galvanized Cuplock Scaffolding Parts

◆Cuplock Scaffolding Parts Product Overview

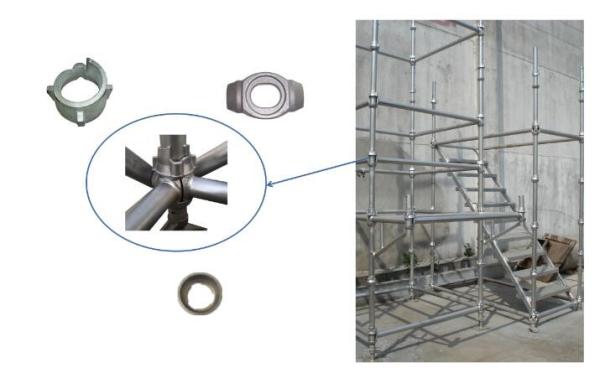

Cuplock scaffolding is a unique node point connection allows up to four horizontal members to be connected to a veritical members in one single action without the use of nuts and bolts or wedges. The locking device is formed by two cups. Single node point action of unique locking make cuplock scaffold a fast, versatile and optimized system of scaffolding for scaffolding for construction, demolition and maintenance projects throughout the globe.

◆Cuplock Scaffolding Parts Product Parameter

Standards
Length(mm)
Tube Thickness(mm)
Tube Diameter(mm)
Surface Treatment
3000
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
2500
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
1000
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
Ledgers
Length(mm)
Tube Thickness(mm)
Tube Diameter(mm)
Surface Treatment
2450
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
1770
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
1150
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
Diagonal Brace
Length(mm)
Tube Thickness(mm)
Tube Diameter(mm)
Surface Treatment
3201
2.75/3.0/3.25
48
Powder Coated/HDG/Painted
2332
2.75/3.0/3.25
48
Powder Coated/HDG/Painted

◆Cuplock Scaffolding Parts Product Advantage

1. Quick fastening of horizontals. Only 4 horizontals can be fastened at one time with firm clamping action of top cup making the joint rigid.
2. Quick/Fast/Solid erection and dismantling results in time and labour saving.
3. Widely and Versatile use in construction, demolition or maintenance projects for any type of structure i.e. straight or curved.
4. Lightweight but high loads carrying capacity.
5. Low maintenance.

Scaffold cuplock system is ideal for a wide range of applications including continuous façade, circular scaffold, birdcage access and staircase access. It is often used for renovation scaffolding, façade scaffolding, masonry scaffolding, support or staircase towers, as well as being used in more specialized applications, such as shipbuilding.

◆Cuplock Scaffolding Parts Product Details

Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized

Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized

Cuplock Scaffold System Q235 Steel Pipe Scaffold Parts Hot Dip Galvanized
