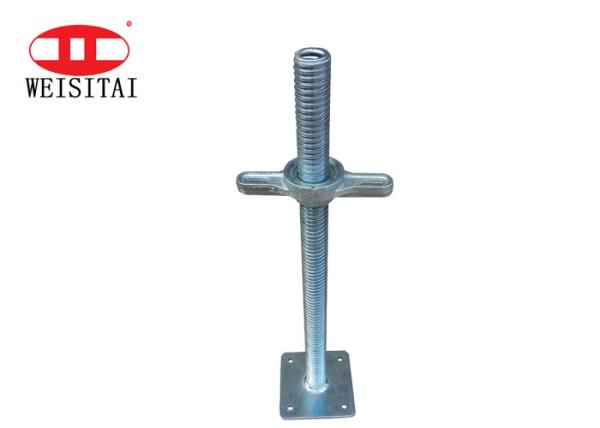

Steel Hollow Or Solid Scaffolding Screw Jack Base For Construction Building
Steel Hollow Or Solid Scaffolding Screw Jack Base For Construction Building
Steel Hollow Or Solid Scaffolding Screw Jack Base For Construction Building
Steel Hollow Or Solid Scaffolding Screw Jack Base For Construction Building
Specifications
Brand Name :
WST
Model Number :
JB002
Certification :
CMA ISO
Place of Origin :
China
MOQ :
1 piece
Price :
Price Negotiation
Payment Terms :
L/C, T/T, Western Union, Alibaba trade assurance
Supply Ability :
10000 pieces/day
Delivery Time :
20-30days
Packaging Details :
Iron pallet plus plastic wrapping film
Material :
Q235 or 20#steel
Type :
Solid or Hollow
Color :
Original color , white galv. or color galv
Jack nut :
0.25kg/0.3kg/0.5kg/0.55kg/1.0kg
Weight :
1-5kg
Base plate :
120*120*4/5mm, 150*150*5/6/8mm
Description

Electro Adjustable Hollow Scaffolding Jack Base Screw

◆Product Overview

Function: The screw jack base is used as a stating base for scaffold. It has adjsutable height which allow for compensation on uneven grades so that a level scaffold is always attainable.


Manufacturing Process: Punching, drilling,welding, galvanzing, etc.

◆Product Parameter

Scaffolding types U head Jack base Swivel Jack base Scaffolding base plate
Sample Steel Hollow Or Solid Scaffolding Screw Jack Base For Construction Building
Weight 1-5kg 1-5kg 1-5kg 1-3kg
Material Q235 or 20# Steel
Diameter

28/30/32/34/35/38/48MM etc
Length

200/280/600/760MMetc, or customized
Floor size

120*120*5MM 150*150*5MM etcor customized
Surface treatment Natural ,painted, Electro galvanized,HDG
Color Black,silver,or colorful galvanized

◆Product Advantage

1.Adjustable: the length could be from 100-1000MM

2.Safe: with various size, our jack base could load from 8-23tons and even more

3.One-stop: there are all related parts in our factory

4.Various mateiral : Q235,Q345,20# etc, from expensive material to cheap materia

◆Product Test

Tested Product:OD32mm Scaffolding Jack Base

Test Institute:Product Quality Supervision And Inspection Institute

Test Result:

Compression Strength:179.7KN

When arriving to 179.7KN,the thread rod bends the jack nut keep well.

Steel Hollow Or Solid Scaffolding Screw Jack Base For Construction Building
