Specifications
Place of Origin :
CHINA, JAPAN, THAILAND, UK, USA
Brand Name :
YUHONG SPECIAL STEEL
Certification :
ABS, BV, DNV, LR, GL , KR, NSK, CCS, ISO, TS , PED , GOST
MOQ :
1PC
Price :
NEGITABLE
Packaging Details :
PLY-WOODEN CASE OR PALLET
Delivery Time :
5DAYS
Payment Terms :
T/T, L/C
Supply Ability :
200 TONS PER MONTH
Model Number :
A182, A105, B564 , B16.11, B16.22 , MPS-75
Material :
Stainless Steel,Duplex Steel,Carbon Steel,Alloy Steel
Size :
1/8" NB TO 4" NB. (SOCKETWELD & THREADED)
Class :
150#, 300#, 600#, 900#, 1500#, 2000#, 3000#, 6000#, 9000#
Description

Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet

Steel Union

Our company is engaged in offering a wide range of steel unions that are manufactured using top grade materials, which increase their service life standards. These are available in various specifications thus meeting the requirements of our clients’ at most competitive prices. These are available in DIN, SMS, ISO, 3A, RJT, IDF standards.


Grades:


Stainless Steel
ASTM / ASME SA 312 GR. TP 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
ASTM / ASME SA 358 CL 1 & CL 3 GR . 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 321, 321H, 47 .


Duplex Steel

ASTM / ASME SA 790 UNS NO S 31803, S 32205, S 32550, S 32750, S 32760.


Carbon Steel

ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70.
ASTM / ASME A 691 GR A, B & C


Alloy Steel
ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91
ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91


Nickel Alloy

ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 163 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 )
ASTM / ASME SB 704/705 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 )


Copper Alloy

ASTM / ASME SB 111 UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500.
ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
Size: 1/8" NB TO 4" NB. (SOCKETWELD & THREADED)
Class: 150#, 300#, 600#, 900#, 1500#, 2000#, 3000#, 6000#, 9000#

Products Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet Union

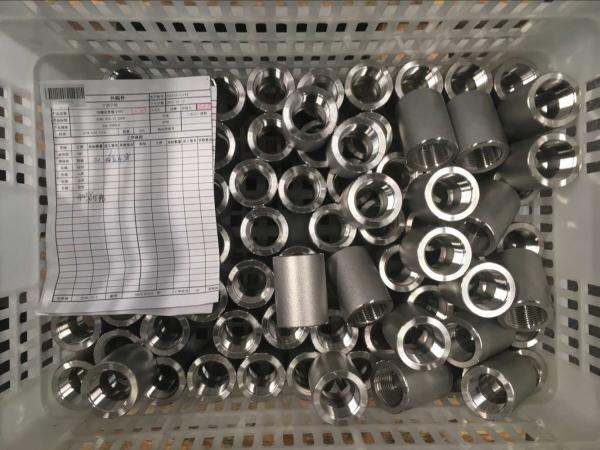

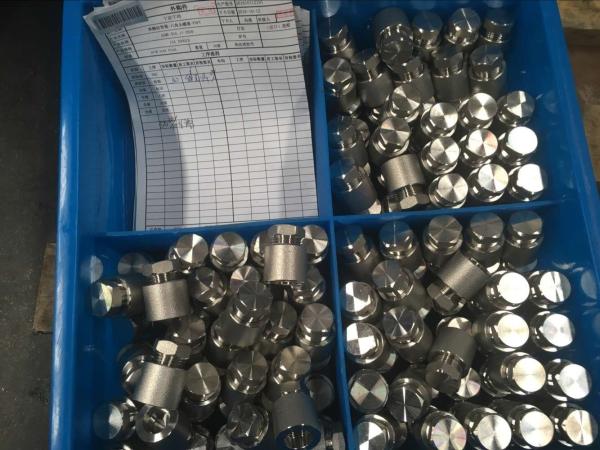

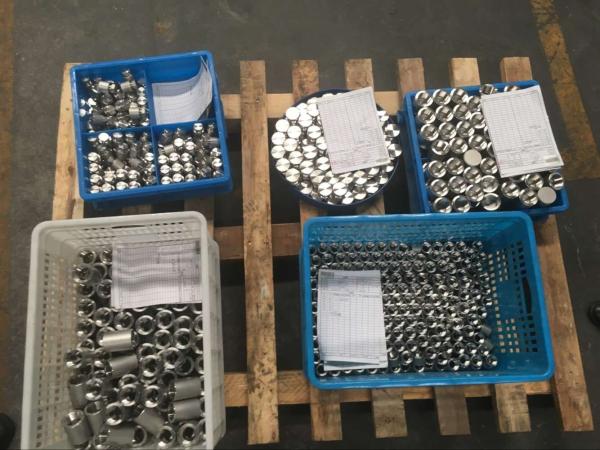

Product Pictures and Drawings
Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet
Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet
Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet
Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet
Union (SW)
Union (TH)
Dimensional Data
1/8" to 3 " class 3000 and 1/2" to 2" class 6000
Class 3000 　 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
A 1 11/16 1 11/16 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/2 4 7/16
B 1 31/64 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64 6 5/32
C 53/64 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16 4 9/32
D 25/32 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8 2 7/16
E 7/16 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8 1
F 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535
0.430 0.565 0.700 0.865 1.075 1.340 1.685 1.925 2.416 2.921 3.550
　
Class 6000 　 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 　
A 1 11/15 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/8
B 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64
C 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16
D 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8
E 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8
F 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406
0.430 0.565 0.700 0.865 1.075 1.340 1.685 1.925 2.416

Forged Steel Fittings , A 182 / A105 , Class 1000 / Class 2000, B564 Flangolet, weldolet , Nipple, Coupling, olet
