ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A192
Certification :
ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
50PC
Price :
1-150000 USD
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons/month
Delivery Time :
5-75 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASTM A192
Material :
A192
Type :
H Type Square TUBE
Tube Material :
Carbon Steel
Fin Material :
Carbon Steel
Use :
Heater Parts,Refrigeration Parts,Heat Exchanger,etc
Length :
as required
Packing :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Description

ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler

YUHONG Group offers many kinds of fin tubes. And ASTM A192 welding carbon steel H/HH type fin tube we sell in many years and sell in over 70 countries.

Specifications For Various Types Of Finned Tubes That We Can Offer

Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tueb 16-63 2.1~5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8.0~30 <2.5 /
Wound l/kl/ll type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studed fin tube 25-219 8~30 5~35 φ5-20

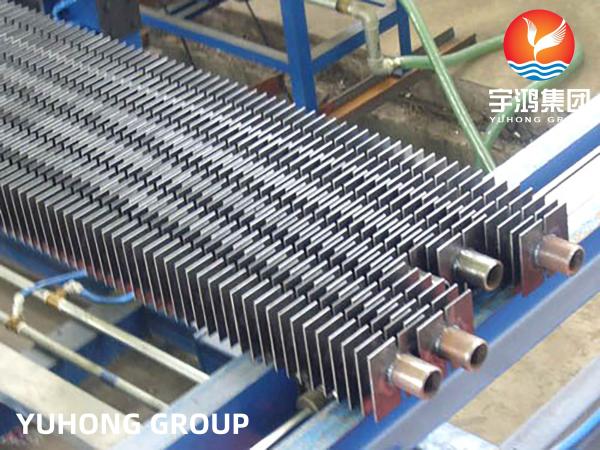

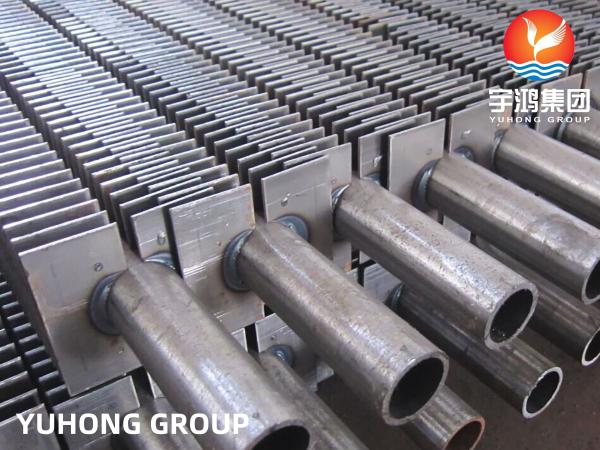

Industial boiler part heat exchanger H finned tube economizer is a kind of boiler parts.Square or Rectangular H Fins are welded on a steel base tube. Having two steel circular symmetry to be welded on fluorescent tubes to form ins positive shape much like letter "H", so we called H-fin tube. H finned tube widely used in utility boilers, industrial boilers, marine power, such as the tail of heat exchanger components.

Characteristics of H Fin Tube

1.Add the heat exchange area and reduce the number of tubes, reduce the fume speed and abrasion.
2.Can be made to double H type fin tube, high rigidness to fit long tube row.
3.Arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4.With straight channel to gain the best ash-blowing effect.
5.Compact structure to reduce the weight and reduce the manufacturing cost.

ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler

Material Base Pipe/Tube We Can Offer

Stainless steel: ASME SA213/ASTM A213, ASME SA249/A249 ,ASME SA312/A312: TP304,304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321,TP321H, TP347, TP347H, TP904L


Duplex/Super Duplex Steel: ASME SA789/A789 , ASME SA790/A790: S31803, S32205, S32750, S31500, S32304, S32900

Carbon Steel : ASME SA106/ASTM A106 Gr B, Gr C, ASME SA179/ASTM A179, ASME SA192/ASTM A192, ASTM A214, ASTM A210

Alloy Steel : ASME SA213/ASTM A213 T1, T11, T12, T22, T23, T5, T9, T91, T92 ; ASME SA335 /ASTM A335 P1, P11, P12, P22, P23, P5, P9, etc


Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.


Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.


Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Copper Alloy Steel: ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)

Fin Material We Can Offer

Alloy Steel , Stainless Steel , Carbon Steel .

Detailes Of ASTM A192 Tube

A192 This specification covers minimum-wall thickness, seamless carbon steel boiler and superheater tubes for highpressure service.

Chemical Composition max %

Grade C Mn P S Si
A192 0.3 0.27-0.63 0.035 0.035 0.25

Mechanical Properties

Grade Tensile Strength,min Yield Strength (0.2%Offset,min) Elongation Brinell Hardness Rockwell Hardness
A192 Ksi-47,MPa-325 Ksi-26,MPa-180 0.35 137HRB 77HRB

Application

Heat Parts / Heat Exchanger

Steam Coils

Air Perheaters

Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers

Waste Heat Recovery

Air Conditioning / Air Heaters

Steam Condensers,etc

Related Industries Involved

Chemical industry

Petroleum Industry​

Metallurgical industry

Power industry

Pharmaceutical industry

Food industry

Light industry,etc

ASTM A192 H Type Square Carbon Steel Fin Tube for Boiler
