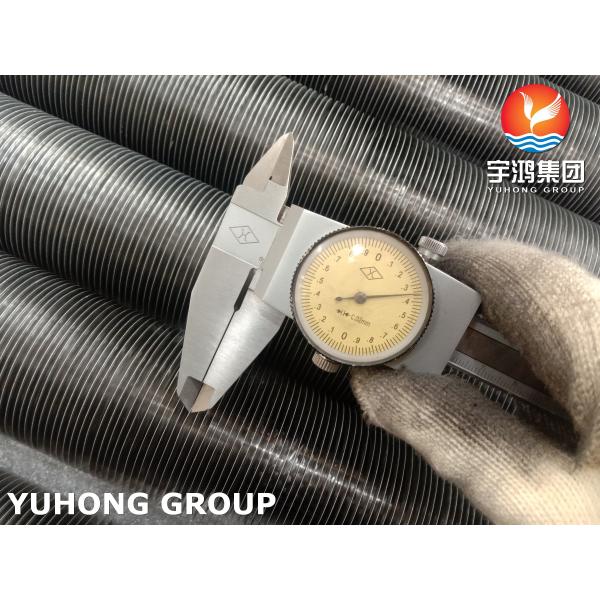

ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
Specifications
Brand Name :
YU HONG
Model Number :
ASME SB163 NO4400
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
30PC
Price :
1-150000 USD
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons/month
Delivery Time :
5-75 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product :
Finned Tubes
Standard :
ASME SB163
Material :
UNS NO4400 / Monel 400
Type :
G-Type
Tube Material :
Carbon Steel
Application :
Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling
Length :
or as required
Packing :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Description

ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin

YUHONG Group supplies many kinds of fin tubes in many years and we sell these finned tubes in over 70 countries.

Specifications For Various Types Of Finned Tubes We offer

Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tueb 16-63 2.1~5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8.0~30 <2.5 /
Wound l/kl/ll type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studed fin tube 25-219 8~30 5~35 φ5-20

Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.

ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin

Embedded Fin Tubes also called G type Finned Tube, Embedded Finned Tube provides a perfect connection between the fin and the tubes . The Embedded Fin tubes main design is that through professional equipment groove the tubes and fin insert fins into the helical groove. Finally combined the fin and tubes as intergral.

Advantages Of G-Type Finned Tube

High-performance

Easy installation

Less space required

Optimized surface

Finest technology used

Average corrosion protection

Low maintenance

High mechanical resistance,etc.

Detailes Of Monel 400 / NO4400 Tube

ASME SB 163 This specification covers seamless tubes of nickel and nickel alloys, as shown in Table 1, for use in condenser and heat-exchanger service.

Monel 400 is a nickel-copper alloy known for its excellent corrosion resistance, especially in marine environments. It is also resistant to hydrofluoric acid and sulfuric acid, making it highly desirable for applications in chemical processing industries. MONEL 400 exhibits good mechanical properties and can be easily fabricated and welded. This alloy is commonly used in seawater valves, pump shafts, and marine equipment.

Chemical Composition

Nickel-copper

UNS NO4400

 Ni Cu Fe Mn C (A) Si (A) Su
Monel 400 63.0 min(B) 28.0-34.0 2.50 max 2 0.3 max 0.5 0.024

Mechanical Properties

UNS NO4400 Tensile Strength,min Yield Strength (0.2%Offset,min) Elongation Rockwell Hardness
Annealed ksi-70,MPa-483 psi-28,MPa-193 0.35 /
Stress-relieved ksi-85,MPa-586 psi-55,MPa-379 0.15 B75 max

Physical Properties

Properties Metric Imperial
Density 8.8 gm/cm3 0.318 lb/in3

Application

Radiators

Air-cooled heat exchangers

Boiler economizers

Process heaters

Heat recovery steam generators (HRSG)

Chemical plants, Oil refineries, ower plants, and HVAC systems,etc.

ASME SB163 Embedded G Type Monel 400 Finned Tube With Al Fin
