ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B462 UNS N08020, Alloy20
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
5 - 60 Work days
Packaging Details :
Ply-wooden Case / Pallet
Standard :
ASTM B462, ASME SB462
Material Grade :
UNS N08020, Alloy 20
Size :
1/2"-48"
Schedule :
SCH 10S - SCH XXS
Pressure :
Class150/300/600/9001500/2500
Type :
Threaded flange,Slip on Flange,socket weld flange,weld neck flange,LAP Joint Flange
Technics :
Froged
Application :
Petroleum,chemical,fittings and connection,beer
Description

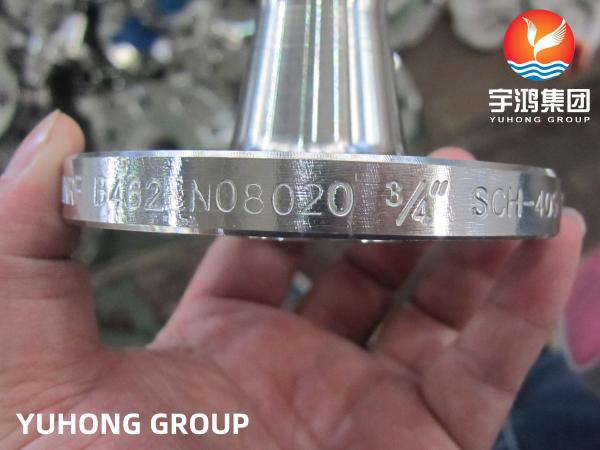

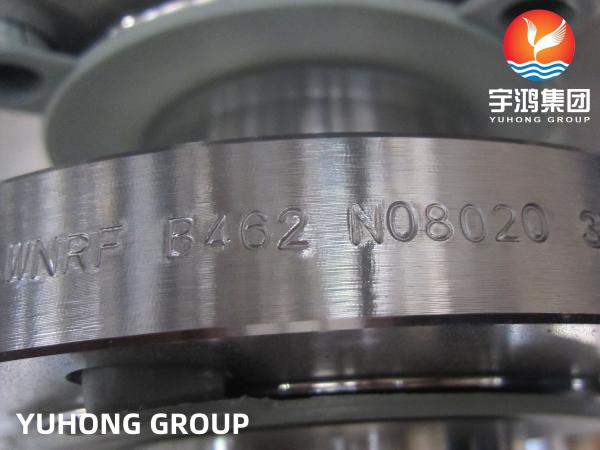

ASTM B462 UNS N08020 Superalloy Nickel Alloy Steel Pipe Flange B16.5

What is ASTM B462 UNS N08020?

Alloy 20 is often called as a superalloy. ASTM B462/ ASME SB462 UNS N08020 Flange has excellent resistance to general corrosion, pitting, and crevice corrosion in chemicals containing chlorides as well as in acidic medium or conditions that contain acidic solutions like sulfuric, phosphoric, and nitric acids.

Alloy 20 Flanges are a low-carbon containing, niobium-stabilized authentic alloy. Alloy 20 Flanges contain elements like nickel, iron, and chromium in their alloy with additions of metal elements like molybdenum and copper. The addition of niobium within the Alloy 20 Weld Neck Flange has been done to stabilize the alloy against sensitization and prevention of the resultant intergranular corrosion.

Features:

Corrosion resistant

Rust proof finish

Excellent stress distribution

Can sustain high pressure & temperature

Specification ASTM B462/ ASME SB 462 UNS N08020
Size 1/2" - 48"
Standards ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, BS, DIN, EN, GOST.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc
Main Types Forged / Threaded / Screwed / Plate
Types

Weld Neck Ring Flange (WNRF)

Slip-On Ring Flange (SORF)

Blind Ring Flange (BLRF)

Ring Type Joint Flange (RTJF)

Socket Weld Ring Flange (SWRF)

Lap Joint Ring Flange (LJRF)

ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5

Equivalent Grades:

STANDARD WERKSTOFF NR. UNS AFNOR EN
Alloy 20 2.4660 N08020 Z2NCUD31-20AZ NiCr20CuMo

Chemical Composition:

C Mn Si S Cu Ni Cr Fe Mo P
0.07 max 2 max 1 max 0.035 max 3-4 32-38 19-21 29.85 min 2-3 0.045 max

Mechanical Properties:

Density 8.1 g/cm3
Melting Point 1443 °C (2430 °F)
Tensile Strength Psi -80000, MPa - 551
Yield Strength (0.2%Offset) Psi - 35000, MPa - 241
Elongation 30 %

Applications:

Boiler & Heat Exchangers

Paper & Pulp Plants

High Pressure Applications

Oil and Gas Industries

Chemical Refinery

High Temperature Application

Water Pipe Line

Nuclear Power Plants

Food Processing Industries

ASTM B462 UNS N08020, Alloy20 Superalloy Nickel Alloy Steel Pipe Flange ASME B16.5
