Specifications
Brand Name :
YUHONG
Model Number :
ASME SB677 TP904L
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000Tons/Month
Delivery Time :
7DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SB677 / ASTM B677
Material Grade :
UNS NO8904 , 1.4539 , TP904L
Type :
Seamless,Welded
Packing :
Ply Wooden Case , Woven Flexible Bag In Hex Bundle
Application :
Petroleum, Petrochemical Equipment, Petroleum, Petrochemi
Description

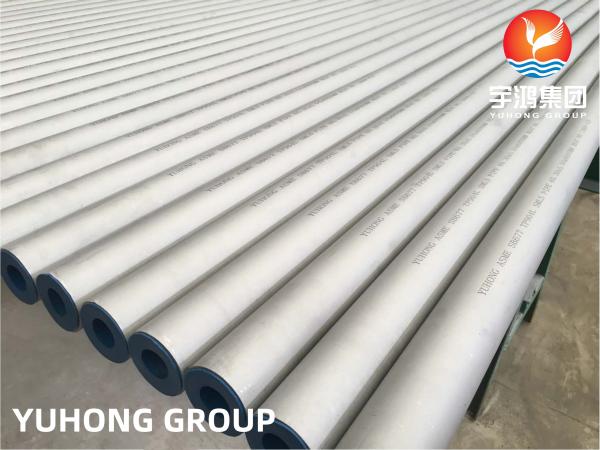

ASME SB677 TP904L/1.4539/UNS N08904 Stainless Steel Seamless Pipe

904L stainless steel material is a super austenitic stainless steel material, grade 00Cr20Ni25Mo4.5Cu, UNS: N08904, EN: 1.4539. It is a high alloyed austenitic stainless steel with low carbon content and has good corrosion resistance in dilute acid, designed specifically for environments with harsh corrosion conditions. It has a high chromium content and sufficient nickel content. The addition of copper gives it strong acid resistance, especially high resistance to chloride interstitial corrosion and stress corrosion cracking. It is highly resistant to corrosion spots and cracks, and has slightly better resistance to pitting compared to other steel grades. It has good machinability and weldability. Solid solution state without magnetism.

The chemical composition of 904L is C ≤ 0.03, Si ≤ 1.00, Mn ≤ 2.00, P ≤ 0.035, S ≤ 0.03, Ni: 23.0-25.0, Cr: 18.0-20.0, Mo: 3.0-4.0, Cu: 4.0-5.0. The minimum mechanical properties of 904L alloy at room temperature: alloy and state: 926, tensile strength (Rm N/mm2): 490, yield strength (RP0.2N/mm2): 216, elongation A5%: 35

Composition ranges for 904L grade of stainless steels.


Grade		 C Mn Si P S Cr Mo Ni Cu
904L min.
max.		 -
0.020		 -
2.00		 -
1.00		 -
0.045		 -
0.035		 19.0
23.0		 4.0
5.0		 23.0
28.0		 1.0
2.0

Mechanical properties of 904L grade stainless steels.


Grade		 Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) Brinell (HB)
904L 490 220 35 70-90 typical -
Rockwell Hardness value range is typical only; other values are specified limits.

Typical physical properties for 904L grade stainless steels.


Grade		 Density
(kg/m3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (m/m/C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100C
(J/kg.K)		 Elec Resistivity
(n.m)
0-100C 0-315C 0-538C At 20C At 500C
904L 8000 200 15 - - 13 - 500 850

Grade specifications for 904L grade stainless steels.


Grade		 UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
904L N08904 904S13 - 1.4539 X1NiCrMoCuN25-20-5 2562 -
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.

Possible alternative grades to 904L stainless steel.

Grade Why it might be chosen instead of 904L
316L A lower cost alternative, but with much lower corrosion resistance.
6Mo A higher resistance to pitting and crevice corrosion resistance is needed.
2205 A very similar corrosion resistance, with the 2205 having higher mechanical strength, and at a lower cost to 904L. (2205 not suitable for temperatures above 300C.)
Super duplex Higher corrosion resistance is needed, together with a higher strength than 904L.
