Specifications
Brand Name :
YUHONG
Model Number :
ASTM B366 UNS N04400
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 tons per month
Delivery Time :
Depends on quantity
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Specification :
ASTM B366
Grade :
UNS N04400
Type :
Buttweld
Size Standard :
ANSI B16.9
Description

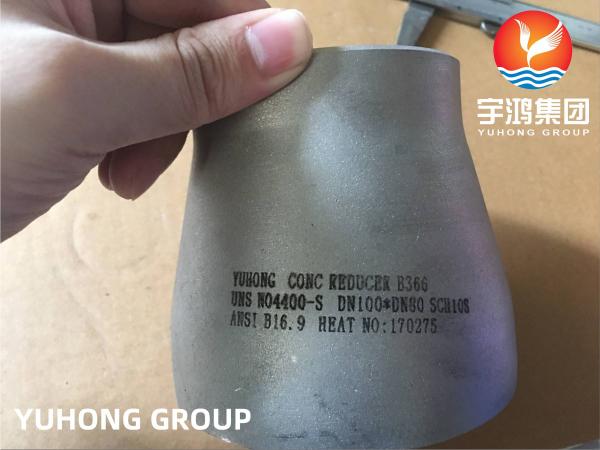

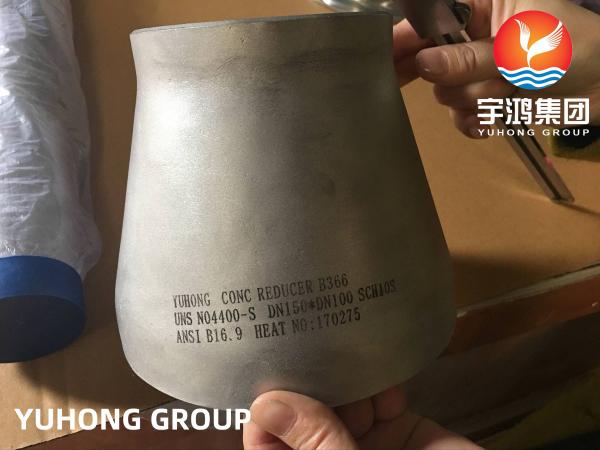

Buttweld ASTM B366 N04400 2.4360 Monel 400 Con.Reducer ANSI B16.9

ASTM B366 covers wrought welding fittings for pressure piping, factory-made from nickel and nickel alloys. Threaded fittings as covered in ASME B16.11 are also covered by this specification. The term welding applies to butt-welding or socket-welding parts such as 45 and 90° elbows, 180° bends, caps, tees, reducers, lap-joint stub ends, and other types, as covered by ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, and MSS SP-97.

Monel 400 is cold worked, solution strengthened alloy. Cold working any alloy improves its surface smoothness and imparts dimensional stability to the Monel 400 Pipe Fittings, making the material more durable and long lasting. A high nickel alloy, the addition of significant content of copper imparts the alloy with superior resistance to sodium chloride solutions including brine and seawater.

Our Monel 400 Buttweld Fittings is resistant to caustic solvents, acids and alkaline, as well as seawater, has high robustness at high temperatures, and are wieldable too, used in many marine engineering applications.

We offer quality tested, certified UNS N04400 Monel 400 Pipe Fittings in nominal diameters and pressure ratings, which are reliable and join pipes conveying pipes conveying water and gas in the beverage and fire suppression industry.

Monel 400 Equivalent Material

STANDARD

UNS

WERKSTOFF NR.

AFNOR

EN

JIS

BS

GOST

Monel 400

N04400

2.4360

NU-30M

NiCu30Fe

NW 4400

NA 13

МНЖМц 28-2,5-1,5

Monel 400 Chemical Analysis

The Chemical Composition of Monel 400, %
Iron ≤2.50
Sulfur ≤0.024
Silicon ≤0.50
Copper 28.0-34.0
Nickel ≥63.0
Carbon ≤0.30
Manganese ≤2.0

Monel 400 Mechanical Properties

Tensile Strength, minimum Yield Strength, minimum Elongation, minimum Hardness
Mpa ksi Mpa ksi % HB
550 80 240 35 40 110-150

Monel 400 Physical Properties

Density Melting Range Curie Temperature Electrisity Resistivity
g/cm³ lb/in3 °F °C °F °C µΩ·m
8.80 0.318 2370-2460 1300-1350 70-120 21-49 547

Other grades also available :

Incoloy :
Grade: Incoloy 800, Incoloy 800H, Incoloy INCOLOY 800HT
Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 316, 316L, 316H, 310, 310S, 317, 317L, 321, 347, 904L
Nickel :
Grade: Nickel 200, Nickel 201
Carbon Steel :
Grade: WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Alloy Steel:
Grade : WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Duplex Steel:
Grade: UNS F44, F45, F51, F53, F55, F60, F61

Applications:

-Pharmaceutical and chemical process equipment
-Industrial fabrications
-Architectural railings
-Heat exchangers
-Equipment and appliances
-Food processing equipment
-Threaded fasteners
-Springs
