ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
Specifications
Brand Name :
YUHONG
Model Number :
Alloy Steel T5/T9/T11/T22
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1 PC
Payment Terms :
L/C, T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply-wooden Case /Iron Case
Product Name :
Alloy Steel U Bend Tube
Material Grade :
Alloy Steel T5/T9/T11/T22
Standard :
ASTM A213/ASME SA213, ASTM A249/ASME SA249, ASTM A269ASTM A688
NDT :
HT, ET, UT
Type :
Seamless
Manufacture :
Seamless process, Hot-finished or Cold-finished
Usage :
Boiler Tube, Oil / Gas Drilling, Chemical Industry, etc.
High Light :
ASTM A213 T9 Alloy Sttel Seamless Tube, ASTM A213 Boiler Tube
Description

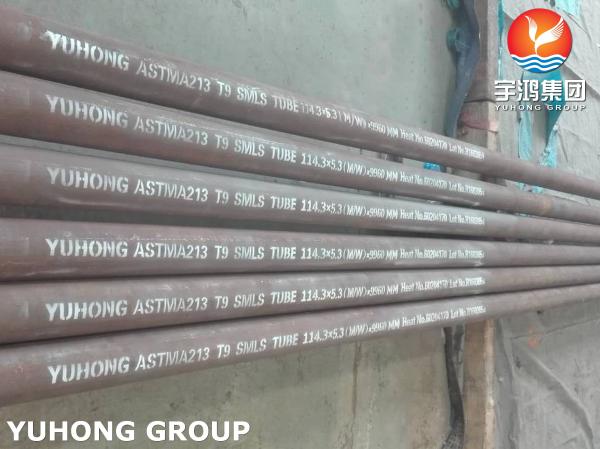

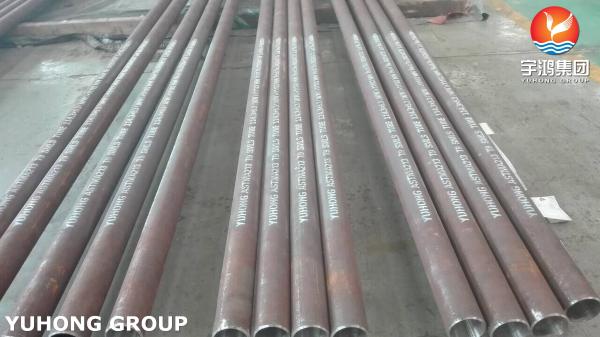

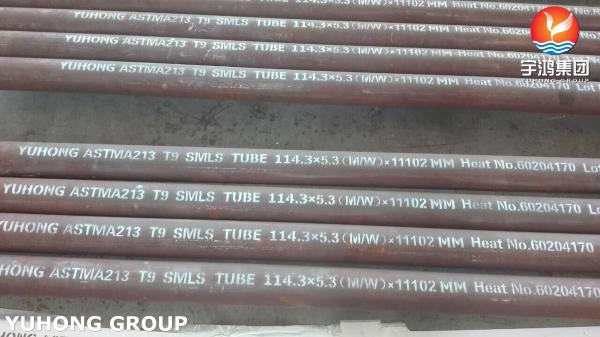

ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube


Yuhong Group is experienced in Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube supplying. Our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and every year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. If there is any relative inquiry need our support, please don't hesitate to contact us.

ASTM A213/ASME SA213
Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A213 covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.
ASTM A213 T9 Tube is made up of a low carbon alloy steel that is suitable for high heat and high pressure applications like the chemical, power generation, petroleum and oil and gas industrial applications. The ASTM A213 T9 Tube is also used in the water supply, metallurgy, construction and ship building applications which require strong material.

Mechanical Property for ASTM A213 Seamless Steel Tube

Steel Grade Tensile Strength, Mpa Yield Strength, Mpa Elongation, %
ASTM A213 T5 Min: 415 Min: 205 Min: 30
ASTM A213 T9 Min: 415 Min: 205 Min: 30
ASTM A213 T11 Min: 415 Min: 205 Min: 30
ASTM A213 T12 Min: 415 Min: 205 Min: 30
ASTM A213 T22 Min: 415 Min: 205 Min: 30
ASTM A213 T91 Min: 415 Min: 415 Min: 20

Chemical Composition for ASTM A213 Seamless Steel Tube

Steel Grade
C Mn P S Si Cr Mo V
ASTM A213 T5 Max: 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 Max: 0.50 4.00 - 6.00 0.45 - 0.65 --
ASTM A213 T9 Max: 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 0.25 - 1.00 8.00 - 10.00 0.90 - 1.10 --
ASTM A213 T11 0.05 - 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 0.50 - 1.00 1.00 - 1.50 0.44 -0.65 --
ASTM A213 T12 0.05 - 0.15 0.30 - 0.61 Max: 0.025 Max: 0.025 Max: 0.50 0.80 - 1.25 0.44 - 0.65 --
ASTM A213 T22 0.05 - 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 Max: 0.50 1.90 - 2.60 0.87 - 1.13 --
ASTM A213 T91 0.08 - 0.12 0.30 - 0.60 Max: 0.020 Max: 0.010 0.20 - 0.50 8.00 - 9.50 0.85 - 1.05 0.18 - 0.25
Cb: 0.06 - 0.1 N: 0.030 - 0.070 Ni: Max: 0.40 Al: Max0.04 Ti: Max: 0.01 Zr: Max 0.01

SA213 Alloy Steel Tubes

Trade Name Grade UNS # Heater Tubes
1 1/4 Chrome T11 K11597 A213 / SA213
2 1/4 Chrome T22 K21590 A213 / SA213
5 Chrome T5 K41545 A213 / SA213
9 Chrome T9 K90941 A213 / SA213
T91 T91 K90901 A213 / SA213
T92 T92 K92460 A213 / SA213

Some of the quality tests carried out by us includes

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

ASTM A213 / ASME SA213 Gr T9 Boiler Tube Ferritic Alloy Steel Seamless Tube
