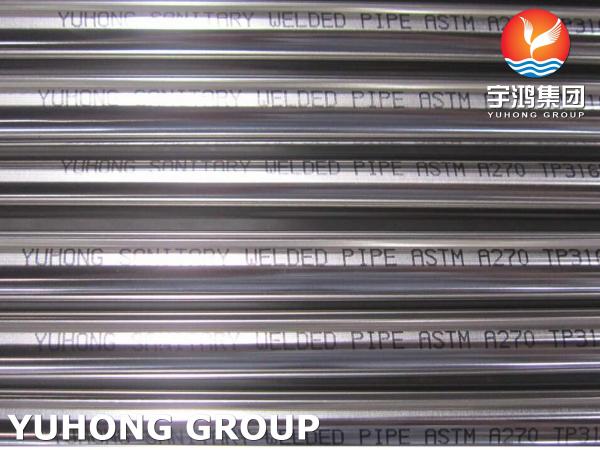

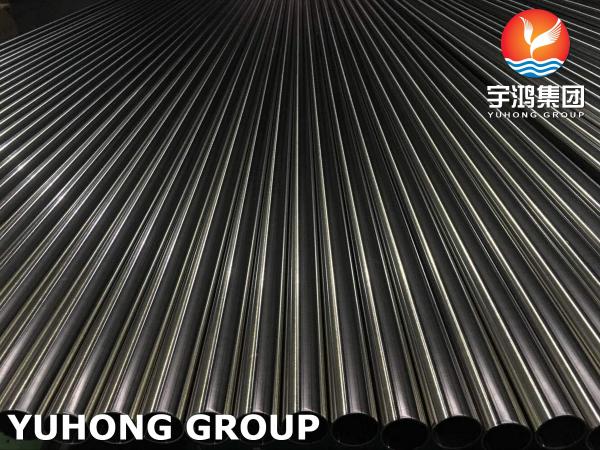

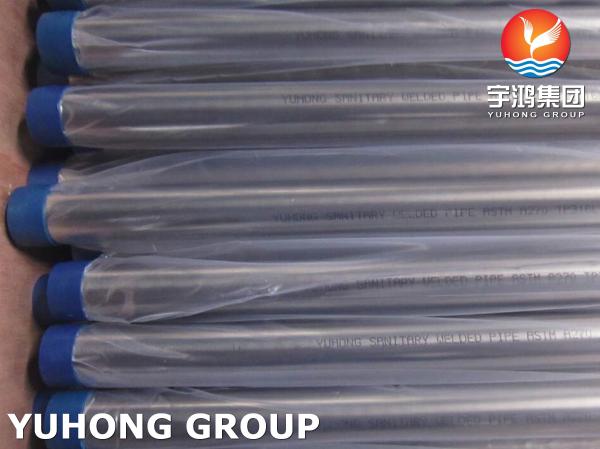

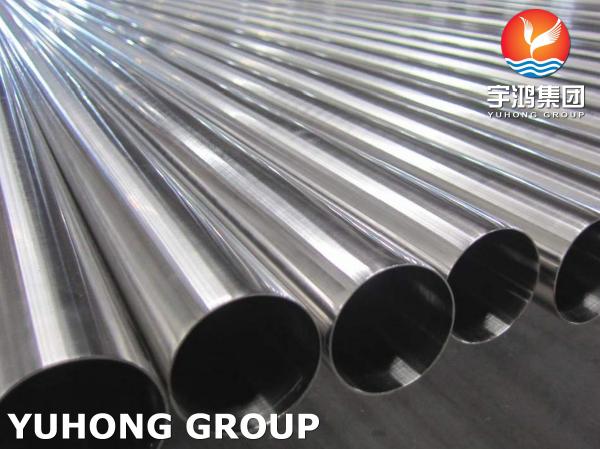

ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
Specifications
Brand Name :
YUHONG
Model Number :
TP316L, 1.4404, UNS S31603
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
100 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According To Customers' Request
Delivery Time :
5 - 90 Work Days
Packaging Details :
Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap
Standard :
ASTM A270, ASME SA270
Material Grade :
TP316L, 1.4404, UNS S31603
Type :
Welded,Seamless
Product name :
Stainless Steel Pipe
Surface :
BA
Shape :
Round.square.Rectangle
Description

ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe

ASTM A270 TP316L Seamless Pipe is produced as hot steel billets are passed through extruded metal to put them in their correct position. This gives the pipes without any welds excellent strength and load-bearing capacity than the welded pipes. The ASME SA270 TP316L Welded Pipe is cheaper than these components and is available in different sizes and not restricted to a specific size as seamless tubes. The SA270 TP316L Stainless Steel Welded Sanitary Tubing has good strength and torsion, allowing it to function efficiently in harsh environments. The pipes have a long service life and don’t deteriorate under any pressures in the system.

Equivalent Grades:

UNS No Old British Euronorm Swedish
SS		 Japanese
JIS
BS No Name
S31603 316S11 1.4404 X2CrNiMo17-12-2 2348 SUS 316L

Chemical Composition:

C Mn Si P S Cr Mo Ni N
Min – – – – – 16 2 10 –
Max 0.03 2 0.75 0.045 0.03 18 3 14 0.1

Mechanical Properties:

Elongation (% in 50mm) min Hardness Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min
Rockwell B (HR B) max Brinell (HB) max
95 217 485 170 40

Physical Properties:

Grade Density
(g/cm3)		 Elastic Modulus
(GPa)		 Mean Co-eff of Thermal Expansion (µm/m/°C) Thermal Conductivity
(W/m.K)		 Specific Heat 0-100°C
(J/kg.K)		 Elec Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C 100°C 500°C
TP316L 8 193 15.9 16.2 17.5 16.3 21.5 500 740

Applications:

Refining

Gas transmission
refrigeration machinery
Petrochemical industry
Pulp and paper industry
Heating and Air Conditioning
Chemical & Electric Power

ASTM A270 TP316L, 1.4404, UNS S31603 Stainless Steel Sanitary Welded Pipe
