Specifications
Brand Name :
YUHONG
Model Number :
WP304L-S
Certification :
API, PED
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
T/T, L/C at sight
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
Depends on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
Materials :
WP304L-S
Size :
1/2"NB TO 48"NB IN
Specification :
ASTM A403
Dimension Standard :
ASME B16.9
Type :
Elbow
W.T. :
Schedule 10s - Schedule XXS
Description

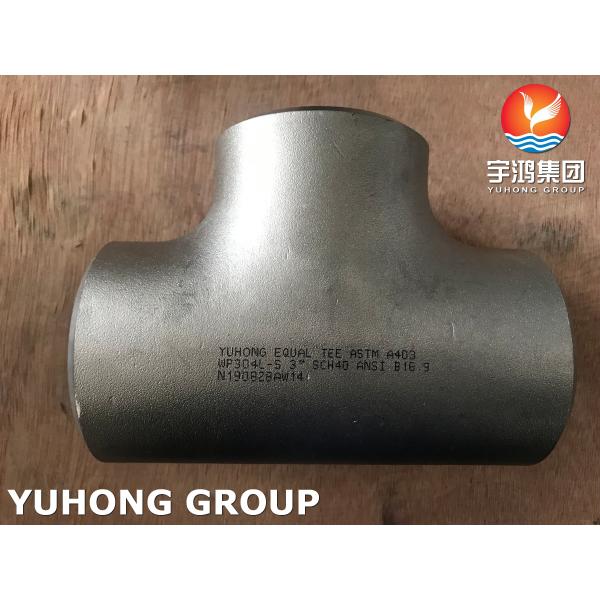

ASTM A403 WP304L-S TEE Butt Weld Fittings B16.9 For Oil Gas Heat Exchanger


Overwiew

ASTM A403 WP304 is used where chromium carbide deposits are not desired. 304 fittings can be seamless or butt-welded. grade A403 WP304 butt-welded fittings are stronger because they are butt-welded and heat treated during the manufacturing process. This 304 stainless steel pipe fittings are used for domestic, commercial and industrial applications. 304 fittings can be used in applications ranging from NPS1/2 to NPS60. they cover a huge range of nominal sizes and dimensions. The 304 stainless steel welded fittings are used for domestic water and gas pipelines, seawater applications, nuclear generation and other high pressure and temperature applications as well.

Chemical Composition of ASTM A 403 WP304L-S TEE
GradeCMnSiPSCrMoNiN
Stainless Steel 304L Pipe Fittings0.035 maximum2.0 maximum1.0 maximum0.045 maximum0.03 maximum18 – 20-8 – 13-

Mechanical Properties of ASTM A403 WP304L-S TEE

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31400 °C (2550 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %

Equivalent of ASTM A403 WP304L-S TEE

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
Stainless Steel 304L Pipe Fittings1.4306 / 1.4307S30403SUS 304L3304S1103Х18Н11Z3CN18‐10X2CrNi18-9 / X2CrNi19-11


Physical Properties of ASTM A403 WP304L-S TEE

GradeDensity (kilogram/m3)Elastic Modulus (GPa)Mean Coefficient of Thermal Expansion (m/m/0C)Thermal Conductivity(W/m.K)Specific Heat 0-1000C(J/kilogram.K)Electrical Resistivity (n.m)
0-1000C0-3150C0-5380Cat 1000Cat 5000C
Stainless Steel 304L Pipe Fittings800019317.217.818.416.221.5500720



Application


Heat Exchangers
Oil & Gas Industry
Condensers
Boilers
