ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
Specifications
Brand Name :
YUHONG
Model Number :
F904L, UNS N08904, AWWA C207
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
5 - 90 Work Days
Packaging Details :
Ply-wooden Case / Pallet
Specification :
ASTM A240, ASME SA240
Material Grade :
F904L, UNS N08904, AWWA C207
Product Name :
Stainless Steel Flange
Sizes :
1/8" - 48", Or As Client's Request
Facing Type :
RF, FF, RTJ...
Pressure :
Class150/300/600/9001500/2500
Type :
Threaded flange,Slip on Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange
Technics :
Forged
Standard :
ANSI B16.5, B16.47
Application :
Petroleum,chemical,fittings and connection,etc.
Description

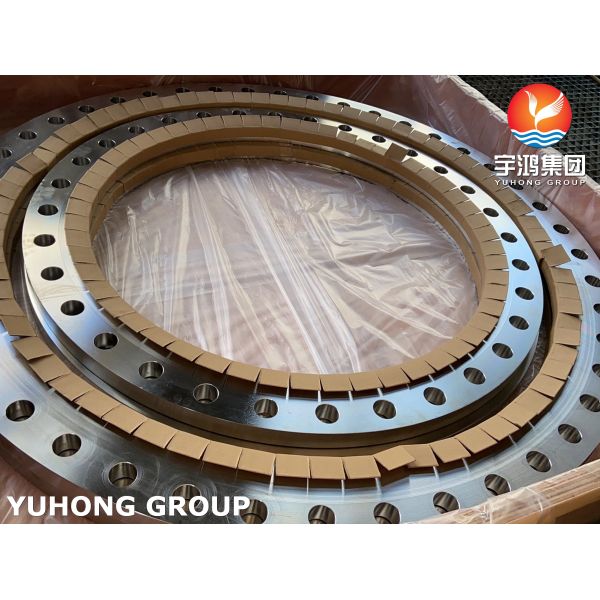

ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face

ASTM A240 F904L Stainless Steel Flanges are made up of a non-stabilized austenitic stainless steel material. The material has 23% nickel, 19% chromium and carbon, silicon, cupper, sulfur, manganese, phosphorus and 4% molybdenum in the composition. The flanges come under ASTM A182 and ASTM A240 specifications. The ASTM A240 F904L Stainless Steel Flanges has high corrosion resistant. They are in particular resistance to chloride ion, mild acids and oxidation. Thus, these flanges can be used in sour water, sea water and marine applications. Our Group manufactures and supplies various kinds of stainless steel falnges for more than 30 yesrs, like weld neck flanges, slip on flanges, blind flanges, orifice flanges, lap joint flanges, and so on. You can rest assured about our quality and service.

Specifications:

Dimension Standard ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, etc.
Standard ANSI, ASME, BS, DIN, EN, etc.
Specification ASTM A240, ASME SA240
Size 1/8” – 48”
Class 150#, 300#, 600#, 900#, 1500#, 2500#, etc.
Pressure DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, etc.
Material Grade F904L, 1.4539, UNS N08904


ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face

Chemical Composition:

C Mn Si P S Cr Mo Ni Cu
0.02 max 2 max 1 max 0.04 max 0.03 max 19 – 23 4 – 5 23 – 28 1 – 2

Mechanical Properties:

Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HRB) Brinell (HB)
490 220 35 70-90 150

Applications:

Oil and Gas Industries

Food Processing Industries

Pipeline Equipments

Power Plants

Ship Building Systems

Pulp and Paper Industries

Cement Industries

Chemical Industries


ASTM A240 F904L, UNS N08904, AWWA C207 Stainless Steel Slip On Flange, Flat Face
