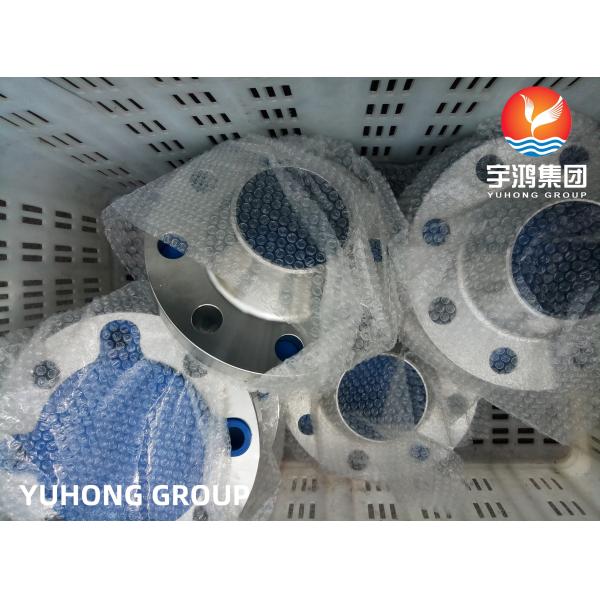

ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
Specifications
Brand Name :
YUHONG
Model Number :
F347, UNS S34700
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
5 - 60 Work Days
Packaging Details :
Ply-wood Case / Pallet
Specification :
ASTM A182, ASME SA182
Material Grade :
F347, UNS S34700
Size :
1/2"-48"
Pressure :
Class150/300/600/9001500/2500
Type :
Threaded Flange,Slip on Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange,Blind Flange
Surface treatment :
Heat treatment,Galvanized,pickeling
Technics :
Froged
Application :
Petroleum,Chemical,Fittings and Connection,Etc.
Description

ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5

ASTM A182 F347 is an austenitic steel alloy with the addition of a stabilizing element i.e. Niobium. The addition of niobium has a strengthening effect on the steel. Niobium and chromium is the reason why the A182 F347 WNRF Flanges can be used for high temperature service. One of the main advantages of this alloy is its excellent resistance to intergranular corrosion after being exposed to temperatures in the chromium carbide precipitation range. The temperature in the chromium carbide precipitation falls in between the range of 800 to 1500°F. ASTM A182 F347 Flanges also doesn't compromise its excellent mechanical properties such as its higher creep and stress rupture.

Equivalent:

STANDARD UNS WERKSTOFF NR. JIS GOST EN
F347 S34700 1.4550 SUS 347 08Ch18N12B X6CrNiNb18-10

Specifications:

Specification ASTM A182, ASME SA182
Manufacturing Process Hot Forging / Rolling / Machining
Grades 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc.
Outer Diameter 1/2" To 48"
Pressure Class Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500#
Schedule SCH 10s To SCH XXS or As Per Custom Requirement
Facing Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Dimension ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
Types Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom as per Drawing etc.

ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5

Chemical Composition:

Chromium 17 min.-19 max.
Nickel 9 min.-13 max.
Carbon 0.08
Manganese 2
Phosphorus 0.045
Sulfur 0.03
Silicon 0.75
Columbium & Tantalum 10 x (C + N) min.-1 max.
Iron Bal.

Mechanical Properties:

Density 8 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000, MPa – 515
Yield Strength (0.2%Offset) Psi – 30000, MPa – 205
Elongation, min. 40 %

Applications:

Oil and Gas Plants

Food Processing Plants

Pipeline Equipments

Power Industries

Ship Building Equipments

Paper and Pulp Industries

Cement Industries

Chemical Industries

ASTM A182 F347, UNS S34700 Stainless Steel Weld Neck Flange, Raised Face, ASME B16.5
