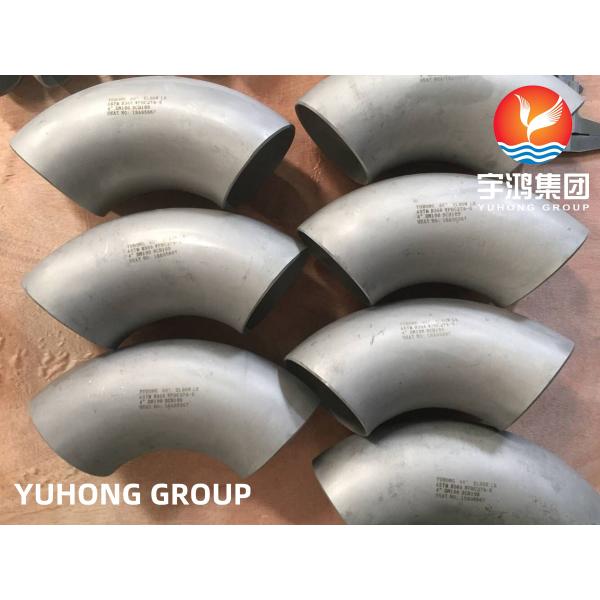

Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
Specifications
Brand Name :
YUHONG
Model Number :
ASTM B366 WPHC276-S
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Client's Requirements
Delivery Time :
5 - 90 Work Days
Packaging Details :
Ply-Wooden Case / Pallet
Standard :
ASTM B366, ASME SB366
Material Grade :
WPHC276-S
Type :
Elbow, Nipple, Pipe Threaded, Reducer, Tee, Etc.
Degree :
45Deg, 90Deg, 180Deg
Radius :
Long Radius, Short Radius
Size :
Customized Size,1/2''-48''(DN15-DN1200)
Connection :
Welding,Female,Male
Application :
Construction,Gas and Oil Pipes,Air,Steam,Petroleum Gas Water
Description

Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow

Hastelloy C276 is a nickel, chromium, and molybdenum wrought alloy. Hastelloy C276 pipe fittings have high resistance to corrosion along pitting and crevice corrosion. The fittings made from this alloy have excellent formation and welding properties. These fittings are widely used in chemical industries, paper & pulp industries, pollution control, and waste systems.

The Hastelloy C276 can be defined as a wrought corrosion-resistant alloy which helps to degrade corrosion resistance. The Hastelloy C276 Pipe Fittings have highly resistant to oxidizing and reducing agents, making them ideal for corrosive environments. The ASTM B366 UNS N10276 Fittings are widely used in the chemical processing and petrochemical industries. The Hastelloy C-276 Fittings are durable in the industries.

Hastelloy C276 Pipe Fittings have excellent resistance to corrosion in harsh environments, making them ideal for being used in industries such as chemical processing, oil and gas, and marine. C276 pipe fittings can withstand high temperatures and pressures, which makes them suitable for being used in high-stress applications. Hastelloy C276 pipe fittings are highly durable and have a long lifespan, reducing the need for frequent replacements.

Specifications ASTM B366 /ASME SB366
Size Range Welded: 1/2″ – 48″
Seamless: 1/2″ – 10″
Connection Welding
Radius of bending R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D
Manufacturing process Forge, Press, Cast, Push etc.
Thickness SCH10 To SCH XXS
Pressure Ratings 150#, 2000#, 6000#, 3000#, 9000#
End Connections: Socket Weld and Threaded
Types Tees, Elbows, Pipe Caps, Stub Ends, Crosses, Bends, Reducers
Dimensions ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10

Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow

Equivalent Grade:

STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

Features:

1.Excellent corrosion resistance and oxidizing environments.

2.Good resistance to pitting and stress-corrosion cracking.

3.Maintains corrosion resistance in welded joints.

Chemical Composition:

Ni C Mo Mn Si Fe P S Co Cr
Bal 0.01max 15 – 17 1 max 0.08 max 4 – 7 0.04 max 0.03 max 2.5 max 14.5 – 16.5

Mechanical Properties:

Density, g/cm3 Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation, %
8.89 1370 °C(2500 °F) Psi – 52,000, MPa – 355 Psi – 115000, MPa – 790 40

Applications:

Plumbing

Fertilizers

Construction

Power Plants

Petroleum Industry

Fabrication Industry

Chemical Industries

Oil & Gas Industry

Nickel Alloy Pipe Fittings ASTM B366 WPHC276-S Hastelloy C276 Buttweld 90Deg LR Elbow
