Specifications
Brand Name :
YUHONG
Model Number :
ASTM A182
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
2 PC
Price :
1-100000 USD
Payment Terms :
T/T, L/C
Supply Ability :
1000 tons/month
Delivery Time :
10-65 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
Stainless Steel
Product :
Flanges
Standard :
ASTM A182
Grade :
F317 / F317L
Type :
Blind/ Threaded /Slip On /Socket Welded/ Welding Neck/ Lap Joint Flange
Process :
Forged, Drilling/Bending/Stamping, Casting, Heating Treament
Description

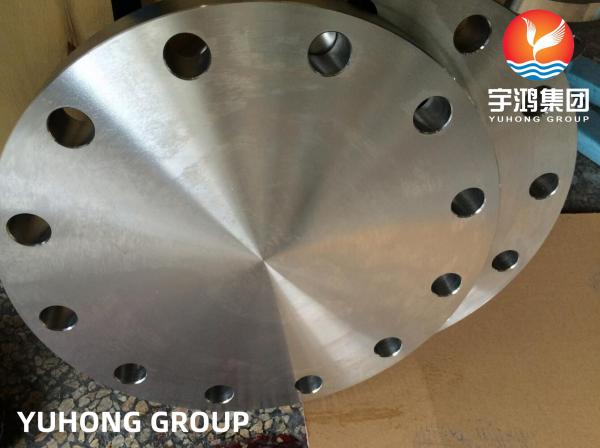

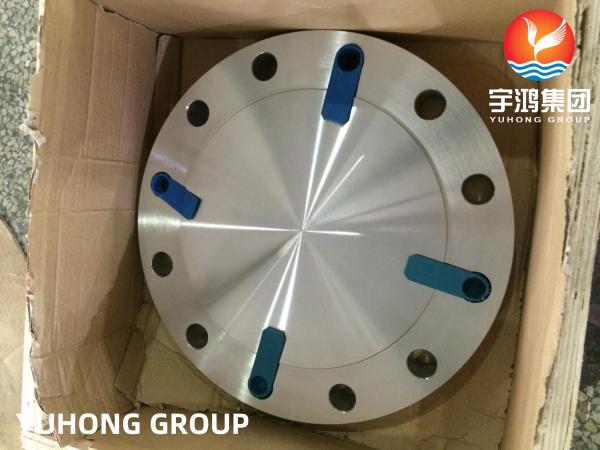

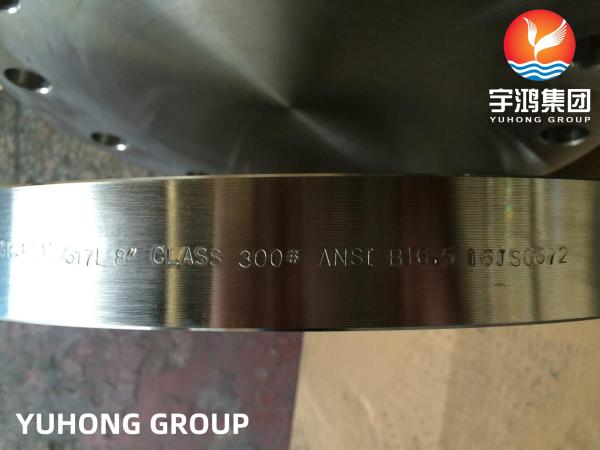

ASTM A182 F317 F317L Blind RF SS Forged Flange Bridas

YUHONG Group offers ASTM A182/ASME SA182 F317 / F317L Stainless Steel Forged Flanges.

This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.

Compared with conventional stainless steel, A182/SA182 F317/F317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance, stronger chemical corrosion resistance.Therefore, this steel F317/F317L is widely used in petroleum, chemical, pharmaceutical, food and other fields.

Specification of ASTM A182 F317 / F317L

Type Blind;Welding-Neck;Thread;Plate;Slip-On;Socket-Weld,etc
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/2″ to 48″NB
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Flange Delivery Condition As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined
Flange Dimension Standard Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48
Flange Value Added Service Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating Flanges Face Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Flange Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector

Tests Required

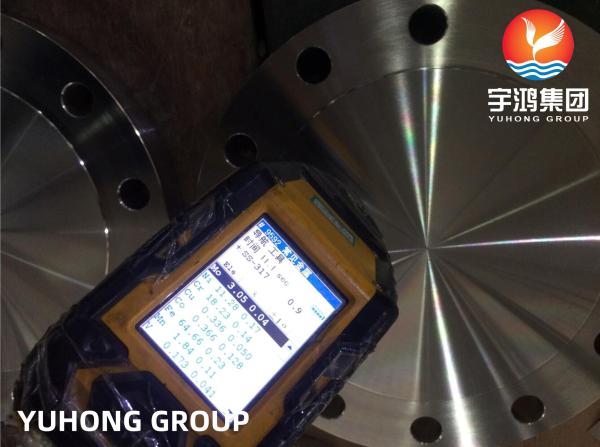

Hardness Tests/ Tension Tests/ Grain Size/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests

ASTM A182 Pipe Flange Equivalent Material

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317 1.4449 S31700 SUS 317 –
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

Chemical Composition of ASTM A182 F317 / F317L

ELEMENT COMPOSITION (%) of F317 COMPOSITION (%) of F317L
Carbon 0.08

0.03
Manganese 2.00 2.00
Phosphorus 0.045 0.045
Sulfur 0.03 0.03
Silicon 1.00 1.00
Nickel 10.0-14.0 11.0-15.0
Chromium 16.0-18.0 18.0-20.0
Molybdenum 2.0-3.0 3.0-4.0

Tensile and Hardness Requirements of ASTM A182 F317 / F317L

ASTM A182 F317

Tensile Strength Yield Strength (0.2%Offset) Elongation Reduction of Area
Psi – 75,000 , MPa – 515 Psi – 30,000 , MPa – 205 30 % 50 % min

ASTM A182 F317L

Tensile Strength Yield Strength (0.2%Offset) Elongation Reduction of Area
Psi – 70,000 , MPa – 485 Psi – 25,000 , MPa – 170 30 % 50 % min

Applications of Blind Flanges

  • Fabrication Industry

  • Paper & Pulp Industry
  • Pollution-Control Equipment

  • Natural Gas Industry

  • Heating

  • Chemical Industry - Processing

  • Oil And Gas Well Piping
  • Nuclear Fuel Reprocessing
  • Acid Production

  • Water Pipeline Industry
