Specifications
Brand Name :
YUHONG
Model Number :
ASTM A179, ASME SA179+AL1060
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
100 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
10-90 Work Days
Packaging Details :
Ply-Wooden Case / Iron Case / Bundle with Plastic Cap
Tube Standard :
ASTM A179, ASME SA179
Fin Material :
Aluminum 1060
Type :
Embedded G Type Finned Tube
Tube material :
Carbon Steel,Stainless Steel,Copper ,Alloy Steel,Etc
Fin height :
Up to 40 mm
Tube length :
18 meters max
Fin pitch :
2-14mm
Application :
Heater Parts,Refrigeration Parts,heat exchanger,Cooler,Fluid Cooling
Description

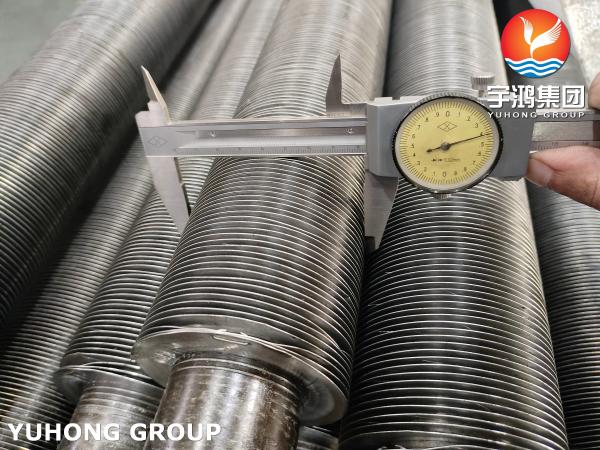

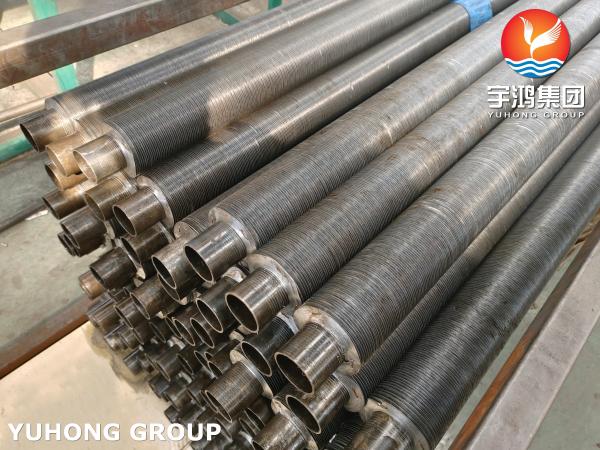

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Embedded G Type Finned Tube

What is Embedded Fin?

Embedded “G Type” Finned tube is made with the fin strip wounded into a machined groove and securely locked into place by back filling with base tube material. This technique ensures maximum heat transfer and a temperature of working until 450C°.

The G Type Finned Tube is known as Embedded Fin Tube. This type of finned tubes is widely used in the rapplications of higher operating temperature and relatively lower corrosive atmosphere Fins are manufactured by embedding the fin stripS into a groove formed on the base tube. Fins are allowed to be placed in the groove and then the back filling of the groove is carried out to ensure firm adherence of the fins to the base tube. Due to this process, this type of Fin Tubes is also known as ‘G’ Fin tube or Grooved Finned Tube.

Advantages Of Embedded G Type Finned Tubes:

High fin stability

Excellent heat transfer

High operating temperature

Specifications:

Base Tube Material Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit)
Specification and Grade ASTM A179, A192, A210 A1, A210 C, A334 Gr. 6, A213 T5, T9, T11, T22, T91, 304, 304L, 310s, 316, 316L, 321, 347, ASTM A312, ASTM A106 Grade B, P235GH, P265GH, A335 P5, P9, P11, P22, P91 Etc.
Base Tube Outside Diameter 20 mm to 219 mm
Base Tube Thickness 2.11 mm And Above
Base Tube Length 500 mm To 15000 mm
Fin Density Up to 1023 FPM ( 26 FPI )
Bare Ends As per Client Requirement
Fin Tubes Types Extruded Fin Tube, Low Fin Tube, Embedded Fin Tube, High Frequency Welded Fin Tube, Studed Fin Tube, High Fin Tube, ‘G’ Type Fin Tube, ‘L’ Type Fin Tube, LL Fin Tube, ‘KL’ Type Fin Tube

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Embedded G Type Finned Tube

Chemical Composition:

C Mn P S Si
0.06-0.18 0.27-0.63 0.035 max 0.035 max 0.25 max

Mechanical Properties:

Tensile Strength Yield Strength Elongation Hardness
≥325 Mpa ≥180 Mpa ≥35% ≤72 HRB

Applications:

Power Generation

Petroleum Industry

Fabrication Industry

Oil & Gas Industry

Fertilizers

Electronics

Chemical & Petrochemicals Industries

Pharmaceutical Equipment

Sea Water Equipment

Heat Exchangers & Condensers

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Embedded G Type Finned Tube
