Specifications
Brand Name :
YUHONG
Model Number :
ASTM A106 GR.B
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
1000KGS
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
1000 TONS/ YEAR
Delivery Time :
10-75DAYS

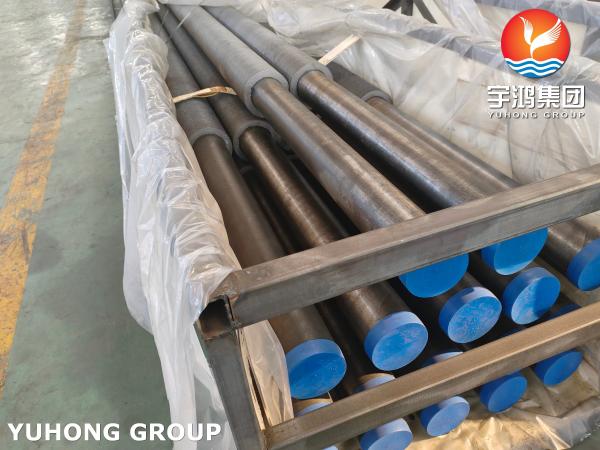

Packaging Details :
Ply- Wooden Case/Plastic Bag / Plastic Cap
Fin type :
High Frequency Welded(HFW)
Fin Material :
Carbon steel(A106 Gr.B)
Fin Thickness :
1.5-3.5mm
Fin Height :
5-30mm
Description

ASTM A106 HF Welded Fin tube Carbon Steel Fin Tube Manufacturer

High Frequency Welded fin tube also called solid type fin tube,use steel or stainless steel strip directly welded to tube surface by HFW.Can improving heat transfer efficiency much more than bare tube.Due to the tight welding of the fins to the base tube, these finned tubes are often used in vibrating conditions.Fin type have Serrated fin and flat fin.

Base tube material:

stainless steel, carbon steel, alloy steel

ASME SA213/ASTM A213 TP304/304L TP316/TP316L TP321 TP310S TP317,

ASME SA106/ASTM A106 Gr B Gr C,ASME SA179/ASTM A179,ASME SA192/ASTM A192

Fin material:

Alloy steel, Stainless steel High Frequency Welded fins tube, carbon steel High Frequency Welded fins tube Duplex High Frequency Welded fins tube super duplex High Frequency Welded fins tube Air cooler fins tube, Air preheater fins tube.

Extruded fins tube Serrated fin tubes L Type fins tube G Type fins tube LL Type fins tube H Type fins tube KL Type fins tube HFW fin tube laser welded fin tube.

Base Tube Details

Tube O.D.: 16 to 273 (mm) 3/8” to 10”(NPS)
Tube Wall Thk.: 2 to 28.6 (mm) 0.08” to 1.1”
Tube Length: ≤28,000 (mm) ≤92 ft
Fin Thk.: 0.5 to 3.5 (mm) 0.02” to 0.14”
Fin Height: 8 to 35 (mm) 0.31” to 1.3”
Fin Pitch: 3 to 333 FPM 1 to 8 FPI
Fin Type: Solid, “U”or“V” Serrated
Fin Material:

C.S. (common grade: 08F, SPCC)

S.S. (common grade: AISI 304, 316, 409, 410, 321,347 )

A.S.
Tube Material:

C.S. (common grade: A106 Gr.B, A210, A192)

S.S. (common grade: TP304, 316, 321, 347 )

A.S.(common grade: T/P5,9,11,22,91 )

Duplex Steel(most common grade: S32205 etc. )

Base pipe O.D: 15.88-165mm

Fin height: 6-50mm

Fin thickness: 0.3-0.5mm

Fin pitch: as customer's request.

End: Plain Ends, Beveled Ends

No fin area on both side: As Customer's request and drawing

ASTM A106 High Frequency Welded Fin Tube Carbon Steel Soild Fin Tube Manufacturer

Application:

  • Air Cooler
  • Charge Air Chiller
  • Condenser
  • Evaporator
  • Fluid Cooler
  • Gas Cooler
  • Oil Cooler
  • Radiator
  • Refrigeration
  • Steam to Air Heat Exchanger
  • superheate
  • etc.

ASTM A106 High Frequency Welded Fin Tube Carbon Steel Soild Fin Tube Manufacturer
