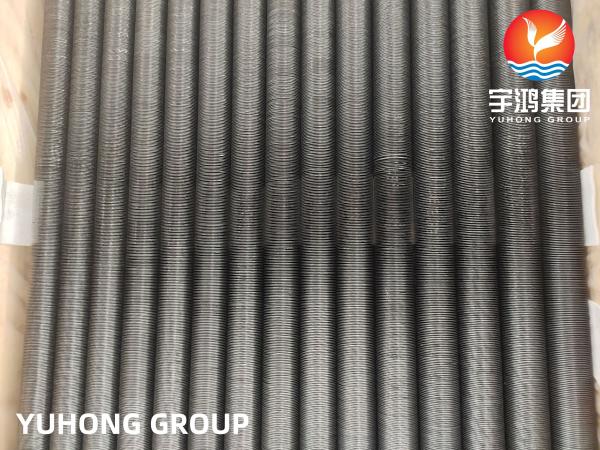

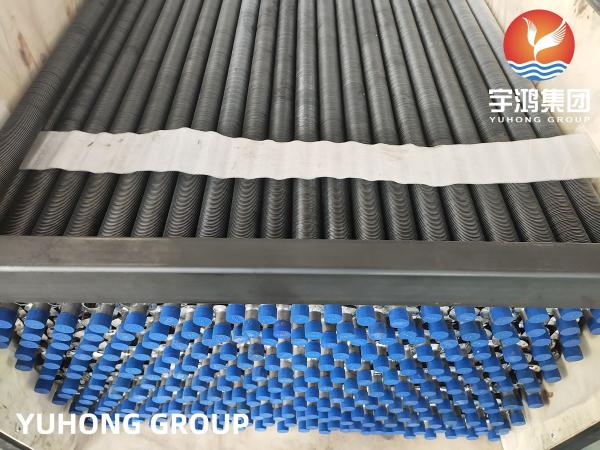

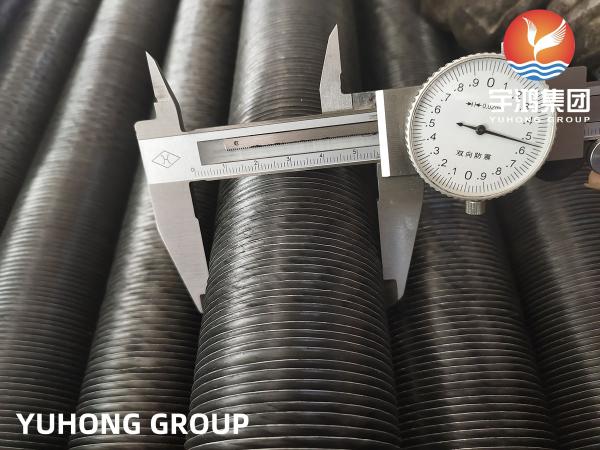

ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
Specifications
Brand Name :
YUHONG
Model Number :
EMBEDDED G-FIN TUBE
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Price :
NEGOTIABLE
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
100 tons per month
Delivery Time :
Depending on QTY

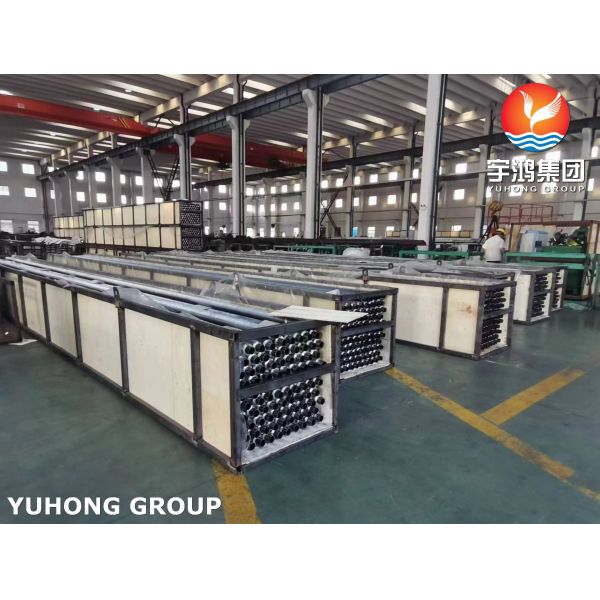

Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SA179 / ASTM A179
Type :
Fin Tube Heat Exchanger Tube,Stainless Steel Heating Equipment
Application :
Heater Parts,Refrigeration Parts,heat exchanger,Cooler,Fluid Cooling
Tube material :
Carbon Steel,Stainless Steel
Fin material :
carbon steel pipe with aluminium spiral fin
Fin height :
16mm max
Description

ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler

What are finned tubes used for?

Finned tubes are the main components of heat exchangers. They are a series of tubes where fins have been added on the outside to increase the contact area with the outside fluid, to exchange heat and between the fluid inside the tube and the fluid outside the tube. Finned tubes are elongated aluminium cladded carbon steel flat tubes with brazed aluminium fins.

G Type Embedded Finned Tube is combined with two different materials


Core tube material: carbon steel, low alloy steel, stainless steel, brass, copper, copper-nickel alloy, aluminum bronze, nickel alloy.
1. Carbon steel: A179, A192, SA210 Gr A1/C, A106 Gr B
2. Stainless steel: TP304/304L, TP316/TP316L/316Ti, A789 S31803/S2205
3. Copper: UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10


Fin material:


1. Aluminum (Alu.1100, Alu.1060)
2. Copper.
3. Steel

Chemical Components (%) of SA179 G Type Embedded Aluminum Fin Tubes

C

Si

Mn

P

S

Mo

Cr

V

0.06-0.18

/

0.27-0.63

≤0.035

≤0.035

/

/

/

Mechanical Properties of SA179 G Type Embedded Aluminum Fin Tubes

Tensile
Strength (Mpa)

Yield
Strength (Mpa)

Elongation
(%)

Hardness
(HRB)

≥325

≥180

≥35

≤72

Quality Control for G Type Embedded Finned Tube
Inspection and Tests Performed


Chemical Composition inspection,
Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test),
Surface and Dimension Test,
No-destructive Test,
Hydrostatic Test.

Application

SA179 G Type Embedded Aluminum Fin Tubes are widely used in industries such as petroleum, chemical, medical, food, light industry, machinery, instrument, include industrial pipeline and mechanical structure parts, etc.

ASME SA179 G Type Embedded Finned Tube With Aluminium Fin For Air Cooler
