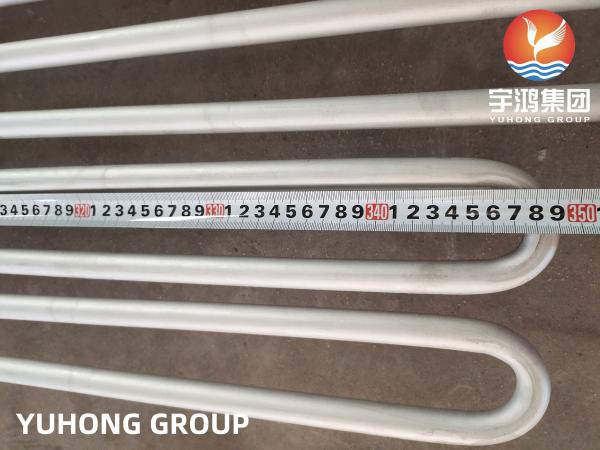

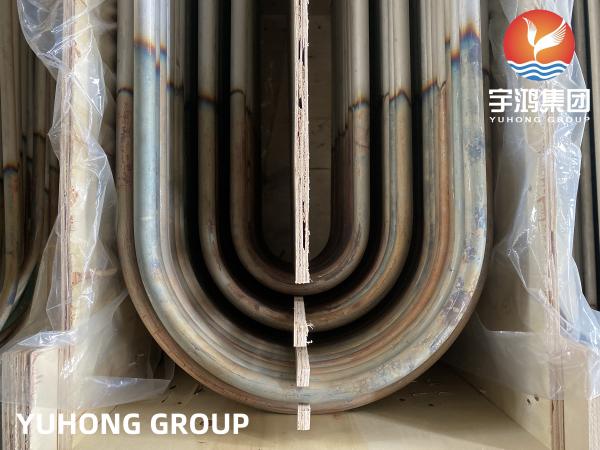

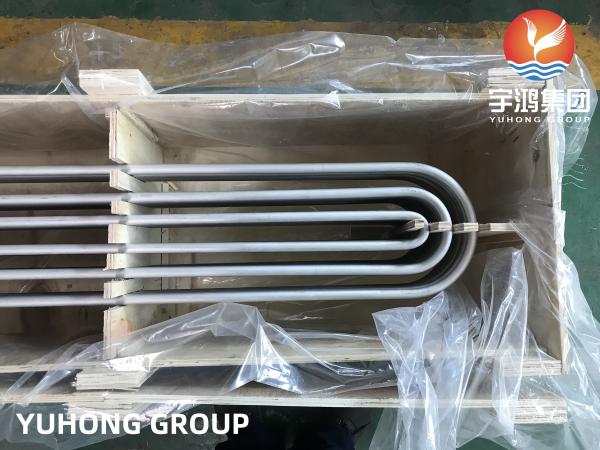

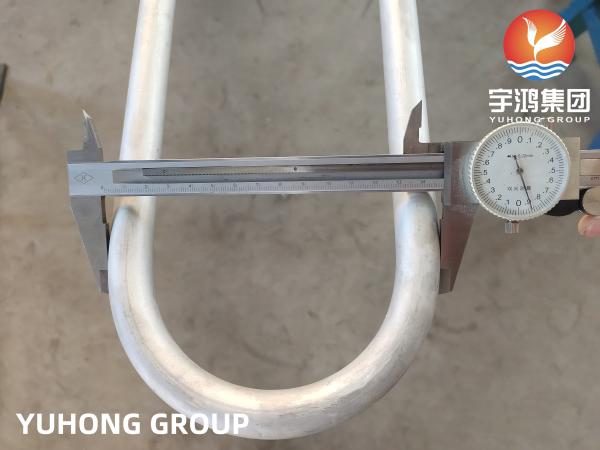

ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
Specifications
Brand Name :
YUHONG
Model Number :
TP304, 1.4301, UNS S30400
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
100 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
10 - 90 Work Days
Packaging Details :
Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap
Standard :
ASTM A213, ASME SA213
Material Grade :
TP304, 1.4301, UNS S30400
Prouduct Name :
Stainless Steel U Bend Tube
Ends :
Bevled End, Plain End, Thread End
NDT :
ET,UT,PT,HT
Applications :
Heat Exchanger, Boiler, Petroleum, Condenser, Etc.
Description

ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube for Heat Exchanger

ASTM A213 TP304 Stainless Steel U Bend Tube made up of an 18/8 chromium nickel alloy is austenitic in nature. This material has strong corrosion resistant to some extent in general corrosive applications and has heat resistant. The TP304 Stainless Steel Tube is used in applications such as water lines in domestic applications, desalination and marine applications, and industrial applications such as petroleum and petrochemical industries.

The ASTM A213 TP304 Stainless Steel Seamless U Bend Tube is austenitic stainless steel. It is most versatile and also widely used metal. These Tubes have good corrosion resistance to the different range of corrosive surroundings. TP304L and TP304 stainless steel grade have excellent machinability. TP304 stainless steel is used mostly for making tools and parts that needed for effective performances.

Specifications:

Specification ASTM A213, ASME SA213
Size 1 / 8" NB - 24" NB
Types Seamless - Hot Rolled / Cold Drawn
Length Single Random, Double Random & Required Length
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types Cold Drawn / Hot Finish / Cold Finish
Form “U” Shape
Ends Plain End, Beveled End, Treaded End

Equivalent:

Grade UNS No Old British Euronorm SS JIS
BS En No Name
TP304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304

ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger

Chemical Composition:

Element TP304, %
C ≤0.08
Mn ≤2
P ≤0.045
S ≤0.03
Si ≤1
Cr 18-20
Ni 8-11

Mechanical properties:

Tensile Stress (MPa) min Yield Stress 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HRB) max Brinell (HB) max
515 205 35 92 201

Physical properties:

Density (g/cm3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C 100°C 500°C
8 193 17.2 17.8 18.4 16.2 21.5 500 720

Applications:

Automotive Industry

Food and Beverage Industry

Marine Industry

Pharmaceutical Industry

Oil and Gas Plants

Chemical Industry

Fluid and Gas Transfer Equipments

ASTM A213 TP304, 1.4301 Stainless Steel Seamless U Bend Tube For Heat Exchanger
