EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
Specifications
Brand Name :
YUHONG
Model Number :
EN 20025-2 S235JR Carbon Steel Baffle Plate
Certification :
ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply wooden case / Pallet
Product Name :
Carbon Steel Baffle Plate
Standard :
EN 20025-2
Material :
S235JR
Shape :
According to the client's request
Size :
According to the client's request
process :
forged, drill
Application :
Heat exchanger, Boiler, Pressure vessel, Steam turbine, large central air conditioning and other industries.
High Light :
S235JR Carbon Steel Baffle Plate, EN 20025-2 Support Plate
Description

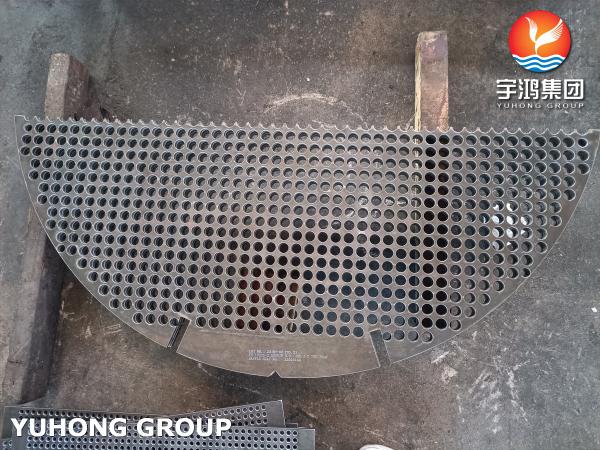

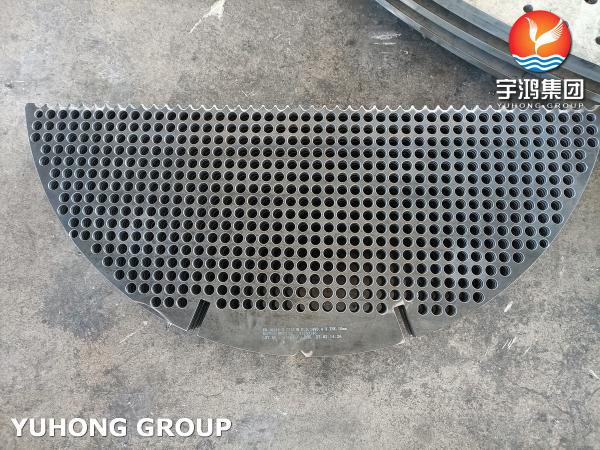

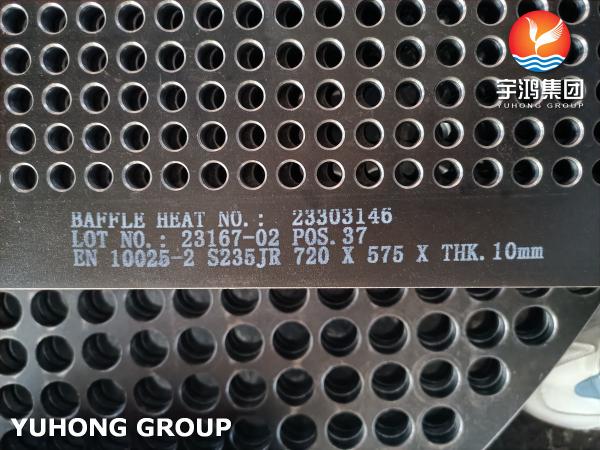

Forged EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger

Structural steels are the most widely used steels because of their sufficient qualities and comparatively low price. This combination makes them useful in different sectors.The EN-10025-2 Steel Plate is designed with a superior composition of carbon, silicon, manganese, phosphorous, sulfur, and nitrogen. S235JR is the grade having the lowest strength and very durable that can work well in different environments. The S235jrg2 En 10025 grade has a tensile strength between 360 to 510mpa with a yield strength of 235 N/mm2.

En 10025-2 Chemical Composition

EN 10025 C(max) Mn% max Si max P max Cu% max S% max N% max
16<t≤40 t≤16 t>40
S235JR Plates 0.17 0.17 0.20 1.40 - 0.035 0.55 0.035 0.012
S235J0 Plates 0.17 0.17 0.17 1.40 - 0.030 0.55 0.030 0.012
S235J2 Plates 0.17 0.17 0.17 1.40 - 0.025 0.55 0.025 -
S275JR Plates 0.21 0.21 0.22 1.50 - 0.035 0.55 0.035 0.012
S275J0 Plates 0.18 0.18 0.18 1.50 - 0.030 0.55 0.030 0.012
S275J2 Plates 0.18 0.18 0.18 1.50 - 0.025 0.55 0.025 -
S355JR Plates 0.24 0.24 0.24 1.60 0.55 0.035 0.55 0.035 0.012
S355J0 Plates 0.20 0.20 0.22 1.60 0.55 0.030 0.55 0.030 0.012
S355J2 Plates 0.20 0.20 0.22 1.60 0.55 0.025 0.55 0.025 -
S355K2 Plates 0.20 0.20 0.22 1.60 0.55 0.025 0.55 0.025 -
S450J0l Plates 0.20 0.20 0.22 1.70 0.55 0.030 0.55 0.030 0.025

Mechanical Property of EN-10025-2 Steel Plate

EN 10025-2 Minimum yield strength MPa Thickness(mm)
63<t≤80 16<t≤40 ≤16 40<t≤63 100<t≤150 80<t≤100 200<t≤250 150<t≤200 250<t≤400
S235JR Plates 215 225 235 215 195 215 175 185 -
S235J0 Plates 215 225 235 215 195 215 175 185 -
S235J2 Plates 215 225 235 215 195 215 175 185 165
S275JR Plates 245 265 275 255 225 235 205 215 -
S275J0 Plates 245 265 275 255 225 235 205 215 -
S275J2 Plates 245 265 275 255 225 235 205 215 195
S355JR Plates 325 345 355 335 295 315 275 285 -
S355J0 Plates 325 345 355 335 295 315 275 285 -
S355J2 Plates 325 345 355 335 295 315 275 285 265
S355K2 Plates 325 345 355 335 295 315 275 285 265
S450J0l Plates 390 430 450 410 380 380 - - -

Equivalent Standard of EN-10025-2 Steel

Steel Standard S235J0 S235JR S275JR S235J2 S275J0 S355K2 S355JR S275J2 S355J0 S355J2
USA - - A529 A36 - A656 A572 - - A656
Japan SM400B SM400A
SS400		 SS400 - - SS490YA SM490A
SS490		 - SS490B SS490YA
Germany St37-3U RSt37-2 St 44-2 - St44-3/3U St52-3N - - St52-3U St52-3N
China Q235C Q235A
Q235B
Q235D		 Q275Z Q235D Q275 Q345D Q345C Q275 16Mn Q345D

Other Materials

Type of materials Technical requirements
* according to
Duplex Stainless Steel ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347
Carbon Steel ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2
Alloy Steel ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3
Non Ferrous
Titanium ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16
Copper Nickel ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30)
Brass, Al-brass ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200
Nickel Alloys ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825
UNS 6600, UNS 6601, UNS 6625
Alloy 20 ASTM/ASME SB472 UNS 8020
Hastelloy ASTM/ASME SB564, UNS10276 ( C 276 )
Claded materials ASTM/ASME SB898, SB263, SB264 or closer
explosion cladding, making materials of 2 in 1 or 3 in 1.
Titanium- Steel, Nickel-Steel,Titanium- Copper,
Stainless Steel- Carbon Steel, Alloys- Steel etc.

Application
boilers
reservoirs
hydraulic tanks
pressure vessels
wood burners
steam turbines
large central air conditioning units

EN 10025-2 S235JR Carbon Steel Baffle Support Plate For Heat Exchanger
