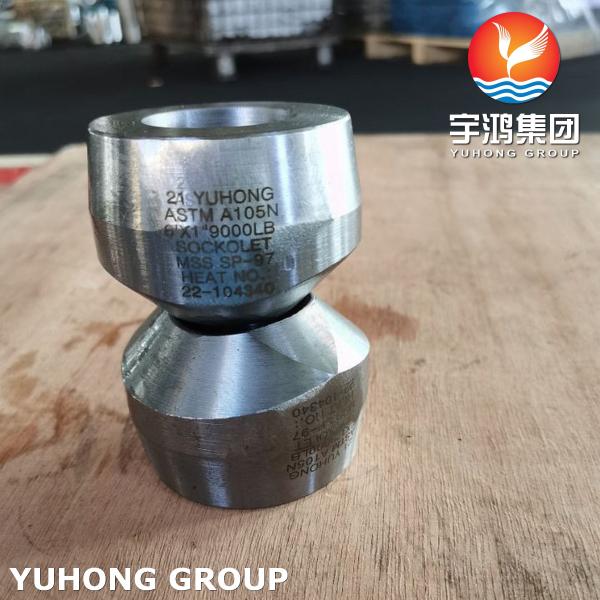

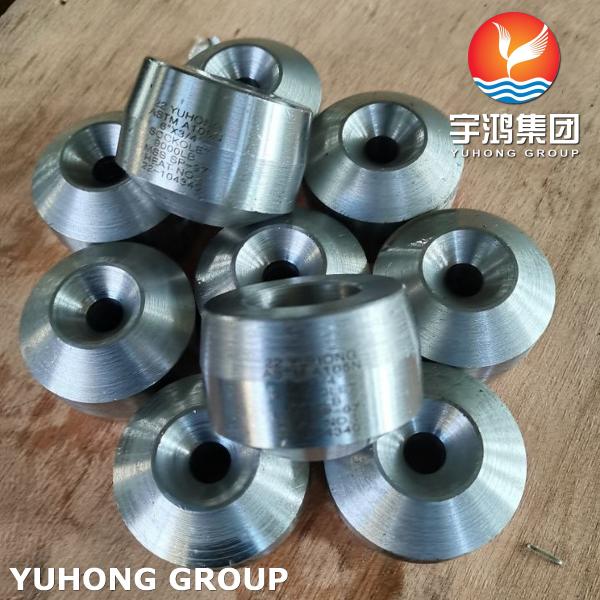

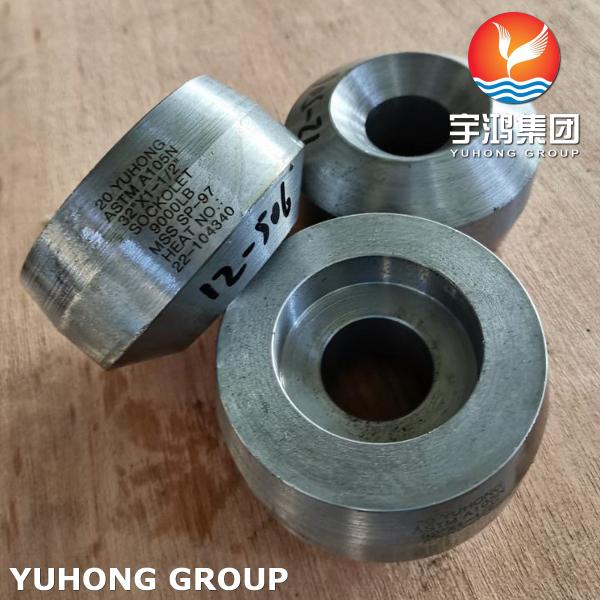

ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A105, ASTM A105N
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
MOQ :
100 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According to Clients' Requirement
Delivery Time :
15-35 Days
Packaging Details :
Ply-wooden Case / Pallet / Carton
Place of Origin :
China
Standard :
ASTM A105, ASTM A105N
Types :
Sockolet, Weldolet, Threadolet, Nipolet ......
Sizes :
1/8" - 4", Or As Client's Request
Class Rating :
3000LBS, 6000LBS, 9000LBS
Technics :
Forged
Applications :
Chemical,Food Processing,Oil And Gas, Petrochemical,Etc.
Description

ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97

Sockolet is a type of forgrd fitting that is used to connect a pipe to a larger diameter pipe or vessel. A sockolet is typically made from a forged carbon steel material such as ASTM A105/A105N. ASTM A105, A105N carbon steel sockolets are commonly used in high-pressure piping systems where corrosion resistance and strength are important. Carbon steel forged sockolets are available in various sizes and pressure ratings to suit different piping applications. They are typically used in industries such as oil and gas, petrochemical, power generation, and chemical processing. ASTM A105 carbon steel forged sockolets are a reliable and durable choice for connecting pipes in demanding environments. It is important to ensure that the fittings are installed correctly and maintained properly to ensure optimal performance and ety.

ASTM A105, A105N Carbon Steel Sockolets are typically made from forged carbon steel material, which is known for its high strength and durability. These Sockolets are designed to provide a strong and leak-proof connection between a pipe and a branch line, allowing for easy branching off of pipelines. ASTM A105/A105N Carbon Steel Sockolets have a high resistance to corrosion and can withstand high pressures and temperatures, making them suitable for a wide range of industrial applications. These Sockolets are available in various sizes and pressure ratings to meet the specific requirements of different piping systems. ASME SA105N/SA105 Carbon Steel olets are commonly used in oil and gas, petrochemical, chemical, and power generation industries for branching off pipelines and creating connections in piping systems. ASTM A105/A105N Carbon Steel Sock Weld Oulets are easy to install and require minimal maintenance, making them a cost-effective and reliable solution for piping applications. The key features of ASTM A105/A105N Carbon Steel Sockolet include its high strength, excellent corrosion resistance & suitability for high-pressure and high-temperature applications.

Standard Specification:

Specification ASTM A105 / ASME SA105, ASTM SA105N / ASME SA105N
Dimensions ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
Size 1/8"-4" (DN6-DN100)
Connect Type Welded, threaded, BW, SW
Type Elbolet, Latrolet, Sweepolet, Coupolet, Brazolet, Weldolet, Threadolet, Sockolet, Insert Weldolet, Flexolet, Nipolet

ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97

Material Grades:

Stainless Steel ASTM A182 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L
Duplex & Super Duplex Steel ASTM A182 F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950.
Carbon Steel ASTM A105, ASTM A105N, ASTM A350 LF 2
Alloy Steel ASTM A182 F5, F9, F11,F22, F 91
Copper Alloy Steel ASTM B111 UNS C10100, C10200, C10300, C10800, C12000, C12200, C70600 C71500, ASTM B466 UNS C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30)
Nickel Alloy ASTM B564 UNS N02200 (NICKEL 200) , UNS N02201 (NICKEL 201 ) , UNS N04400 (MONEL 400) , UNS N08020 (ALLOY 20) , UNS N08825 (INCONEL 825) , UNS N06600 (INCONEL 600) , UNS N06601 (INCONEL 601) , UNS N06625 (INCONEL 625) , UNS N10276 (HASTELLOY C276)

Chemical Composition:

C Mn Si Ph Su Mo Cr Ni
0.08 – 0.15 0.30 – 0.60 0.15 – 0.50 0.025 max 0.025 max 0.90 – 1.10 2.00 – 2.50 0.5 max

Mechanical Properties:

Tensile Strength, min 70000 Psi (485 MPa)
Yield Point, min 36000 Psi (250 MPa)
Reduction of area, min 30% min
Hardness, HB, max 187

Applications:

Power Plants

Petroleum Industry

Fabrication Industry

Oil & Gas Industry

Chemical Industry

Electronics

Construction

Petrochemical Industry

Heater

Condenser

Fired Furnace

ASTM A105, A105N Carbon Steel Forged Sockolet, Weldolet, Threadolet 9000LBS MSS SP-97
