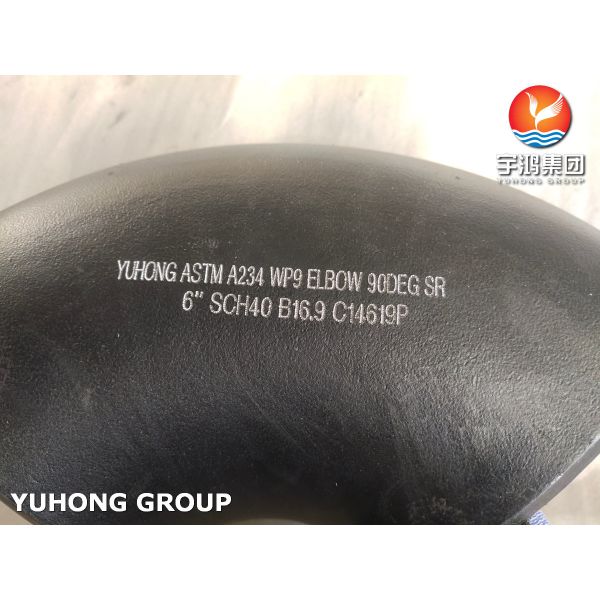

Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A234 WP11,WP22,WP5,P9,P91,P92
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C, T/T
Delivery Time :
7DAYS
Packaging Details :
PLYWOOD CASE,BUNDLE,PALLET
MATERIAL :
ASTM A234 WP11, WP22, WP5, P9,P91,P92
TYPE :
ELBOW , TEE, REDUCER, BEND ELBOW, CAP ,CROSS
OD :
1/2" NB - 48" NB.
SURFACE :
BLACK PAINTING
WT :
SCH 10S - SCH XXS
Description

ALLOY STEEL PIPE FITTINGS ASTM A234 WP9 WP5 180° LR SR ELBOW

The A234 WP9 Material is made up of carbon, manganese, silicon, sulfur, phosphorus, chromium and molybdenum in its composition. This composition allows for high pressure and high to medium temperature services with improved corrosion resistance.Alloy steel fitting can be connected to various pipes of different shapes and sizes.

Carbon Steel Pipe Fitting - Long Radius Elbow 90

Product range :

Size : 1/8"NB TO 48"NB IN

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Materials

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow

Standard

Nominal
Pipe Size		 Outside
Diameter		 Inside
Diameter		 Wall
Thickness		 Center
To End		 Pipe
Schedule		 Weight
Pounds
1/2 0.84 0.622 0.109 1.5 40 0.16
3/4 1.05 0.824 0.113 1.5 40 0.17
1 1.32 1.049 0.133 1.5 40 0.4
1 1/4 1.66 1.38 0.14 1.88 40 0.55
1 1/2 1.9 1.61 0.145 2.25 40 0.8
2 2.38 2.07 0.154 3 40 1.6
2 1/2 2.88 2.47 0.203 3.75 40 3.2
3 3.5 3.07 0.216 4.5 40 4.8
3 1/2 4 3.55 0.226 5.25 40 6.6
4 4.5 4.03 0.237 6 40 8.9
5 5.56 5.05 0.258 7.5 40 15.1
6 6.62 6.07 0.28 9 40 24
8 8.62 7.98 0.322 12 40 47.8
10 10.75 10.02 0.365 15 40 83.4
12 12.75 12 0.375 18 * 123
14 14 13.25 0.375 21 30 155
16 16 15.25 0.375 24 30 206
18 18 17.25 0.375 27 * 262
20 20 19.25 0.375 30 20 324
24 24 23.25 0.375 36 20 466
30 30 29.25 0.375 45 * 720
36 36 35.25 0.375 54 * 1,039
42 42 41.25 0.375 63 * 1,420
48 48 47.25 0.375 72 * 2,000

Extra Strong

Nominal
Pipe Size		 Outside
Diameter		 Inside
Diameter		 Wall
Thickness		 Center
To End		 Pipe
Schedule		 Weight
Pounds
1/2 0.84 0.546 0.147 1.5 80 0.26
3/4 1.05 0.742 0.154 1.5 80 0.29
1 1.32 0.957 0.179 1.5 80 0.48
1 1/4 1.66 1.27 0.191 1.88 80 0.79
1 1/2 1.9 1.5 0.2 2.25 80 1.2
2 2.37 1.93 0.218 3 80 2.1
2 1/2 2.88 2.32 0.276 3.75 80 3.8
3 3.5 2.9 0.3 4.5 80 6.3
3 1/2 4 3.36 0.318 5.25 80 8.6
4 4.5 3.82 0.337 6 80 12.5
5 5.56 4.81 0.375 7.5 80 21.2
6 6.63 5.76 0.432 9 80 34.4
8 8.63 7.63 0.5 12 80 71.3
10 10.75 9.75 0.5 15 60 111
12 12.75 11.75 0.5 18 * 158
14 14 13 0.5 21 * 201
16 16 15 0.5 24 40 270
18 18 17 0.5 27 * 348
20 20 19 0.5 30 30 422
24 24 23 0.5 36 * 604
30 30 29 0.5 45 20 997
36 36 35 0.5 54 20 1,380
42 42 41 0.5 63 * 1,880
48 48 47 0.5 72 * 2,502

  • Hot Dip Galvanizing
  • Epoxy Coating

Alloy Steel Pipe Fittings ASTM A234 WP9 WP5 180° Lr Sr Elbow
