ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
Specifications
Brand Name :
YUHONG SPECIAL STEEL
Model Number :
Heat Exchanger Stainless Steel U Bend Tube, ASTM A688,ASTM A213 , ASME SA213 , ASTM A249, ASME SA249, B163,B167, B444
Certification :
ISO9001.2018
Place of Origin :
China
MOQ :
100KGS
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons per month
Delivery Time :
10days->
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material Grade :
TP316L, TP316Ti, TP316H, TP316LN
Standard :
ASTM A213 , ASTM A269 , ASME SA213
Type :
U bend , straight , coil
Surface :
Mill Finished, Bright Annealed , Polished
NDT :
ET, UT, HT
Description

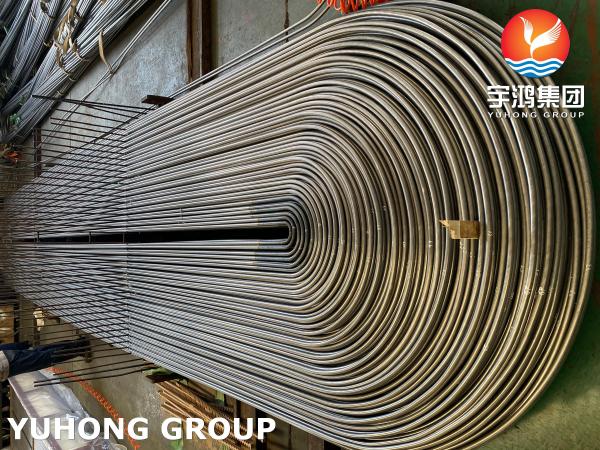

ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness

U-bends are widely used in heat exchange systems. The basis of heat exchanger equipment is

Seamless stainless steel U-tube and welded stainless steel U-bend in the key areas of strategic importance - the nuclear industry and petrochemical machinery manufacturing is crucial.

Nuclear and petrochemical machinery manufacturing.

Yuhong Special Steel has been producing U-bends since 2006 and has supplied more than 30,000 tons of stainless steel U-bends so far.

The 30,000 tons of stainless steel U-bends are sold to 35 countries.

The U-Bend Tube Comply With The Following Standards:

1. ASTM A688/ASME SA688

2. ASTM A803/ASME SA803

3. ASTM A556/ASME SA556

Technical Requirements

Straight Tubes Standard Specification For Bending:

ASME SA 213; ASME SB 163; ASME A789, ASME SA268, ASME SA269, etc.

Marking: Before Bending By Marking Machine All Over The Tube Length (Bent Section After Heat

Treatment Without Marking)

Note: Marking is also possible After Bending On The Straight Parts Of U-Bending Tube.

U-Bend Tubes:

-TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).

-ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant

Steel Grade Designed For Feed Water Boilers.

-ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For

Condensers And Heat Exchangers.

-Customer Specifications.

ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

ASME SA213 TP316Ti Stainless Steel U Bend Tube 1.65mm Min Thickness
