Specifications
Brand Name :
YUHONG
Model Number :
ASME SB111 C68700
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
10PC
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000tons/month
Delivery Time :
15-35 DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Standard :
ASME SB111
Material Grade :
UNS C68700
Type :
Seamless
Outside Diameter :
2mm~914mm
Wall Thickness :
0.2mm~120mm
Shape :
Round
High Light :
Heat Exchanger Aluminums Brass Tube, C68700 Aluminums Brass Tube, DIN17660 Aluminums Brass Tube
Description

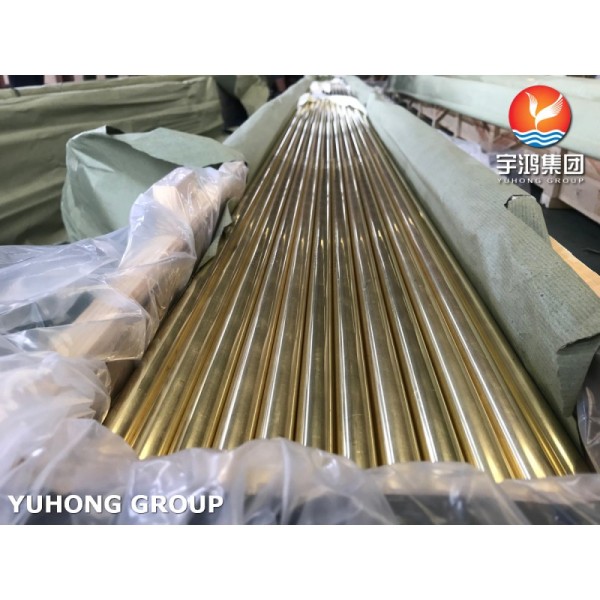

ASME SB111 C68700 Aluminum Brass Steel Tube for Marine and Land Power Station

Continuous B111 grade C68700 Aluminum Brass Pipe is robust and corrosion-resistant. In industries such as air conditioning units, heat exchanger tube, freezers, the petrochemical sector, power plants, etc., ASTM B111 C68700 Tube is frequently used.Condenser pipes frequently employ the material C68700 because it withstands the effects of salt water and black water moving at incredible velocities. The significant resistance of C68700 to compressive damage is its primary feature.

For usage in marine and terrestrial power stations with significant cooling water velocity, pipes made of this alloy are advised. In “Seawater desalting plants,” C68700 aluminum brass pipes are frequently utilized. The UNS C68700 tube is thin, has excellent heat conductivity, and has a significant of low-temperature strength.

Equivalent Material:

Material Corresponding Material Symbol
GB/T 8890 BS 2871 DIN 1785 ASTM B111 JIS H3300
Aluminum Brass HAL 77-2 CZ110 CuZn20Al2 C68700 C6870

Chemical Composition:

Elements Composition, %
Cu, incl. Ag 76.0-79.0
Al 1.8-2.5
Pb 0.07 max
Fe 0.06 max
Zn Balance
Mn 0.02-0.06

Mechanical Properties:

Standard Grade C68700
Temper Designation O61
annealed
Yield Strength [N/mm2] 18 min.(ksi)
125 min.(mpa)
Tensile Strength [N/mm2] 50 min.(ksi)
345 min.(mpa)

Length Tolearance:

Specified Length, mm Tolerance,all plus, mm
Up to 4500 2.4
Over 4500-6000,incl 3.2
Over 6000-10000,incl 4.0
Over 10000-18000,incl 9.5
Over 1800-30000,incl 13.0

Application:

• Heat Exchangers: C68700 tubes are commonly used in heat exchangers due to their excellent thermal conductivity, making them suitable for applications where efficient heat transfer is crucial.

• Condensers: These tubes are also widely used in condenser units where reliable performance in heat exchange processes is required.

• Power Plants: In power generation facilities, C68700 tubes are utilized in condenser and heat exchanger systems to enhance the efficiency of heat transfer.

• HVAC Systems: The high corrosion resistance of C68700 tubes makes them ideal for use in HVAC systems where exposure to moisture and other corrosive elements is a concern.

• Marine Applications: Due to its resistance to seawater corrosion, C68700 tubes are commonly used in marine applications such as shipbuilding and offshore structures.

ASME SB111 C68700 Aluminum Brass Steel Seamless Tube for Marine and Land Power Station

Mechanical Properties:
