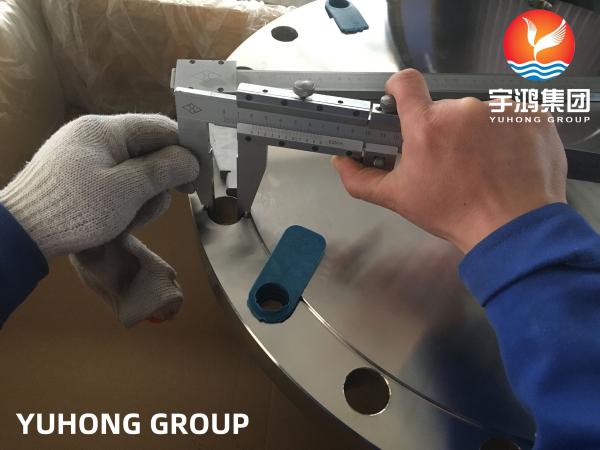

ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
Specifications
Brand Name :
YUHONG
Model Number :
F304, F304L
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
According To Clients' Request
Delivery Time :
7-50 Work Days
Packaging Details :
Ply-wooden Case / Pallet
Standard :
ASTM A182, ASME SA182
Material Grade :
F304, F304L
Size :
1/2"-48"
Pressure :
Class150-2500(PN6-PN100)
Technics :
Froged
Type :
Threaded Flange,Slip on Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange
Surface treatment :
Heat treatment,Galvanized,customize
Application :
Petroleum,chemical,fittings and connection,beer
Description

ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5

ASTM A182 F304L Stainless Steel BLRF Flanges are made up of the 18-8 stainless steel material which contains 18% chromium, 8% nickel, carbon, silicon, sulfur, manganese and phosphorus. The material has good strength and low corrosion resistance. ASTM A182 F304L is a specification for forged stainless steel pipe flanges for high-temperature service. ASTM A182 F304L is also called "18/8" which is derived from the composition of 304L stainless steel being 18% chromium and 8% nickel. It is a low carbon version of stainless steel 304. ASTM A182 F304L Stainless Steel BLRF Flanges is used to connect pipes, pumps, valves to form a piping system. It can also be used in environments sufficiently corrosive.

Specifications:

Specifications ASTM A182, ASME SA182
Size Range 1/2″ (15 NB) to 48″ (1200NB)
Standards ANSI, ASME, BS, DIN, EN, GOST, ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092
Main Types Forged / Threaded / Screwed / Plate
Types Of Flanges

Blind Ring Flange (BLRF)

Lap Joint Ring Flange (LJRF)

Socket Weld Ring Flange (SWRF)

Threaded Ring Flange

Weld Neck Ring Flange (WNRF)

Slip-On Ring Flange (SORF)

Ring Type Joint Flange (RTJF)
Pressure Ratings Class:150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS,
Production technique Forged, Heat Treated And Machined
Connect Type/ Flange Face Type Ring Type Joint (RTJ), Flat Face (FF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove
Test Hydrostatic testing machine, Direct-reading Spectrograph, Magnetic particle detector, X-ray detector,UI trasonic flaw detector,Magnetic particle detector

ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5

Equivalent Grades:

STANDARD F304L
JIS SUS 304L
GOST 03Х18Н11
UNS S30403
DIN 1.4306 / 1.4307
WERKSTOFF No. 1.4306 / 1.4307
AFNOR Z3CN18‐10
BS 3304S11
EN X2CrNi18-9 / X2CrNi19-11

Chemical Composition:

C Mn P S Si Ni Cr
0.03 2 0.045 0.03 1 8-13 18-20

Mechanical Properties:

Tensile Hardness
Strength
(MPa)		 Yield Strength
0.2% Proof
(MPa)		 Elongation
(% in
50mm)		 Hardness
Rockwell
B (HR B)		 Brinell
(HB)
485 min 170 min 40 min 92 max 201 max

Applications:

Petroleum Refining

Power Generation

Industrial Machineries

Chemical Plants

Gas & Water Pipe Line

Oil & Gas Exploration

Petrochemicals and Refineries

Nuclear and Solar Power Plants

Sugar Industries

ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
