Specifications
Brand Name :
YUHONG
Model Number :
Tube Bundle
Certification :
ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
0~1000000 USD
Payment Terms :
T/T, L/C at sight
Supply Ability :
30SETS/MONTH
Delivery Time :
Depends on quantity
Packaging Details :
Export Standard
Product Name :
Tube Bundles
Standard :
ASTM, ASME
Material :
Stainless steel, Alloy Steel, Copper Alloy
Size :
custom as per buyer's drawing requirements
Application :
Tubular Heat Exchanger, Chemical Production ,Petroleum Industry, Energy Power, Pharmaceutical
High Light :
Heat Excahnger Tube Bundles
Description

Stainless Steel Tube Bundles 316L Heat Exchanger Great heat transfer performance

What is tube bundle?

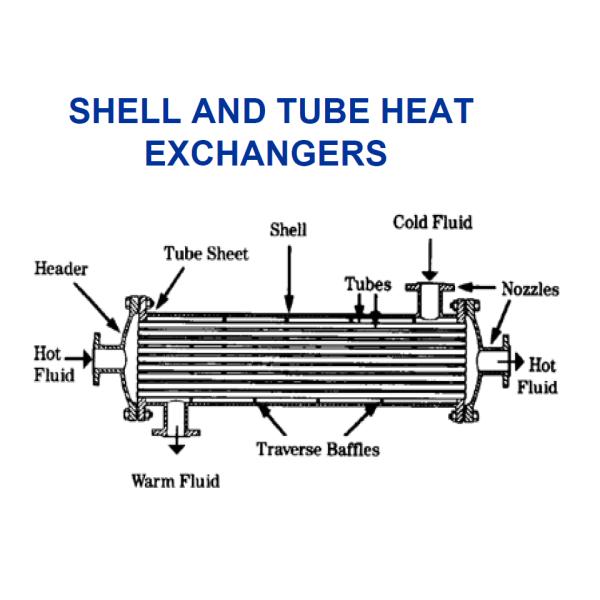

In a shell-and tube-exchanger the tube bundle is enclosed in a cylindrical shell, through which the second fluid flows.
A tube bundle is a set of tubes in a shell-and-tube heat exchanger.The tube plate at both ends of the tube bundle and the shell into one, simple structure, but only for hot and cold fluid temperature difference is not large, and the shell process does not require mechanical cleaning when the heat transfer operation. When the temperature difference is slightly larger and the shell pressure is not too high, can be installed in the shell with elastic compensation ring to reduce thermal stress.

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection

Equivalent Grades of SS316

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17‐11‐02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3

Chemical properties of SS316

Element SS 316 SS 316L
C 0.08 max 0.035 max
Mn 2.0 max 2.0 max
Si 1.0 max 1.0 max
P 0.045 max 0.045 max
S 0.030 max 0.030 max
Cr 16.00 - 18.00 16.00 - 18.00
Mo 2.00 - 3.00 2.00 - 3.00
Ni 11.00 - 14.00 10.00 - 14.00
Fe 67.845 min 68.89 min

Mechanical & Physical Properties of SS316

Element SS 316 SS 316L
Density 8.0 g/cm3 8.0 g/cm3
Melting Point 1400 °C (2550 °F) 1399 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515 Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205 Psi – 30000 , MPa – 205
Elongation 35 % 35 %

Applications

  • HVAC systems
  • Heat Exchanger
  • Oil and gas refining
  • chemical
  • Pharmaceutical manufacturing

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection

SS 316L Tube Bundles Tubular Heat exchanger great transfer corrosion protection
