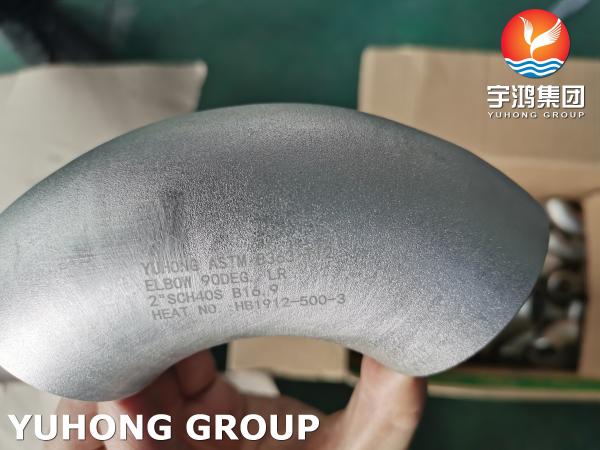

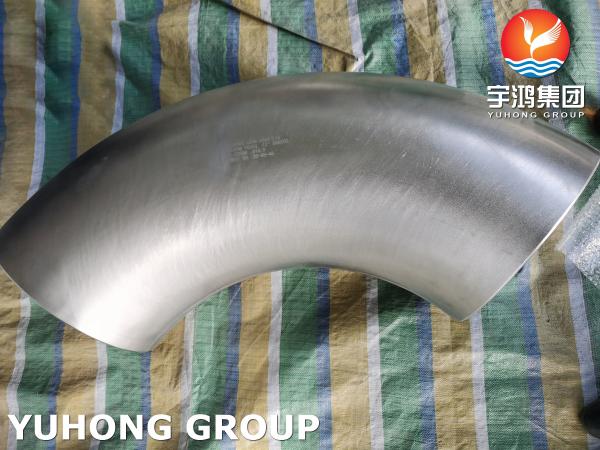

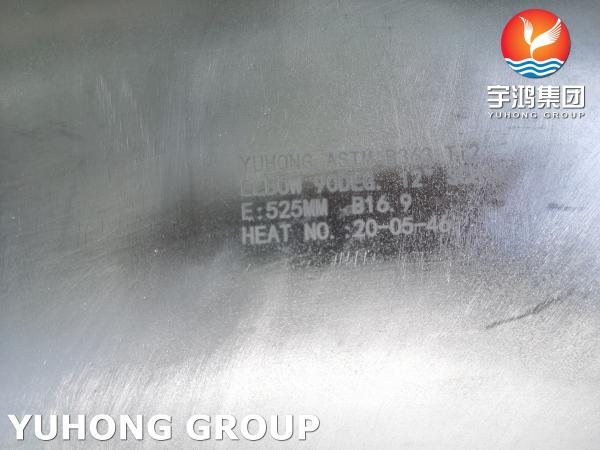

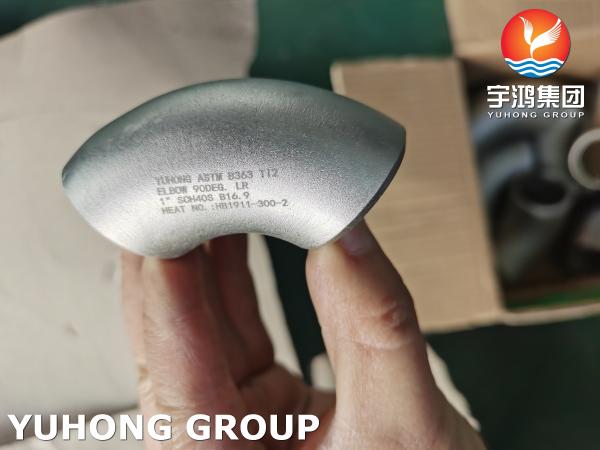

ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
Specifications
Brand Name :
YUHONG
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
China
MOQ :
1PC
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
500 tons per month
Packaging Details :
Plywood case/Pallet
Model Number :
ASTM B363 WPT2 Elbow
Standard :
ASTM B363; ASME SB363
Material :
Grade 2
Type :
Titanium Alloy Steel Buttweld Elbow
Degree :
45/90/180
Radius :
Long Radius/Short Radius
Sizes :
1/2''-48''(DN15-DN1200) or custom size
Thickness :
SCH10S-XXS
Surface :
Sand Blasting
Description

ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting​ ASME B16.9

Overview:

Titanium grade 2 elbow is a type of pipe fitting that is made from commercial pure titanium, also known as Grade 2 titanium. Grade 2 titanium is widely used due to its excellent corrosion resistance, good formability, and weldability. It contains a small amount of palladium, which enhances its corrosion resistance.

An elbow, in the context of pipe fittings, is a device that changes the direction of the flow in a piping system. It is typically used to connect two pipes of different diameters or to change the direction of fluid flow in a piping system.

When it comes to applications, titanium grade 2 elbows are commonly used in industries where corrosion resistance and strength-to-weight ratio are critical factors, such as chemical processing, marine environments, aerospace, medical implants, and more.

The specific design, dimensions, and specifications of a titanium grade 2 elbow can vary based on the intended application and industry standards. It's essential to ensure that the elbow meets the required standards and specifications for the specific application.

Overall, titanium grade 2 elbows are valued for their corrosion resistance, lightweight nature, and strength, making them a valuable component in various industrial and commercial applications.

Specification:

Standard ASTM B363 & Its equivalent ASME, DIN & EN Standard.
Grades Grade 2
Size 1/2''-48'' or custom size
Wall Thickness SCH10S to SCH.XXS
Radius SR LR
End Beveled End
Surface Sand Blasting
Packing Plywood case/Pallet

Grade C O N H Fe Other Elements each Other Elements total
WPT2 0.08 max 0.25 max 0.03 max 0.015 max 0.3 max 0.1 max 0.4 max

Grade

Tensile Strength

min, ksi (MPa)

 Yield Strength
min, ksi (MPa)		 Elongation in 2 in.
or 50mm, min (%)
WPT2 50(345) 40(275)-65(450) 20

Dimension:

ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9 ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
Nominal Size

Outside Diameter at Bevel

(mm)

Center to End

(mm)
90° Elbow 45° Elbow
DN NPS O.D. A B
LR SR LR
15 1/2 21.3 38 ... 16
20 3/4 26.7 38 ... 19
25 1 33.4 38 25 22
32 1 1/4 42.2 48 32 25
40 1 1/2 48.3 57 38 29
50 2 60.3 76 51 35
65 2 1/2 73.0 95 64 44
80 3 88.9 114 76 51
90 3 1/2 101.6 133 89 57
100 4 114.3 152 102 64
125 5 141.3 190 127 79
150 6 168.3 229 152 95
200 8 219.1 305 203 127
250 10 273.0 381 254 159
300 12 323.8 457 305 190
350 14 355.6 533 356 222
400 16 406.4 610 406 254
450 18 457.0 686 457 286
500 20 508.0 762 508 318
550 22 559.0 838 559 343
600 24 610.0 914 610 381
650 26 660.0 991 660 406
700 28 711.0 1067 711 438
750 30 762.0 1143 762 470
800 32 813.0 1219 813 502
850 34 864.0 1295 864 533
900 36 914.0 1372 914 565
950 38 965.0 1448 965 600
1000 40 1016.0 1524 1016 632
1050 42 1067.0 1600 1067 660
1100 44 1118.0 1676 1118 695
1150 46 1168.0 1753 1168 727
1200 48 1219.0 1829 1219 759
Notes:
1) Besides these, GB/T 10752, SH 3408, SH 3409, HG/T 21635, HG/T 21631, SY/T 0510, DL/T 695, EN 10253 etc.are also applied.
2) The elbow with NPS over 48 shall be made subject to the sizes agreed by purchaser and manufacturer.

ASTM B363 WPT2 Elbow Titanium Alloy Steel Buttweld Fitting ASME B16.9
