Specifications
Brand Name :
YUHONG
Model Number :
ASTM, JIS, DIN, EN
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
USD
Payment Terms :
L/C, T/T
Supply Ability :
1500 TONS PER MONTH
Delivery Time :
7 DAYS
Packaging Details :
PLY-WOODEN CASE PACKING/IRON CASE PACKING
Material :
F53
PRESSURE :
1500# To 9000#
High Light :
90 Deg Forged Elbow, 1500# Forged Elbow, OD 4" Forged Elbow
OD :
1/8'' To 4''
STANDARD :
ASTM A182
name :
ASME B16.11 ASTM A182 F53 Forged Elbow 90 Deg NPT 3000# 1/2'' To 4''
Description

ASTM A182 F53 Forged Elbow 90deg NPT 3000# 1/2'' To 4'' ASME B16.11

Yuhong Group is one of the biggest projects pipeline products supplier in China. Our products contain steel pipe/tube,fittings, flanges. With development more than 30 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.

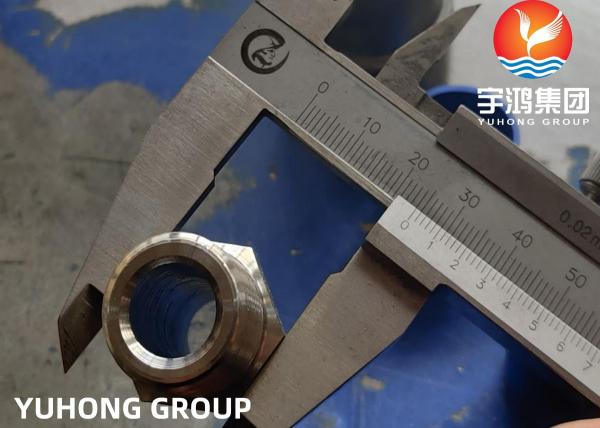

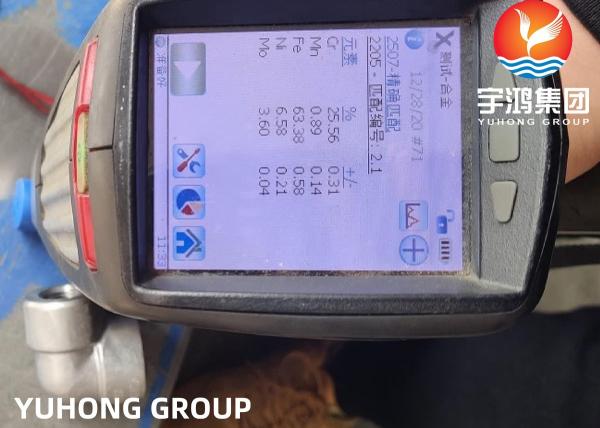

FORGED 90 DEG SOCKET WELD ELBOW DIMENSIONS NPS 1/2 to 4 ASTM A182 F53

Socket Weld Elbows – NPS 1/2 to 4 – 90° – 3000 LBS – ASME B16.11

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
A
B J D C G 90° 45°
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 15.5 11.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 19.5 12.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 22 14
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 27 17
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 32 21
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 38 25
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 41.5 29
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 57.5 31.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 66.5 41.5

Socket Weld Elbows – NPS 1/2 to 2 – 90° – 6000 LBS – ASME B16.11

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
A
B J D C G 90° 45°
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80 19.5 12.5
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55 22.5 14.5
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35 27 17
1¼ 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35 32 21
1½ 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15 38 25
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75 41 29

ASME/ANSI B16.11 - 2001 - Forged Steel Fittings, Socket-Welding and Threaded

This Standard covers ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded.
