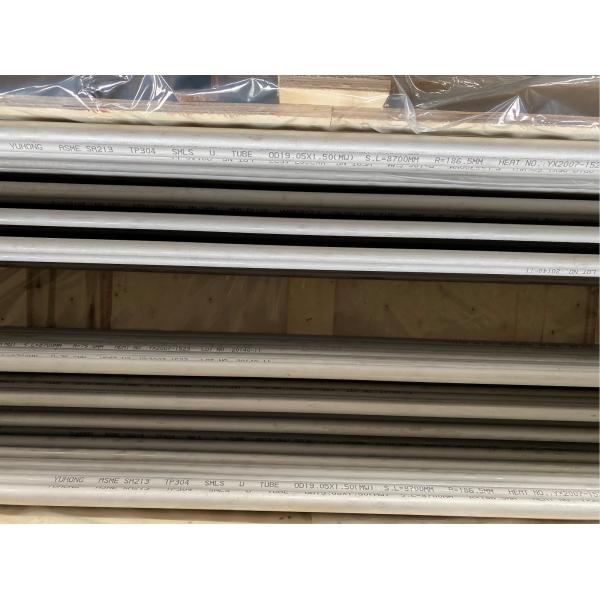

Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
Specifications
Brand Name :
YUHONG
Model Number :
TP304, TP304L ,TP304H, TP304N, TP309S, TP310S, TP310H, TP316, TP316L, TP316H, TP316Ti, TP316LN , TP317, TP317L , TP321, TP321H, TP347, TP347H, TP904L, S31254 , S30815
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China
MOQ :
100KGS
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1500 tons per month
Delivery Time :
10days->
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material Grade :
TP304, TP304L ,TP304H, TP304N, TP309S, TP310S, TP310H, TP316, TP316L, TP316H, TP316Ti, TP316LN , TP317, TP317L , TP321, TP321H, TP347, TP347H, TP904L, S31254 , S30815
Standard :
ASTM A213, ASME SA213, ASTM A269 , ASTM A270, ASTM A688
Surface :
Pickled and Annealed, Bright Annealed , Polished
NDT :
HT, ET, UT , PT
Packing :
Ply Wooden Case
Application :
Boiler , Heat Exchange , Heating , Cooling , Condenser , Pressure Vessel Heating , Chemical Reactor
Description

ASME SA213 TP304 Stainless Steel Seamless U Bend Tube for Heat Exchange application


Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 32 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.


Standard Specification:
ASTM A213 / A213M - 11a:Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A511 / A511M - 12:Standard Specification for Seamless Stainless Steel Mechanical Tubing
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
DIN 17456-2010:GENERAL PUROSE SEAMLESS CIRCULAR STAINLESS STEEL TUBES.
DIN 17458-2010:Seamless Circular of Austenitic Stainless Steel Tube
EN10216-5 CT 1/2 : Stainless Steel Seamless Pipe & Tube
GOST 9941-81:SEAMLESS COLD- AND WARM-WORKED TUBES MADE OF CORROSION RESISTANT STEEL.
Others like BS, JIS standard or can supply


Material Grade:

American Standard

Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

GOST

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ



Size Range:

Production

Outside Diameter

Wall Thickness

Seamless Pipe

6.00mm to 830mm

0.5mm to 48mm



Final Finishing:
Solution Annealed & Pickled

Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

Stainless Steel Seamless ASME SA213 TP304 U Bend Tube
